| CPU2006 license: | 55 | Test date: | Feb-2012 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2012 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2012 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5-2609 |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 10 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-12800R-11, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP2 (x86_64) 3.0.13-0.9-default |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (add definition here) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

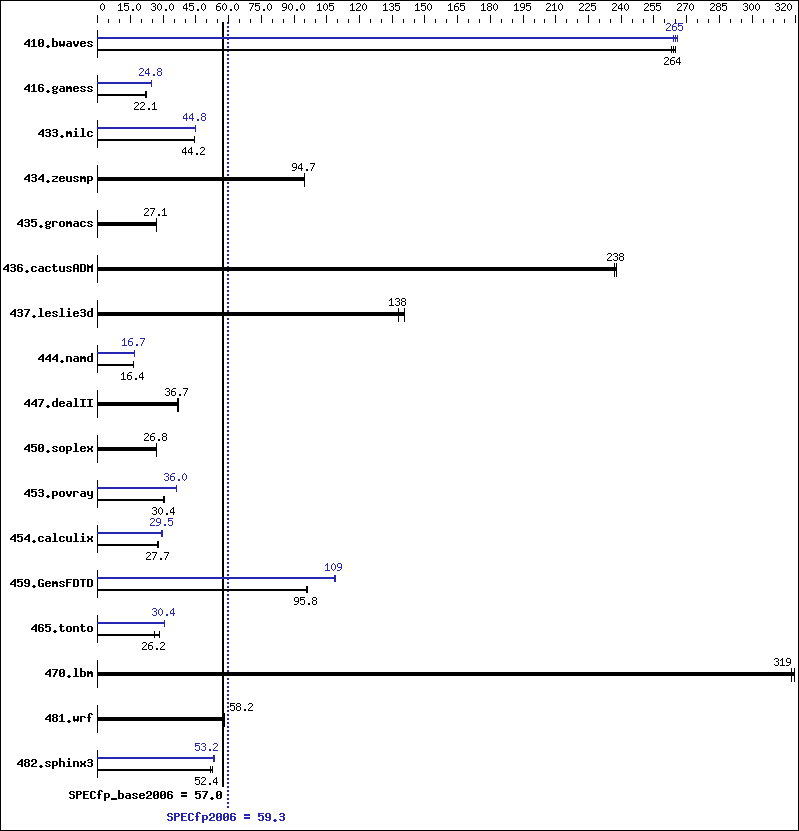

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 51.7 | 263 | 51.5 | 264 | 51.3 | 265 | 51.5 | 264 | 51.3 | 265 | 51.1 | 266 |
| 416.gamess | 884 | 22.1 | 886 | 22.1 | 881 | 22.2 | 789 | 24.8 | 791 | 24.8 | 792 | 24.7 |
| 433.milc | 208 | 44.2 | 208 | 44.2 | 208 | 44.2 | 205 | 44.8 | 205 | 44.8 | 205 | 44.8 |
| 434.zeusmp | 96.1 | 94.7 | 96.1 | 94.7 | 96.1 | 94.7 | 96.1 | 94.7 | 96.1 | 94.7 | 96.1 | 94.7 |
| 435.gromacs | 265 | 26.9 | 263 | 27.1 | 264 | 27.1 | 265 | 26.9 | 263 | 27.1 | 264 | 27.1 |
| 436.cactusADM | 50.3 | 238 | 50.5 | 237 | 50.3 | 238 | 50.3 | 238 | 50.5 | 237 | 50.3 | 238 |
| 437.leslie3d | 66.8 | 141 | 68.2 | 138 | 68.2 | 138 | 66.8 | 141 | 68.2 | 138 | 68.2 | 138 |
| 444.namd | 489 | 16.4 | 489 | 16.4 | 490 | 16.4 | 482 | 16.7 | 482 | 16.7 | 482 | 16.7 |
| 447.dealII | 312 | 36.7 | 313 | 36.6 | 311 | 36.8 | 312 | 36.7 | 313 | 36.6 | 311 | 36.8 |
| 450.soplex | 311 | 26.8 | 311 | 26.8 | 311 | 26.8 | 311 | 26.8 | 311 | 26.8 | 311 | 26.8 |
| 453.povray | 173 | 30.7 | 175 | 30.3 | 175 | 30.4 | 148 | 35.9 | 148 | 36.0 | 148 | 36.0 |
| 454.calculix | 296 | 27.9 | 298 | 27.7 | 300 | 27.5 | 278 | 29.6 | 280 | 29.5 | 280 | 29.5 |
| 459.GemsFDTD | 111 | 95.8 | 111 | 95.8 | 111 | 96.0 | 97.6 | 109 | 97.8 | 109 | 97.4 | 109 |
| 465.tonto | 376 | 26.2 | 346 | 28.5 | 377 | 26.1 | 323 | 30.4 | 324 | 30.4 | 324 | 30.4 |
| 470.lbm | 43.0 | 319 | 43.0 | 319 | 43.2 | 318 | 43.0 | 319 | 43.0 | 319 | 43.2 | 318 |
| 481.wrf | 192 | 58.3 | 192 | 58.2 | 194 | 57.6 | 192 | 58.3 | 192 | 58.2 | 194 | 57.6 |
| 482.sphinx3 | 371 | 52.5 | 372 | 52.4 | 376 | 51.9 | 365 | 53.3 | 368 | 53.0 | 367 | 53.2 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
System Profile set to Custom CPU Power Management set to Maximum Performance Memory Frequency set to Maximum Performance Turbo Boost set to Enabled C States/C1E set to Enabled Sysinfo program /root/CPU2006-1.2/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on linux-8itg Wed Feb 15 02:08:45 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E5-2609 0 @ 2.40GHz 2 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 4 physical 0: cores 0 1 2 3 physical 1: cores 0 1 2 3 cache size : 10240 KB From /proc/meminfo MemTotal: 132122692 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d SUSE Linux Enterprise Server 11 (x86_64) From /etc/*release* /etc/*version* SuSE-release: SUSE Linux Enterprise Server 11 (x86_64) VERSION = 11 PATCHLEVEL = 2 uname -a: Linux linux-8itg 3.0.13-0.9-default #1 SMP Mon Jan 16 17:33:03 UTC 2012 (54ddfaf) x86_64 x86_64 x86_64 GNU/Linux run-level 3 Feb 14 17:47 last=S SPEC is set to: /root/CPU2006-1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext3 455G 59G 373G 14% / Additional information from dmidecode: (End of data from sysinfo program)
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/root/CPU2006-1.2/libs/32:/root/CPU2006-1.2/libs/64" OMP_NUM_THREADS = "8" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xAVX -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
| 416.gamess: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel |
| 465.tonto: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
