SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan YR190-B8228,
AMD Opteron 4284

SPECint®2006 = 33.6

CPU2006 license: 49 Test date: Jan-2012
Test sponsor: Advanced Micro Devices Hardware Availability: Nov-2011
Tested by: Advanced Micro Devices Software Availability: Jul-2011

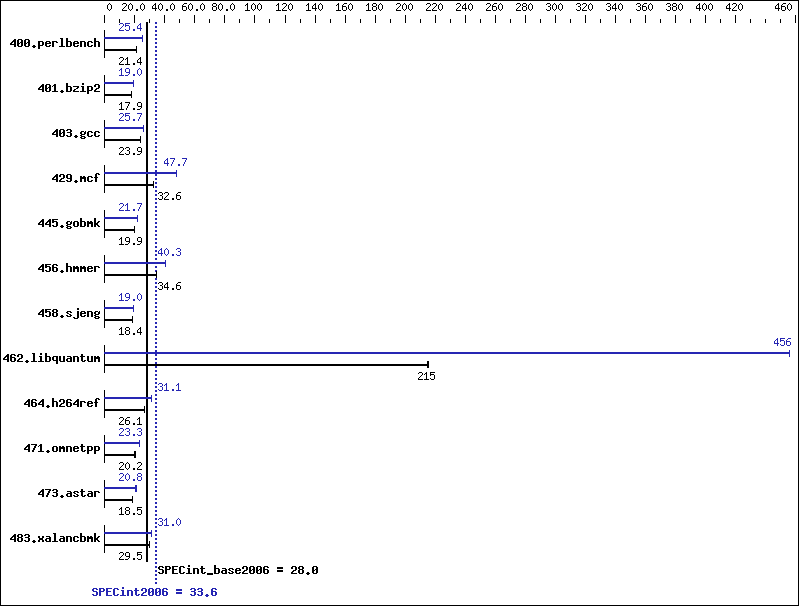

Benchmark results graph
Hardware
CPU Name: AMD Opteron 4284
CPU Characteristics: AMD Turbo CORE technology up to 3.70 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 256 KB I on chip per chip,
64 KB I shared / 2 cores;
16 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (4 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem: 1 x 128 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 6.1,
Kernel 2.6.32-131.0.15.el6.x86_64
Compiler: C/C++: Version 4.2.5.2 of x86 Open64 Compiler
Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 10.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 456   21.4 457   21.4 457   21.4 384   25.4 385   25.3 384   25.4
401.bzip2 539   17.9 539   17.9 539   17.9 508   19.0 508   19.0 508   19.0
403.gcc 338   23.8 337   23.9 338   23.9 313   25.7 314   25.7 314   25.7
429.mcf 280   32.6 280   32.5 280   32.6 191   47.8 191   47.7 191   47.7
445.gobmk 527   19.9 527   19.9 527   19.9 483   21.7 483   21.7 483   21.7
456.hmmer 270   34.6 270   34.6 270   34.6 231   40.3 231   40.3 231   40.3
458.sjeng 657   18.4 657   18.4 657   18.4 636   19.0 636   19.0 636   19.0
462.libquantum 96.6 215   96.2 215   96.5 215   45.5 456   45.5 456   45.4 456
464.h264ref 847   26.1 847   26.1 847   26.1 711   31.1 711   31.1 711   31.1
471.omnetpp 311   20.1 310   20.2 310   20.2 267   23.4 269   23.3 268   23.3
473.astar 380   18.5 380   18.5 380   18.5 338   20.8 338   20.8 337   20.8
483.xalancbmk 234   29.5 233   29.6 234   29.5 223   31.0 222   31.0 223   31.0

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf
cpuspeed stop was used to set the CPU frequency to its maximum.

Set vm/nr_hugepages=2000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-speed-libs-revA/32:/root/work/cpu2006v1.2/amd1104-speed-libs-revA/64"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15"
O64_OMP_SPIN_COUNT = "800000"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6220 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=bdver1   -Ofast   -CG:local_sched_alg=1   -CG:p2align=0   -INLINE:aggressive=on   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m   -LNO:prefetch=2

C++ benchmarks:

 -march=bdver1   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -D__OPEN64_FAST_SET   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -LNO:opt=0   -IPA:plimit=20000   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -WOPT:sib=on   -CG:local_sched_alg=1   -CG:load_exe=0   -CG:unroll_fb_req=on   -CG:movext_icmp=off   -HP:bdt=2m:heap=2m
401.bzip2:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=2   -LNO:pf2=0   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -CG:cmp_peep=on   -CG:pre_minreg_level=2   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200   -WOPT:sib=on
429.mcf:  -march=bdver1   -O3   -OPT:unroll_times_max=5   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:unroll_size=256   -OPT:unroll_times_max=8   -OPT:keep_ext=on   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:ignore_feedback=off   -WOPT:if_conv=2   -HP:bdt=2m:heap=2m
456.hmmer:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=2   -OPT:alias=disjoint   -OPT:unroll_times_max=16   -OPT:unroll_size=512   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:cflow=0   -CG:cmp_peep=on   -CG:pre_local_sched=off   -HP:bdt=2m:heap=2m
458.sjeng:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:ptr_load_use=0   -CG:divrem_opt=on   -CG:movext_icmp=off   -CG:locs_best=on   -CG:p2align=1   -LNO:full_unroll=10   -IPA:pu_reorder=2   -HP:bdt=2m:heap=2m   -WOPT:sib=on
462.libquantum:  -march=bdver1   -Ofast   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -LNO:prefetch=2   -LNO:pf2=0   -CG:local_sched_alg=1   -INLINE:aggressive=on   -IPA:plimit=8000   -IPA:small_pu=100   -HP:bdt=2m:heap=2m,limit=450   -apo
464.h264ref:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:unroll_size=256   -OPT:unroll_times_max=2   -IPA:plimit=20000   -OPT:alias=disjoint   -CG:ptr_load_use=0   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  -march=bdver1   -Ofast   -D__OPEN64_FAST_SET   -CG:gcm=off   -INLINE:aggressive=on   -WOPT:if_conv=0   -WOPT:sib=on   -m32   -HP:bdt=2m:heap=2m
473.astar:  -march=bdver1   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -WOPT:sib=on   -CG:divrem_opt=on   -CG:p2align=0   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=bdver1   -Ofast   -LNO:prefetch=2   -OPT:unroll_size=512   -OPT:unroll_times_max=8   -D__OPEN64_FAST_SET   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -CG:local_sched=off   -CG:p2align=0   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-10/lib -lsmartheap

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA.xml.
