CPU2006 license: | 9019 | Test date: | Jan-2012 |
---|---|---|---|
Test sponsor: | Cisco Systems | Hardware Availability: | May-2011 |
Tested by: | Cisco Systems | Software Availability: | Oct-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7-2803 |
CPU Characteristics: | |
CPU MHz: | 1733 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 18 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 512 GB (32 x 16 GB 4Rx4 PC3-8500R-9, ECC, running at 800 MHz) |
Disk Subsystem: | 600 GB SAS 10K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.1 (Santiago) 2.6.32-131.0.15.el6.x86_64 |
Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux; Fortran: Version 12.1.0.225 of Intel Fortran Studio XE for Linux |
Auto Parallel: | No |
File System: | ext4 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

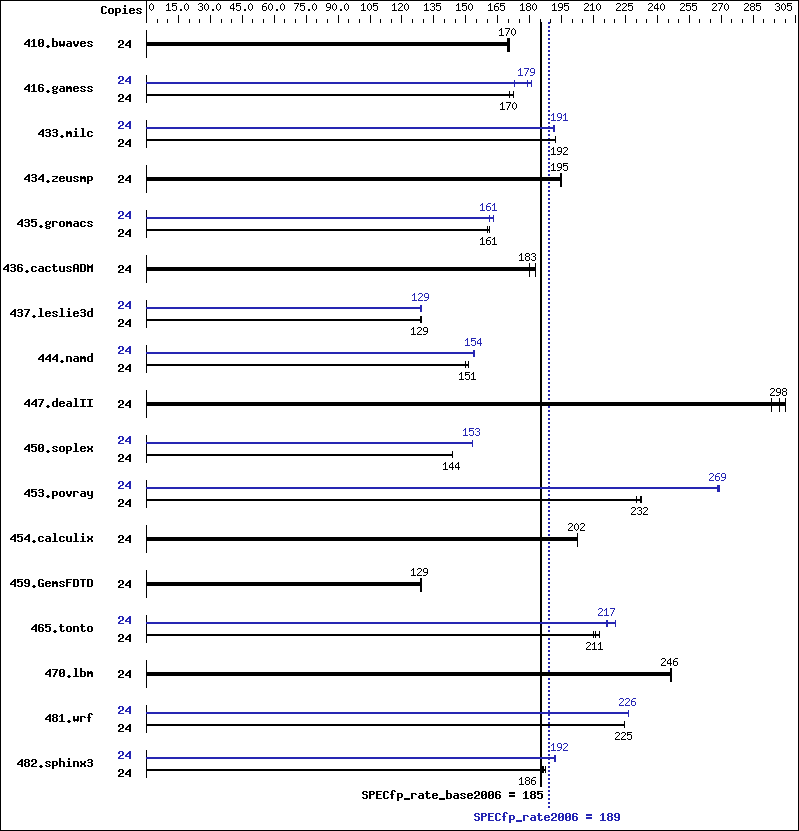

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1912 | 171 | 1917 | 170 | 1922 | 170 | 24 | 1912 | 171 | 1917 | 170 | 1922 | 170 |
416.gamess | 24 | 2759 | 170 | 2758 | 170 | 2723 | 173 | 24 | 2628 | 179 | 2718 | 173 | 2597 | 181 |
433.milc | 24 | 1147 | 192 | 1146 | 192 | 1147 | 192 | 24 | 1151 | 191 | 1151 | 191 | 1151 | 191 |
434.zeusmp | 24 | 1123 | 194 | 1120 | 195 | 1122 | 195 | 24 | 1123 | 194 | 1120 | 195 | 1122 | 195 |
435.gromacs | 24 | 1064 | 161 | 1069 | 160 | 1064 | 161 | 24 | 1053 | 163 | 1062 | 161 | 1065 | 161 |
436.cactusADM | 24 | 1569 | 183 | 1594 | 180 | 1568 | 183 | 24 | 1569 | 183 | 1594 | 180 | 1568 | 183 |
437.leslie3d | 24 | 1753 | 129 | 1747 | 129 | 1751 | 129 | 24 | 1749 | 129 | 1755 | 129 | 1749 | 129 |
444.namd | 24 | 1284 | 150 | 1274 | 151 | 1273 | 151 | 24 | 1251 | 154 | 1253 | 154 | 1250 | 154 |
447.dealII | 24 | 923 | 298 | 935 | 294 | 914 | 300 | 24 | 923 | 298 | 935 | 294 | 914 | 300 |
450.soplex | 24 | 1392 | 144 | 1395 | 144 | 1395 | 144 | 24 | 1308 | 153 | 1308 | 153 | 1307 | 153 |
453.povray | 24 | 549 | 232 | 550 | 232 | 555 | 230 | 24 | 475 | 269 | 476 | 268 | 475 | 269 |
454.calculix | 24 | 978 | 202 | 978 | 202 | 979 | 202 | 24 | 978 | 202 | 978 | 202 | 979 | 202 |
459.GemsFDTD | 24 | 1979 | 129 | 1973 | 129 | 1981 | 129 | 24 | 1979 | 129 | 1973 | 129 | 1981 | 129 |
465.tonto | 24 | 1123 | 210 | 1110 | 213 | 1119 | 211 | 24 | 1091 | 217 | 1073 | 220 | 1093 | 216 |
470.lbm | 24 | 1339 | 246 | 1337 | 247 | 1339 | 246 | 24 | 1339 | 246 | 1337 | 247 | 1339 | 246 |
481.wrf | 24 | 1193 | 225 | 1194 | 225 | 1194 | 225 | 24 | 1184 | 226 | 1184 | 226 | 1185 | 226 |
482.sphinx3 | 24 | 2494 | 188 | 2508 | 186 | 2515 | 186 | 24 | 2437 | 192 | 2437 | 192 | 2439 | 192 |
The numactl mechanism was used to bind copies to processors. The config file option 'submit' was used to generate numactl commands to bind each copy to a specific processor. For details, please see the config file.
Stack size set to unlimited using "ulimit -s unlimited"
Sysinfo program /opt/cpu2006/config/sysinfo.rev6800 $Rev: 6800 $ $Date:: 2011-10-11 #$ 6f2ebdff5032aaa42e583f96b07f99d3 running on localhost.localdomain Mon Jan 23 18:49:36 2012 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Xeon(R) CPU E7- 2803 @ 1.73GHz 2 "physical id"s (chips) 24 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 6 siblings : 12 physical 0: cores 0 1 2 18 24 25 physical 1: cores 0 1 2 18 24 25 cache size : 18432 KB From /proc/meminfo MemTotal: 529189684 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.1 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux localhost.localdomain 2.6.32-131.0.15.el6.x86_64 #1 SMP Tue May 10 15:42:40 EDT 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 3 Jan 23 18:47 SPEC is set to: /opt/cpu2006 Filesystem Type Size Used Avail Use% Mounted on /dev/sda1 ext4 550G 5.5G 516G 2% / Additional information from dmidecode: (End of data from sysinfo program)
Environment variables set by runspec before the start of the run: LD_LIBRARY_PATH = "/opt/cpu2006/libs/32:/opt/cpu2006/libs/64" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages disabled with: echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled Filesystem page cache cleared with: echo 1> /proc/sys/vm/drop_caches runspec command invoked through numactl i.e.: numactl --interleave=all runspec <etc>
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-p32 -ansi-alias -opt-mem-layout-trans=3 |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-mem-layout-trans=3 -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -opt-mem-layout-trans=3(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
