SPEC® CFP2006 Result

Supermicro (Test Sponsor: Advanced Micro Devices)

Supermicro A+ Server 1022G-NTF,
AMD Opteron 6272

SPECfp®2006 = 41.9

SPECfp_base2006 = 34.1

CPU2006 license:	49	Test date:	Dec-2011
Test sponsor:	Advanced Micro Devices	Hardware Availability:	Nov-2011
Tested by:	Advanced Micro Devices	Software Availability:	Jul-2011

Hardware
CPU Name:	AMD Opteron 6272
CPU Characteristics:	AMD Turbo CORE technology up to 3.00 GHz
CPU MHz:	2100
FPU:	Integrated
CPU(s) enabled:	32 cores, 2 chips, 16 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	512 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core
Secondary Cache:	16 MB I+D on chip per chip, 2 MB shared / 2 cores
L3 Cache:	16 MB I+D on chip per chip, 8 MB shared / 8 cores
Other Cache:	None
Memory:	64 GB (8 x 8 GB 2Rx4 PC3-12800R-11, ECC)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64
Compiler:	C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

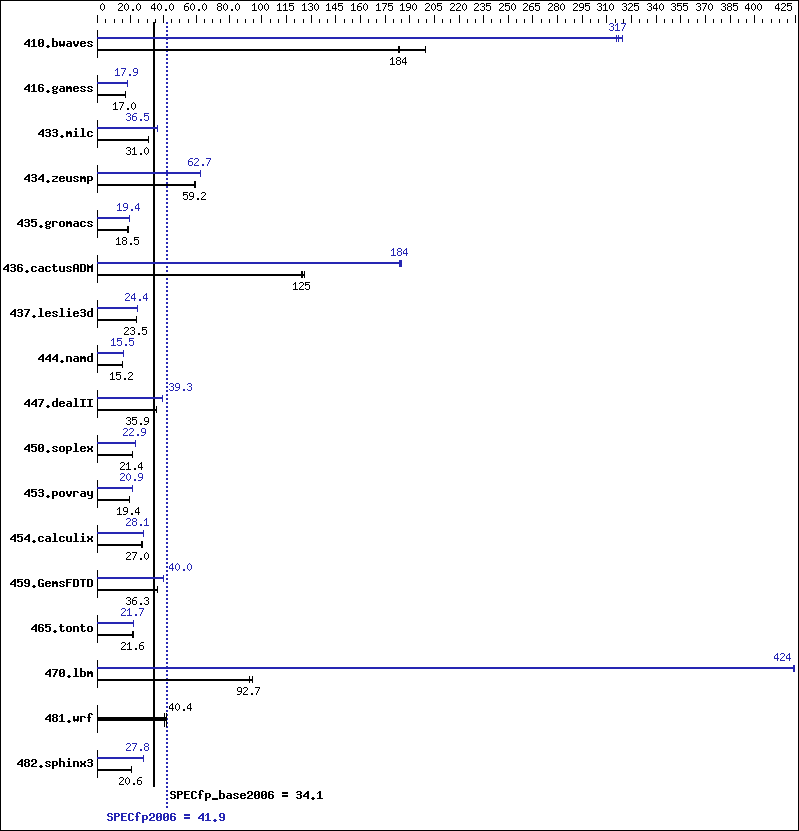

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	68.1	200	74.0	184	74.2	183	42.9	317	42.6	319	43.0	316
416.gamess	1154	17.0	1157	16.9	1155	17.0	1095	17.9	1095	17.9	1095	17.9
433.milc	297	30.9	296	31.0	296	31.0	251	36.5	251	36.6	252	36.5
434.zeusmp	155	58.8	154	59.2	152	59.8	145	62.7	145	62.7	145	62.6
435.gromacs	382	18.7	390	18.3	387	18.5	369	19.4	369	19.4	369	19.4
436.cactusADM	95.9	125	94.8	126	96.3	124	64.6	185	65.0	184	64.8	184
437.leslie3d	395	23.8	402	23.4	401	23.5	386	24.4	387	24.3	386	24.4
444.namd	528	15.2	528	15.2	528	15.2	516	15.5	516	15.5	516	15.5
447.dealII	319	35.9	319	35.9	319	35.9	291	39.3	291	39.3	291	39.3
450.soplex	389	21.4	389	21.4	389	21.4	364	22.9	365	22.9	365	22.9
453.povray	274	19.4	274	19.4	274	19.4	255	20.9	255	20.9	255	20.9
454.calculix	310	26.6	306	27.0	305	27.1	294	28.1	294	28.1	293	28.1
459.GemsFDTD	294	36.1	293	36.3	290	36.6	266	39.9	265	40.0	265	40.0
465.tonto	456	21.6	459	21.4	455	21.6	454	21.7	453	21.7	454	21.7
470.lbm	148	92.7	149	92.5	146	94.2	32.4	424	32.4	424	32.4	424
481.wrf	276	40.4	277	40.4	268	41.7	276	40.4	277	40.4	268	41.7
482.sphinx3	946	20.6	947	20.6	948	20.6	701	27.8	701	27.8	701	27.8

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set transparent_hugepage=never as a boot parameter in /boot/grub/menu.lst
Set kernel/randomize_va_space=0 in /etc/sysctl.conf
cpuspeed stop was used to set the CPU frequency to its maximum.

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/root/work/cpu2006v1.2/amd1104-speed-libs-revA/32:/root/work/cpu2006v1.2/amd1104-speed-libs-revA/64"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31"
O64_OMP_SPIN_COUNT = "800000"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on a system with 2x AMD Opteron 6220 chips + 64GB Memory using RHEL 6.1

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=bdver1 -Ofast -CG:movnti=1 -CG:locs_best=on -HP:bdt=2m:heap=2m -IPA:plimit=7000 -IPA:callee_limit=1200 -OPT:struct_array_copy=2 -OPT:alias=field_sensitive
470.lbm:	-march=bdver1 -Ofast -mso -apo -CG:sse_cse_regs=0 -LNO:prefetch_ahead=4 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:compute_to=on -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -OPT:keep_ext=on -OPT:alias=restricted -m3dnow -IPA:inline=off
482.sphinx3:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:loop_model_simd=on -LNO:simd_rm_unity_remainder=on -OPT:malloc_alg=2 -CG:cmp_peep=on -CG:local_sched_alg=2 -CG:use_incdec=off -INLINE:aggressive=on -WOPT:sib=on -HP

C++ benchmarks:

444.namd:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=bdver1 -Ofast -LNO:simd=0 -D__OPEN64_FAST_SET -static -INLINE:aggressive=on -OPT:alias=disjoint -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m
450.soplex:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:RO=1 -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -fno-exceptions -CG:p2align=0 -m32 -HP:bdt=2m:heap=2m -WOPT:sib=on
453.povray:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:pre_local_sched=off -INLINE:aggressive=on -HP:bdt=2m:heap=2m -OPT:transform=2 -OPT:alias=disjoint -WOPT:aggcm=0

Fortran benchmarks:

410.bwaves:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch=2 -LNO:pf2=0 -LNO:prefetch_ahead=3 -LNO:ignore_feedback=off -LNO:fu=4 -LNO:loop_model_simd=on -LNO:simd_rm_unity_remainder=on -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on -CG:p2align=0
416.gamess:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:simd=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -OPT:unroll_times_max=2 -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m -WOPT:sib=on
434.zeusmp:	-march=bdver1 -Ofast -apo -LNO:blocking=off -LNO:interchange=off -LNO:fusion_peeling_limit=0 -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -CG:compute_to=on -GRA:prioritize_by_density=on -HP:bdt=2m:heap=2m
437.leslie3d:	-march=bdver1 -Ofast -LNO:prefetch=2 -LNO:blocking=off -CG:interior_ptrs=on -OPT:unroll_size=256 -GRA:prioritize_by_density=on -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=bdver1 -Ofast -OPT:unroll_size=0 -LNO:fission=2 -CG:load_exe=0 -CG:local_sched_alg=2 -HP -apo
465.tonto:	-march=bdver1 -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -CG:local_sched_alg=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP:bdt=2m:heap=2m -CG:locs_shallow_depth=1 -CG:load_exe=0 -WOPT:sib=on -apo
454.calculix:	-march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/x86-open64-425-flags-speed-revA.xml.
