SPEC® CINT2006 Result

Intel Corporation

Intel DH61WW motherboard (Intel Pentium G840)

SPECint®2006 = 35.0

SPECint_base2006 = 33.5

CPU2006 license:	13	Test date:	Dec-2011
Test sponsor:	Intel Corporation	Hardware Availability:	May-2011
Tested by:	Intel Corporation	Software Availability:	Sep-2011

Hardware
CPU Name:	Intel Pentium G840
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	3 MB I+D on chip per chip
Other Cache:	None
Memory:	4 GB (2 x 2 GB 2Rx8 PC3-10600U-9)
Disk Subsystem:	1 TB Seagate SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Microsoft Windows 7 Ultimate 6.1.7601 Service Pack 1 Build 7601
Compiler:	C/C++: Version 12.1.0.229 of Intel C++ Studio XE for Windows; Libraries: Version 15.00.30729.01 of Microsoft Visual Studio 2008 Professional SP1
Auto Parallel:	Yes
File System:	NTFS
System State:	Default
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap Library Version 9.01 from http://www.microquill.com/

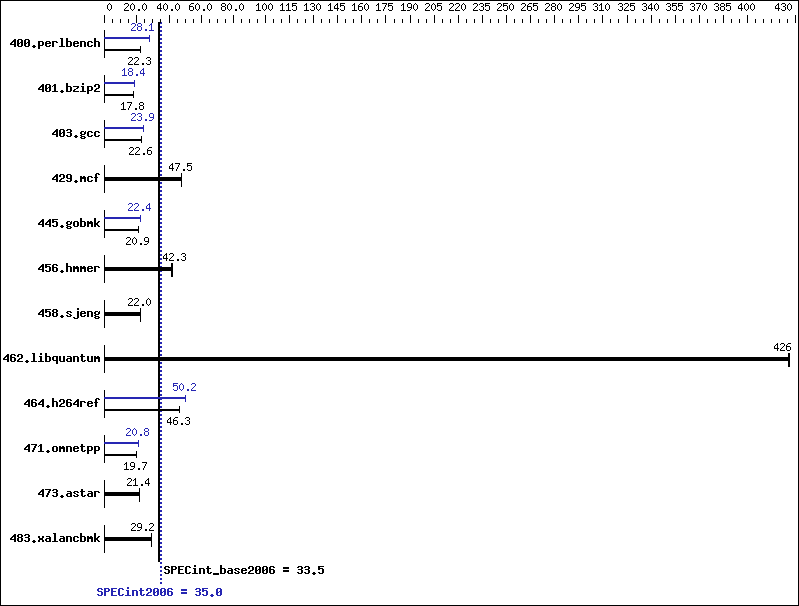

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	438	22.3	437	22.3	437	22.3	348	28.1	348	28.1	348	28.1
401.bzip2	545	17.7	541	17.8	541	17.8	524	18.4	524	18.4	525	18.4
403.gcc	357	22.6	357	22.6	357	22.6	336	23.9	337	23.9	337	23.9
429.mcf	192	47.6	192	47.5	192	47.5	192	47.6	192	47.5	192	47.5
445.gobmk	502	20.9	502	20.9	502	20.9	469	22.3	469	22.4	469	22.4
456.hmmer	223	41.8	221	42.3	221	42.3	223	41.8	221	42.3	221	42.3
458.sjeng	551	22.0	551	22.0	551	22.0	551	22.0	551	22.0	551	22.0
462.libquantum	48.7	426	48.6	426	48.6	426	48.7	426	48.6	426	48.6	426
464.h264ref	478	46.3	478	46.3	478	46.3	441	50.2	441	50.2	441	50.2
471.omnetpp	318	19.7	318	19.7	318	19.7	300	20.8	300	20.8	300	20.8
473.astar	328	21.4	328	21.4	328	21.4	328	21.4	328	21.4	328	21.4
483.xalancbmk	237	29.2	237	29.1	237	29.2	237	29.2	237	29.1	237	29.2

Compiler Invocation Notes

 ipsxe-comp-vars batch file invoked with intel64

Platform Notes

 Sysinfo program C:\SPEC12.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltE06995A30C92 Tue Dec 20 15:04:40 2011

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DH61WW__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 42 Stepping 7 GenuineIntel ~2800 Mhz
 BIOS Version  : Intel Corp. BEH6110H.86A.0016.2011.0118.1128, 1/18/2011
 Total Physical Memory: 4,004 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 2800
 Name          : Intel(R) Pentium(R) CPU G840 @ 2.80GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Base Portability Flags

400.perlbench:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64_X64 -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:	-DSPEC_CPU_P64
403.gcc:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
429.mcf:	-DSPEC_CPU_P64
445.gobmk:	-DSPEC_CPU_P64
456.hmmer:	-DSPEC_CPU_P64
458.sjeng:	-DSPEC_CPU_P64
462.libquantum:	-DSPEC_CPU_P64
464.h264ref:	-DSPEC_CPU_P64 -DWIN32 -DSPEC_CPU_NO_INTTYPES
471.omnetpp:	-DSPEC_CPU_P64 -DSPEC_CPU_WIN64
473.astar:	-DSPEC_CPU_P64
483.xalancbmk:	-DSPEC_CPU_P64 -Qoption,cpp,--no_wchar_t_keyword

Base Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

icl -Qvc9 -Qstd=c99

C++ benchmarks:

icl -Qvc9

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
401.bzip2:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias -Qauto-ilp32 /F512000000
403.gcc:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qauto-ilp32 /F512000000
429.mcf:	basepeak = yes
445.gobmk:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias -Qauto-ilp32 /F512000000
456.hmmer:	basepeak = yes
458.sjeng:	basepeak = yes
462.libquantum:	basepeak = yes
464.h264ref:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias -Qauto-ilp32 /F512000000

C++ benchmarks:

471.omnetpp:	-QxSSE4.2(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block -Qauto-ilp32 /F512000000 shlW64M.lib -link /FORCE:MULTIPLE
473.astar:	basepeak = yes
483.xalancbmk:	basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:

-Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.xml.
