SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DH61WW motherboard (Intel Pentium G630)

CPU2006 license: 13 Test date: Dec-2011
Test sponsor: Intel Corporation Hardware Availability: Sep-2011
Tested by: Intel Corporation Software Availability: Sep-2011

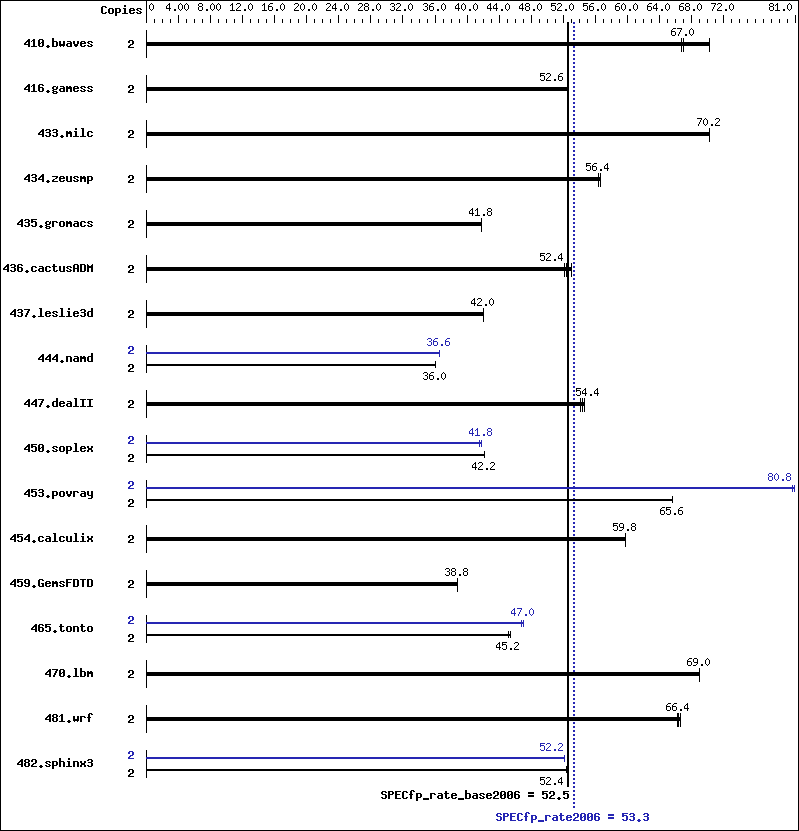

Benchmark results graph
Hardware
CPU Name: Intel Pentium G630
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 3 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2 x 2 GB 2Rx8 PC3-10600U-9, running at 1066
MHz and CL7)
Disk Subsystem: 1 TB Seagate SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows 7 Ultimate
6.1.7601 Service Pack 1 Build 7601
Compiler: C/C++: Version 12.1.0.229 of Intel C++ Studio XE
for Windows;
Fortran: Version 12.1.0.229 of Intel Fortran
Studio XE for Windows;
Libraries: Version 15.00.30729.01 of Microsoft
Visual Studio 2008 Professional SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 387 70.2 406 67.0 407 66.8 2 387 70.2 406 67.0 407 66.8
416.gamess 2 746 52.6 746 52.6 745 52.6 2 746 52.6 746 52.6 745 52.6
433.milc 2 262 70.2 261 70.2 261 70.2 2 262 70.2 261 70.2 261 70.2
434.zeusmp 2 322 56.4 323 56.4 322 56.6 2 322 56.4 323 56.4 322 56.6
435.gromacs 2 341 41.8 341 41.8 341 41.8 2 341 41.8 341 41.8 341 41.8
436.cactusADM 2 451 53.0 457 52.2 457 52.4 2 451 53.0 457 52.2 457 52.4
437.leslie3d 2 448 42.0 449 42.0 448 42.0 2 448 42.0 449 42.0 448 42.0
444.namd 2 445 36.0 445 36.0 445 36.0 2 437 36.6 437 36.6 437 36.6
447.dealII 2 420 54.6 422 54.2 421 54.4 2 420 54.6 422 54.2 421 54.4
450.soplex 2 396 42.2 396 42.2 396 42.2 2 401 41.6 400 41.8 400 41.8
453.povray 2 162 65.6 162 65.6 162 65.6 2 132 80.8 132 80.8 132 80.6
454.calculix 2 276 59.8 276 59.8 276 59.8 2 276 59.8 276 59.8 276 59.8
459.GemsFDTD 2 546 38.8 546 38.8 546 38.8 2 546 38.8 546 38.8 546 38.8
465.tonto 2 434 45.4 436 45.2 436 45.2 2 420 46.8 419 47.0 419 47.0
470.lbm 2 399 69.0 399 69.0 399 69.0 2 399 69.0 399 69.0 399 69.0
481.wrf 2 336 66.6 338 66.2 336 66.4 2 336 66.6 338 66.2 336 66.4
482.sphinx3 2 745 52.4 744 52.4 744 52.4 2 748 52.2 748 52.2 748 52.2

Compiler Invocation Notes

 ipsxe-comp-vars batch file invoked with intel64

Submit Notes


 Processes were bound to specific processors using the start command with the /affinity switch.
 The config file option 'submit' was used to generate the affinity mask for each process.

Platform Notes

 Sysinfo program C:\SPEC12.1/Docs/sysinfo
 $Rev: 6775 $ $Date:: 2011-08-16 #$ \8787f7622badcf24e01c368b1db4377c
 running on CltE06995A30CB5 Fri Dec 30 02:09:02 2011

 This section contains SUT (System Under Test) info as seen by
 some common utilities.  To remove or add to this section, see:
   http://www.spec.org/cpu2006/Docs/config.html#sysinfo

 Trying 'systeminfo'
 OS Name       : Microsoft Windows 7 Ultimate
 OS Version    : 6.1.7601 Service Pack 1 Build 7601
 System Manufacturer: INTEL_
 System Model  : DH61WW__
 Processor(s)  : 1 Processor(s) Installed.
      [01]: Intel64 Family 6 Model 42 Stepping 7 GenuineIntel ~2700 Mhz
 BIOS Version  : Intel Corp. BEH6110H.86A.0016.2011.0118.1128, 1/18/2011
 Total Physical Memory: 4,004 MB

 Trying 'wmic cpu get /value'
 DeviceID      : CPU0
 L2CacheSize   : 512
 L3CacheSize   : 3072
 MaxClockSpeed : 2700
 Name          : Intel(R) Pentium(R) CPU G630 @ 2.70GHz
 NumberOfCores : 2
 NumberOfLogicalProcessors: 2

 (End of data from sysinfo program)

Component Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply

General Notes

 Binaries compiled on a system with 1x Intel Core i7-860 CPU
 + 8GB memory using Windows 7 Enterprise 64-bit

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   -names:lowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   /names:lowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   /names:lowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  basepeak = yes
450.soplex:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic12.1-official-windows.20120117.xml.
