CPU2006 license: | 3 | Test date: | Oct-2011 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Nov-2011 |
Tested by: | Hewlett-Packard Company | Software Availability: | Jul-2011 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6212 |
CPU Characteristics: | AMD Turbo CORE technology up to 3.20 GHz |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 2 chips, 8 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 256 KB I on chip per chip, 64 KB I shared / 2 cores; 16 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 2 MB shared / 2 cores |
L3 Cache: | 16 MB I+D on chip per chip, 8 MB shared / 4 cores |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 2 x 146 GB 7.2 K SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 6.1, Kernel 2.6.32-131.0.15.el6.x86_64 |
Compiler: | C/C++/Fortran: Version 4.2.5.2 of x86 Open64 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

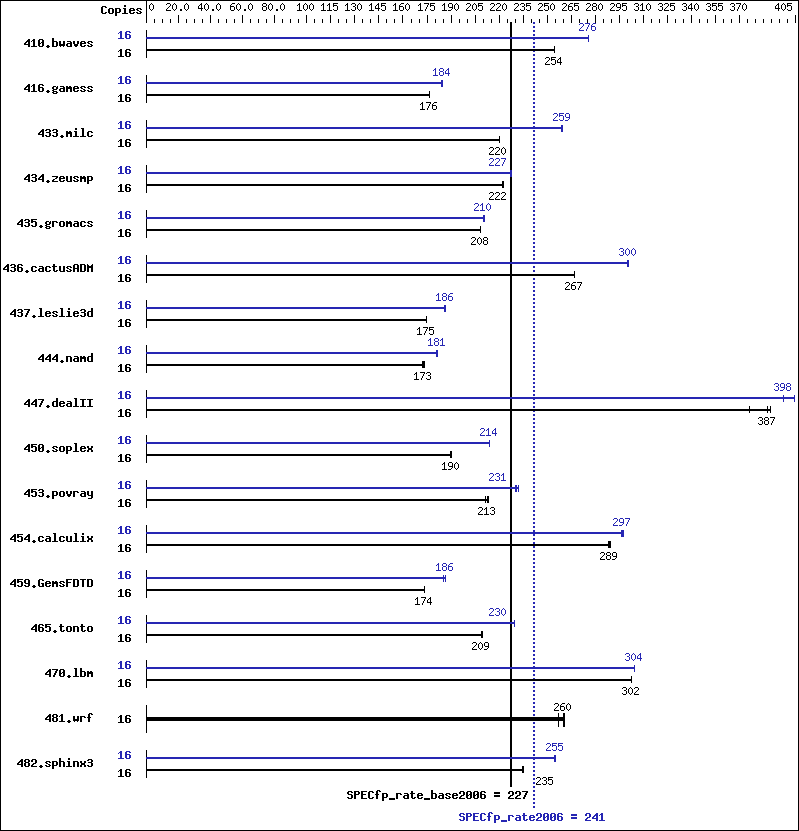

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 16 | 855 | 254 | 855 | 254 | 855 | 254 | 16 | 789 | 276 | 789 | 276 | 789 | 276 |
416.gamess | 16 | 1776 | 176 | 1776 | 176 | 1776 | 176 | 16 | 1697 | 185 | 1701 | 184 | 1699 | 184 |
433.milc | 16 | 668 | 220 | 667 | 220 | 668 | 220 | 16 | 567 | 259 | 566 | 259 | 567 | 259 |
434.zeusmp | 16 | 655 | 222 | 655 | 222 | 655 | 222 | 16 | 642 | 227 | 642 | 227 | 640 | 227 |
435.gromacs | 16 | 548 | 208 | 548 | 208 | 548 | 209 | 16 | 541 | 211 | 544 | 210 | 544 | 210 |
436.cactusADM | 16 | 716 | 267 | 717 | 267 | 717 | 267 | 16 | 637 | 300 | 636 | 300 | 637 | 300 |
437.leslie3d | 16 | 863 | 174 | 860 | 175 | 861 | 175 | 16 | 807 | 186 | 807 | 186 | 808 | 186 |
444.namd | 16 | 741 | 173 | 740 | 174 | 745 | 172 | 16 | 707 | 181 | 709 | 181 | 706 | 182 |
447.dealII | 16 | 470 | 389 | 473 | 387 | 487 | 376 | 16 | 453 | 404 | 460 | 398 | 461 | 397 |
450.soplex | 16 | 701 | 190 | 702 | 190 | 703 | 190 | 16 | 623 | 214 | 624 | 214 | 623 | 214 |
453.povray | 16 | 399 | 213 | 400 | 213 | 403 | 211 | 16 | 369 | 231 | 370 | 230 | 367 | 232 |
454.calculix | 16 | 458 | 288 | 456 | 289 | 457 | 289 | 16 | 445 | 296 | 443 | 298 | 444 | 297 |
459.GemsFDTD | 16 | 978 | 174 | 978 | 174 | 980 | 173 | 16 | 911 | 186 | 916 | 185 | 910 | 187 |
465.tonto | 16 | 752 | 209 | 753 | 209 | 753 | 209 | 16 | 686 | 229 | 686 | 230 | 685 | 230 |
470.lbm | 16 | 727 | 302 | 726 | 303 | 727 | 302 | 16 | 723 | 304 | 723 | 304 | 722 | 305 |
481.wrf | 16 | 696 | 257 | 688 | 260 | 685 | 261 | 16 | 696 | 257 | 688 | 260 | 685 | 261 |
482.sphinx3 | 16 | 1330 | 234 | 1326 | 235 | 1327 | 235 | 16 | 1222 | 255 | 1225 | 255 | 1224 | 255 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set "echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled" Set "kernel/randomize_va_space=0" in /etc/sysctl.conf Set vm/nr_hugepages=14336 in /etc/sysctl.conf Set "nodev /mnt/hugepages hugetlbfs defaults 0 0" in /etc/fstab
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "896" LD_LIBRARY_PATH = "/cpu2006/amd1104-rate-libs-revA/32:/cpu2006/amd1104-rate-libs-revA/64" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso |
-march=bdver1 -Ofast -static -CG:load_exe=0 -OPT:malloc_alg=1 -INLINE:aggressive=on -HP:bd=2m:heap=2m -D__OPEN64_FAST_SET |
-march=bdver1 -Ofast -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 -HP:bd=2m:heap=2m -mso |
-march=bdver1 -Ofast -OPT:malloc_alg=1 -HP:bd=2m:heap=2m -IPA:plimit=8000 -IPA:small_pu=100 -mso -LNO:blocking=off -OPT:rsqrt=2 -OPT:unroll_size=256 |
opencc |
openCC |
openf95 |
opencc openf95 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 |
436.cactusADM: | -DSPEC_CPU_LP64 -fno-second-underscore |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LP64 -fno-second-underscore |
482.sphinx3: | -DSPEC_CPU_LP64 |
435.gromacs: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m |
436.cactusADM: | -march=bdver1 -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:blocking=off -LNO:prefetch=2 -HP -CG:locs_shallow_depth=1 -CG:load_exe=0 -WOPT:sib=on |
454.calculix: | -march=bdver1 -Ofast -OPT:unroll_size=256 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m |
481.wrf: | basepeak = yes |
