| CPU2006 license: | 9016 | Test date: | Sep-2011 |
|---|---|---|---|
| Test sponsor: | ASUSTeK Computer Inc. | Hardware Availability: | Aug-2011 |
| Tested by: | ASUSTeK Computer Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5680 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx8 PC3L-10600E-9, ECC) |
| Disk Subsystem: | Seagate ST3500320AS 1 x 500 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

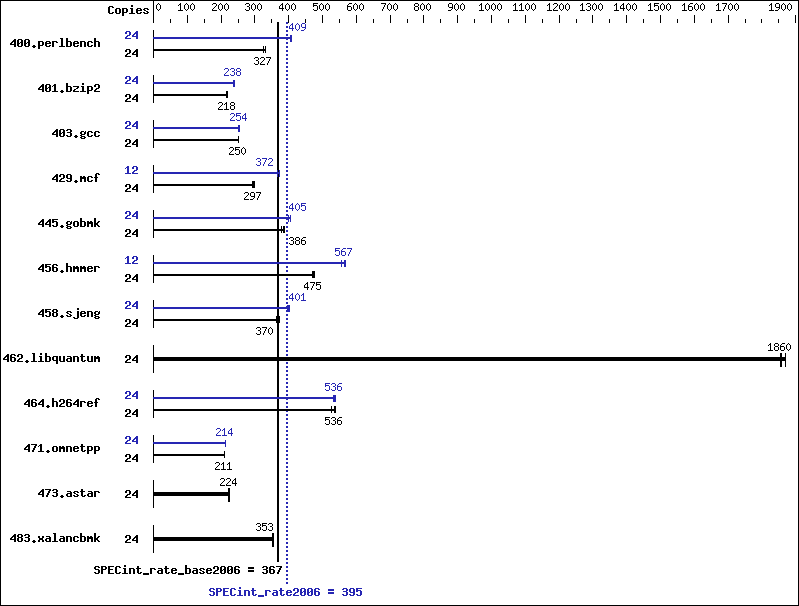

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 718 | 327 | 723 | 324 | 711 | 330 | 24 | 578 | 406 | 573 | 409 | 573 | 409 |
| 401.bzip2 | 24 | 1070 | 216 | 1063 | 218 | 1057 | 219 | 24 | 982 | 236 | 973 | 238 | 971 | 238 |
| 403.gcc | 24 | 768 | 252 | 771 | 250 | 773 | 250 | 24 | 760 | 254 | 761 | 254 | 764 | 253 |
| 429.mcf | 24 | 745 | 294 | 738 | 297 | 734 | 298 | 12 | 294 | 372 | 298 | 367 | 294 | 372 |
| 445.gobmk | 24 | 664 | 379 | 652 | 386 | 652 | 386 | 24 | 628 | 401 | 620 | 406 | 621 | 405 |
| 456.hmmer | 24 | 472 | 475 | 476 | 470 | 471 | 475 | 12 | 201 | 556 | 198 | 567 | 198 | 567 |
| 458.sjeng | 24 | 796 | 365 | 782 | 371 | 786 | 370 | 24 | 732 | 397 | 723 | 402 | 725 | 401 |
| 462.libquantum | 24 | 268 | 1850 | 266 | 1870 | 267 | 1860 | 24 | 268 | 1850 | 266 | 1870 | 267 | 1860 |
| 464.h264ref | 24 | 1011 | 525 | 991 | 536 | 987 | 538 | 24 | 996 | 533 | 984 | 540 | 991 | 536 |
| 471.omnetpp | 24 | 711 | 211 | 712 | 211 | 712 | 211 | 24 | 702 | 214 | 700 | 214 | 700 | 214 |
| 473.astar | 24 | 753 | 224 | 751 | 224 | 755 | 223 | 24 | 753 | 224 | 751 | 224 | 755 | 223 |
| 483.xalancbmk | 24 | 469 | 353 | 467 | 355 | 469 | 353 | 24 | 469 | 353 | 467 | 355 | 469 | 353 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
