CPU2006 license: | 3175 | Test date: | Sep-2011 |
---|---|---|---|
Test sponsor: | Huawei | Hardware Availability: | May-2011 |
Tested by: | Huawei | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5670 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
CPU MHz: | 2933 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 300 GB SAS, 15K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | C++: Version 12.0.1.116 of Intel 64 Compiler XE Build 20101116; Fortran: Version 12.0.1.116 of Intel 64 Compiler XE Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

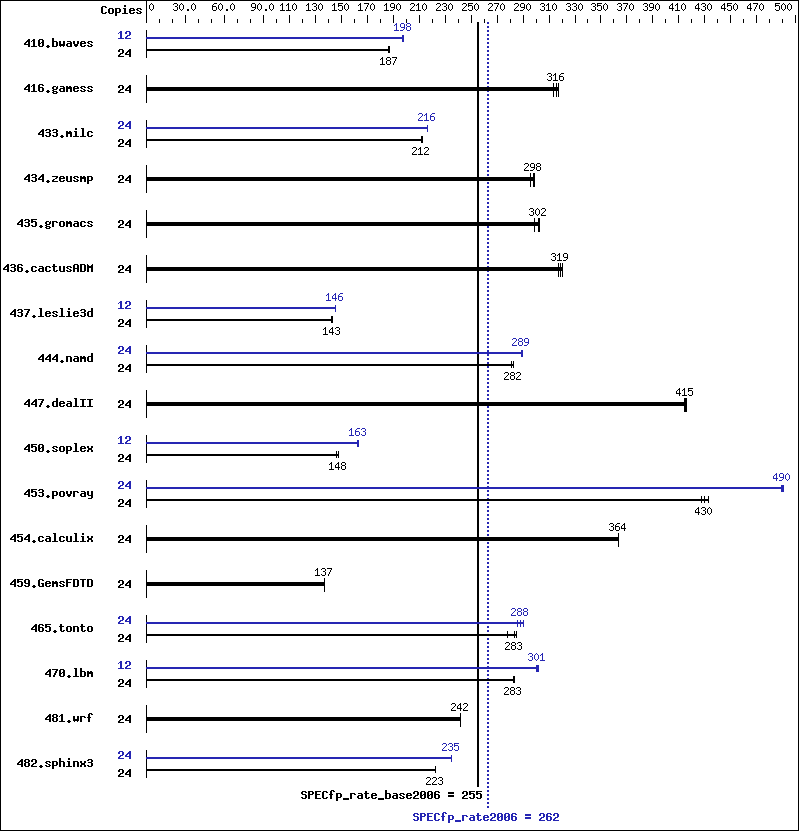

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1742 | 187 | 1751 | 186 | 1744 | 187 | 12 | 824 | 198 | 824 | 198 | 826 | 198 |
416.gamess | 24 | 1479 | 318 | 1487 | 316 | 1498 | 314 | 24 | 1479 | 318 | 1487 | 316 | 1498 | 314 |
433.milc | 24 | 1039 | 212 | 1038 | 212 | 1040 | 212 | 24 | 1019 | 216 | 1018 | 216 | 1019 | 216 |
434.zeusmp | 24 | 732 | 298 | 738 | 296 | 732 | 299 | 24 | 732 | 298 | 738 | 296 | 732 | 299 |
435.gromacs | 24 | 574 | 299 | 568 | 302 | 567 | 302 | 24 | 574 | 299 | 568 | 302 | 567 | 302 |
436.cactusADM | 24 | 904 | 317 | 895 | 320 | 899 | 319 | 24 | 904 | 317 | 895 | 320 | 899 | 319 |
437.leslie3d | 24 | 1582 | 143 | 1579 | 143 | 1579 | 143 | 12 | 777 | 145 | 775 | 146 | 774 | 146 |
444.namd | 24 | 680 | 283 | 684 | 281 | 682 | 282 | 24 | 665 | 289 | 666 | 289 | 666 | 289 |
447.dealII | 24 | 663 | 414 | 662 | 415 | 660 | 416 | 24 | 663 | 414 | 662 | 415 | 660 | 416 |
450.soplex | 24 | 1355 | 148 | 1367 | 146 | 1356 | 148 | 12 | 615 | 163 | 614 | 163 | 612 | 163 |
453.povray | 24 | 299 | 427 | 295 | 433 | 297 | 430 | 24 | 261 | 490 | 260 | 491 | 261 | 489 |
454.calculix | 24 | 544 | 364 | 544 | 364 | 545 | 364 | 24 | 544 | 364 | 544 | 364 | 545 | 364 |
459.GemsFDTD | 24 | 1855 | 137 | 1855 | 137 | 1857 | 137 | 24 | 1855 | 137 | 1855 | 137 | 1857 | 137 |
465.tonto | 24 | 828 | 285 | 834 | 283 | 849 | 278 | 24 | 819 | 288 | 826 | 286 | 813 | 291 |
470.lbm | 24 | 1164 | 283 | 1166 | 283 | 1165 | 283 | 12 | 547 | 302 | 548 | 301 | 548 | 301 |
481.wrf | 24 | 1109 | 242 | 1109 | 242 | 1108 | 242 | 24 | 1109 | 242 | 1109 | 242 | 1108 | 242 |
482.sphinx3 | 24 | 2101 | 223 | 2101 | 223 | 2101 | 223 | 24 | 1989 | 235 | 1991 | 235 | 1990 | 235 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 >/proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Data Reuse Optimization disabled in BIOS Setup.
Binaries compiled on RHEL 5.5
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | basepeak = yes |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
