| CPU2006 license: | 13 | Test date: | Aug-2011 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | May-2011 |
| Tested by: | Intel Corporation | Software Availability: | Sep-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i7-2600K |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.8 GHz |
| CPU MHz: | 3401 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600U-9) |
| Disk Subsystem: | 1 TB Seagate SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 6.1 2.6.32-131.0.15.el6.x86_64 |
| Compiler: | C/C++: Version 12.1.0.225 of Intel C++ Studio XE for Linux |
| Auto Parallel: | Yes |
| File System: | ext4 |
| System State: | Run level 5 (X11) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

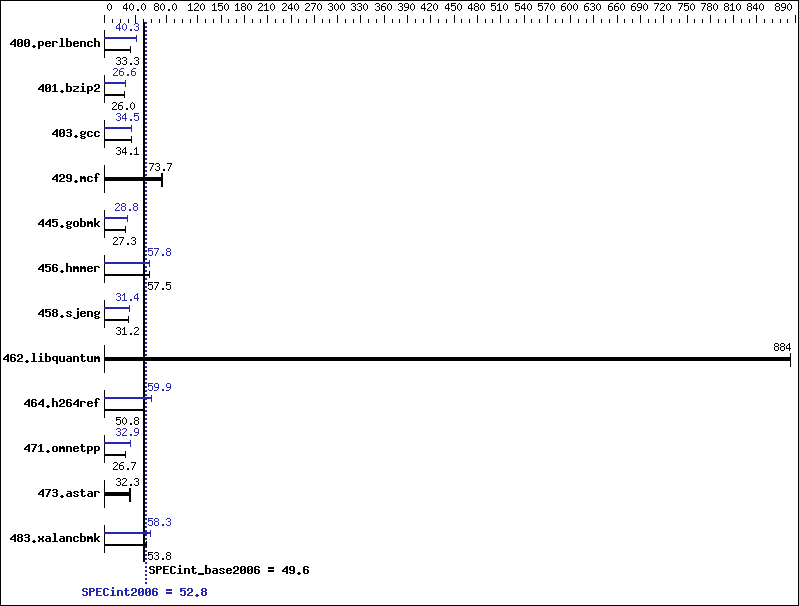

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 293 | 33.3 | 293 | 33.3 | 293 | 33.4 | 242 | 40.3 | 242 | 40.3 | 242 | 40.3 |
| 401.bzip2 | 377 | 25.6 | 371 | 26.0 | 371 | 26.0 | 363 | 26.6 | 363 | 26.6 | 363 | 26.6 |
| 403.gcc | 235 | 34.2 | 236 | 34.1 | 236 | 34.1 | 233 | 34.5 | 234 | 34.5 | 233 | 34.5 |
| 429.mcf | 123 | 74.1 | 124 | 73.7 | 124 | 73.5 | 123 | 74.1 | 124 | 73.7 | 124 | 73.5 |
| 445.gobmk | 384 | 27.3 | 384 | 27.3 | 384 | 27.3 | 364 | 28.8 | 364 | 28.8 | 364 | 28.8 |
| 456.hmmer | 162 | 57.5 | 162 | 57.5 | 162 | 57.5 | 161 | 57.8 | 161 | 57.8 | 162 | 57.8 |
| 458.sjeng | 388 | 31.2 | 388 | 31.2 | 388 | 31.2 | 385 | 31.4 | 386 | 31.4 | 386 | 31.4 |
| 462.libquantum | 23.5 | 883 | 23.5 | 884 | 23.4 | 884 | 23.5 | 883 | 23.5 | 884 | 23.4 | 884 |
| 464.h264ref | 436 | 50.8 | 440 | 50.3 | 435 | 50.8 | 369 | 59.9 | 370 | 59.9 | 371 | 59.7 |
| 471.omnetpp | 234 | 26.7 | 235 | 26.6 | 234 | 26.7 | 190 | 32.9 | 190 | 32.9 | 189 | 33.0 |
| 473.astar | 218 | 32.3 | 218 | 32.2 | 216 | 32.5 | 218 | 32.3 | 218 | 32.2 | 216 | 32.5 |
| 483.xalancbmk | 128 | 53.9 | 128 | 53.8 | 129 | 53.7 | 118 | 58.3 | 118 | 58.3 | 118 | 58.5 |
Operating System Notes
Stack size set to unlimited using "ulimit -s unlimited"
Platform Notes
Sysinfo program /home/spec/cpu2006.1.2/Docs/sysinfo $Rev: 6775 $ $Date:: 2011-08-16 #$ 8787f7622badcf24e01c368b1db4377c running on rhel61-rahul.sc.intel.com Fri Aug 19 09:55:05 2011 This section contains SUT (System Under Test) info as seen by some common utilities. To remove or add to this section, see: http://www.spec.org/cpu2006/Docs/config.html#sysinfo From /proc/cpuinfo model name : Intel(R) Core(TM) i7-2600K CPU @ 3.40GHz 1 "physical id"s (chips) 8 "processors" cores, siblings (Caution: counting these is hw and system dependent. The following excerpts from /proc/cpuinfo might not be reliable. Use with caution.) cpu cores : 4 siblings : 8 physical 0: cores 0 1 2 3 cache size : 8192 KB From /proc/meminfo MemTotal: 7966960 kB HugePages_Total: 0 Hugepagesize: 2048 kB /usr/bin/lsb_release -d Red Hat Enterprise Linux Server release 6.1 (Santiago) From /etc/*release* /etc/*version* redhat-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release: Red Hat Enterprise Linux Server release 6.1 (Santiago) system-release-cpe: cpe:/o:redhat:enterprise_linux:6server:ga:server uname -a: Linux rhel61-rahul.sc.intel.com 2.6.32-131.0.15.el6.x86_64 #1 SMP Tue May 10 15:42:40 EDT 2011 x86_64 x86_64 x86_64 GNU/Linux run-level 5 Aug 19 09:53 SPEC is set to: /home/spec/cpu2006.1.2 Filesystem Type Size Used Avail Use% Mounted on /dev/mapper/vg_rhel61rahul-lv_home ext4 862G 3.7G 815G 1% /home (End of data from sysinfo program)
Component Notes
Tested systems can be used with Shin-G ATX case, PC Power and Cooling 1200W power supply
General Notes
Environment variables set by runspec before the start of the run: KMP_AFFINITY = "granularity=fine,scatter" LD_LIBRARY_PATH = "/home/spec/cpu2006.1.2/smartheap:/home/spec/cpu2006.1.2/ic12.1-libs/ia32/:/home/spec/cpu2006.1.2/ic12.1-libs/intel64" OMP_NUM_THREADS = "4" Binaries compiled on a system with 1x Core i7-860 CPU + 8GB memory using RHEL5.5 Transparent Huge Pages enabled with: echo always > /sys/kernel/mm/redhat_transparent_hugepage/enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -auto-p32 -Wl,-z,muldefs -L/smartheap -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias |
| 401.bzip2: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xAVX -ipo -O3 -no-prec-div -inline-calloc -opt-malloc-options=3 -auto-ilp32 |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -xAVX(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -ansi-alias |
| 456.hmmer: | -xAVX -ipo -O3 -no-prec-div -unroll2 -auto-ilp32 -ansi-alias |
| 458.sjeng: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -xAVX -ipo -O3 -no-prec-div -opt-prefetch -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap |
