CPU2006 license: | 19 | Test date: | Sep-2011 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Sep-2011 |
Tested by: | Fujitsu | Software Availability: | Apr-2011 |
Hardware | |
---|---|
CPU Name: | Intel Celeron G530 |
CPU Characteristics: | |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 2 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC, running at 1067 MHz and CL7) |
Disk Subsystem: | 1 x SATA, 300 GB, 7200 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0 Update 3 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

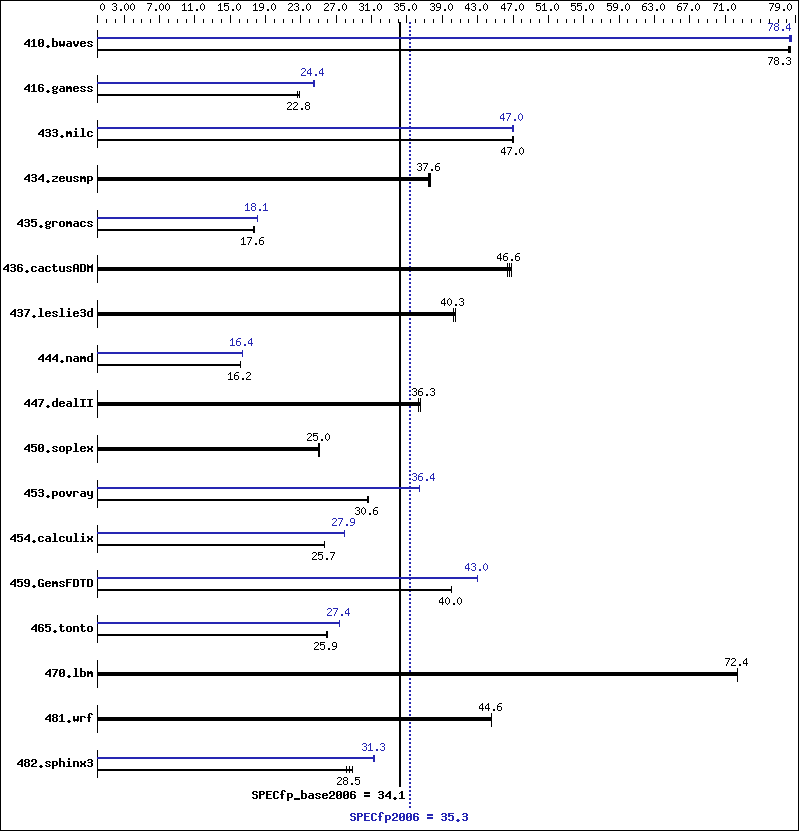

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 174 | 78.1 | 173 | 78.4 | 174 | 78.3 | 173 | 78.4 | 174 | 78.3 | 173 | 78.5 |
416.gamess | 864 | 22.7 | 859 | 22.8 | 859 | 22.8 | 800 | 24.5 | 801 | 24.4 | 801 | 24.4 |
433.milc | 195 | 47.0 | 195 | 47.0 | 195 | 47.1 | 195 | 47.0 | 195 | 47.0 | 195 | 47.0 |
434.zeusmp | 243 | 37.4 | 242 | 37.6 | 242 | 37.6 | 243 | 37.4 | 242 | 37.6 | 242 | 37.6 |
435.gromacs | 405 | 17.6 | 405 | 17.6 | 403 | 17.7 | 395 | 18.1 | 395 | 18.1 | 396 | 18.0 |
436.cactusADM | 256 | 46.6 | 258 | 46.3 | 255 | 46.8 | 256 | 46.6 | 258 | 46.3 | 255 | 46.8 |
437.leslie3d | 233 | 40.3 | 233 | 40.3 | 232 | 40.5 | 233 | 40.3 | 233 | 40.3 | 232 | 40.5 |
444.namd | 495 | 16.2 | 495 | 16.2 | 495 | 16.2 | 489 | 16.4 | 489 | 16.4 | 489 | 16.4 |
447.dealII | 314 | 36.5 | 315 | 36.3 | 315 | 36.3 | 314 | 36.5 | 315 | 36.3 | 315 | 36.3 |
450.soplex | 333 | 25.0 | 333 | 25.1 | 333 | 25.0 | 333 | 25.0 | 333 | 25.1 | 333 | 25.0 |
453.povray | 174 | 30.5 | 174 | 30.6 | 174 | 30.6 | 146 | 36.4 | 146 | 36.4 | 146 | 36.5 |
454.calculix | 321 | 25.7 | 321 | 25.7 | 321 | 25.7 | 296 | 27.9 | 296 | 27.9 | 296 | 27.9 |
459.GemsFDTD | 265 | 40.0 | 265 | 40.1 | 265 | 40.0 | 247 | 43.0 | 247 | 43.0 | 247 | 43.0 |
465.tonto | 380 | 25.9 | 378 | 26.0 | 380 | 25.9 | 360 | 27.3 | 359 | 27.4 | 360 | 27.4 |
470.lbm | 190 | 72.4 | 190 | 72.4 | 190 | 72.4 | 190 | 72.4 | 190 | 72.4 | 190 | 72.4 |
481.wrf | 250 | 44.6 | 251 | 44.6 | 251 | 44.6 | 250 | 44.6 | 251 | 44.6 | 251 | 44.6 |
482.sphinx3 | 693 | 28.1 | 683 | 28.5 | 677 | 28.8 | 625 | 31.2 | 622 | 31.3 | 622 | 31.3 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
OMP_NUM_THREADS set to number of cores For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | basepeak = yes |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -parallel -static |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
436.cactusADM: | basepeak = yes |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
481.wrf: | basepeak = yes |
