CPU2006 license: | 9006 | Test date: | Jul-2011 |
---|---|---|---|
Test sponsor: | NEC Corporation | Hardware Availability: | Feb-2011 |
Tested by: | NEC Corporation | Software Availability: | Mar-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5675 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
CPU MHz: | 3067 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64, Version 12.0.3.174 Build 20110309 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

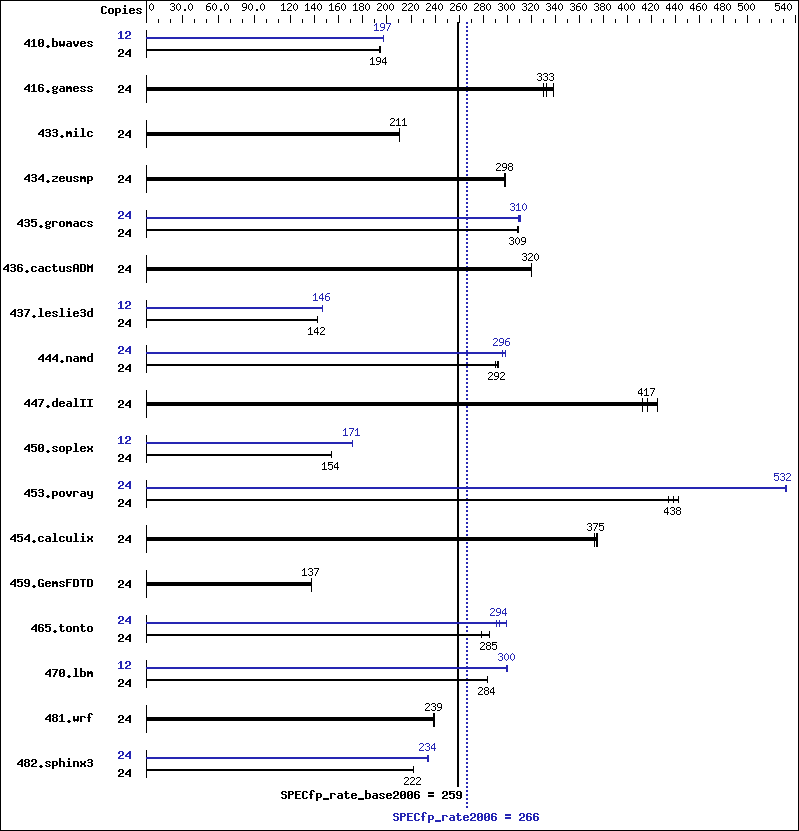

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1679 | 194 | 1685 | 194 | 1685 | 194 | 12 | 829 | 197 | 827 | 197 | 827 | 197 |
416.gamess | 24 | 1389 | 338 | 1413 | 333 | 1422 | 331 | 24 | 1389 | 338 | 1413 | 333 | 1422 | 331 |
433.milc | 24 | 1045 | 211 | 1045 | 211 | 1046 | 211 | 24 | 1045 | 211 | 1045 | 211 | 1046 | 211 |
434.zeusmp | 24 | 732 | 298 | 734 | 298 | 732 | 298 | 24 | 732 | 298 | 734 | 298 | 732 | 298 |
435.gromacs | 24 | 555 | 309 | 554 | 309 | 554 | 309 | 24 | 553 | 310 | 550 | 311 | 553 | 310 |
436.cactusADM | 24 | 896 | 320 | 896 | 320 | 896 | 320 | 24 | 896 | 320 | 896 | 320 | 896 | 320 |
437.leslie3d | 24 | 1588 | 142 | 1591 | 142 | 1590 | 142 | 12 | 772 | 146 | 771 | 146 | 772 | 146 |
444.namd | 24 | 659 | 292 | 658 | 293 | 664 | 290 | 24 | 650 | 296 | 644 | 299 | 650 | 296 |
447.dealII | 24 | 666 | 412 | 659 | 417 | 645 | 425 | 24 | 666 | 412 | 659 | 417 | 645 | 425 |
450.soplex | 24 | 1300 | 154 | 1300 | 154 | 1300 | 154 | 12 | 584 | 171 | 584 | 172 | 585 | 171 |
453.povray | 24 | 289 | 442 | 291 | 438 | 294 | 434 | 24 | 240 | 532 | 240 | 532 | 240 | 531 |
454.calculix | 24 | 528 | 375 | 529 | 375 | 531 | 373 | 24 | 528 | 375 | 529 | 375 | 531 | 373 |
459.GemsFDTD | 24 | 1858 | 137 | 1858 | 137 | 1859 | 137 | 24 | 1858 | 137 | 1858 | 137 | 1859 | 137 |
465.tonto | 24 | 828 | 285 | 847 | 279 | 827 | 286 | 24 | 804 | 294 | 811 | 291 | 790 | 299 |
470.lbm | 24 | 1161 | 284 | 1163 | 283 | 1162 | 284 | 12 | 549 | 300 | 549 | 300 | 550 | 300 |
481.wrf | 24 | 1123 | 239 | 1121 | 239 | 1121 | 239 | 24 | 1123 | 239 | 1121 | 239 | 1121 | 239 |
482.sphinx3 | 24 | 2104 | 222 | 2107 | 222 | 2105 | 222 | 24 | 1994 | 235 | 1997 | 234 | 2000 | 234 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Huge pages were not configured for this run
BIOS Settings: Performance/Watt: Traditional Server Class: Custom Data Reuse Optimization: Disabled Memory Voltage: Normal
The Express5800/R120b-1 and the Express5800/R120b-2 models are electronically equivalent. The results have been measured on the Express5800/R120b-1 model.
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | basepeak = yes |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
