| CPU2006 license: | 15 | Test date: | Jul-2011 |
|---|---|---|---|
| Test sponsor: | Unisys Corporation | Hardware Availability: | Jun-2011 |
| Tested by: | Unisys Corporation | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-8870 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 80 cores, 8 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4,8 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 30 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (128 x 8 GB 4Rx8 PC3L-8500R-7, ECC) |
| Disk Subsystem: | 3 x 146 GB SAS, 15000 RPM, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP1 |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 libhugetlbfs V2.12 |

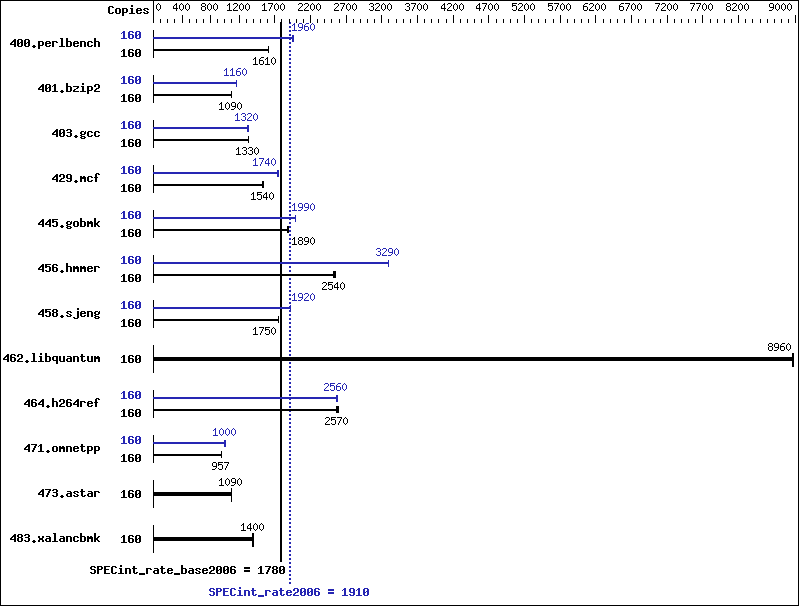

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 160 | 971 | 1610 | 971 | 1610 | 972 | 1610 | 160 | 799 | 1960 | 799 | 1960 | 803 | 1950 |
| 401.bzip2 | 160 | 1416 | 1090 | 1417 | 1090 | 1418 | 1090 | 160 | 1332 | 1160 | 1334 | 1160 | 1334 | 1160 |
| 403.gcc | 160 | 963 | 1340 | 971 | 1330 | 967 | 1330 | 160 | 972 | 1330 | 979 | 1320 | 974 | 1320 |
| 429.mcf | 160 | 947 | 1540 | 954 | 1530 | 949 | 1540 | 160 | 835 | 1750 | 837 | 1740 | 838 | 1740 |
| 445.gobmk | 160 | 889 | 1890 | 891 | 1880 | 889 | 1890 | 160 | 843 | 1990 | 841 | 1990 | 842 | 1990 |
| 456.hmmer | 160 | 593 | 2520 | 588 | 2540 | 585 | 2550 | 160 | 454 | 3290 | 453 | 3290 | 454 | 3290 |
| 458.sjeng | 160 | 1107 | 1750 | 1105 | 1750 | 1107 | 1750 | 160 | 1008 | 1920 | 1008 | 1920 | 1009 | 1920 |
| 462.libquantum | 160 | 370 | 8960 | 370 | 8960 | 370 | 8970 | 160 | 370 | 8960 | 370 | 8960 | 370 | 8970 |
| 464.h264ref | 160 | 1377 | 2570 | 1367 | 2590 | 1382 | 2560 | 160 | 1381 | 2560 | 1373 | 2580 | 1381 | 2560 |
| 471.omnetpp | 160 | 1045 | 957 | 1046 | 956 | 1044 | 958 | 160 | 1000 | 1000 | 998 | 1000 | 997 | 1000 |
| 473.astar | 160 | 1031 | 1090 | 1032 | 1090 | 1032 | 1090 | 160 | 1031 | 1090 | 1032 | 1090 | 1032 | 1090 |
| 483.xalancbmk | 160 | 792 | 1390 | 787 | 1400 | 791 | 1400 | 160 | 792 | 1390 | 787 | 1400 | 791 | 1400 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 156000 > /proc/sys/vm/nr_hugepages HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
General Notes
Binaries compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
