SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DX58SO2 Motherboard (Intel Core i7-990X)

SPECint®2006 = 42.3

CPU2006 license: 13 Test date: Jun-2011
Test sponsor: Intel Corporation Hardware Availability: Mar-2011
Tested by: Intel Corporation Software Availability: Apr-2011

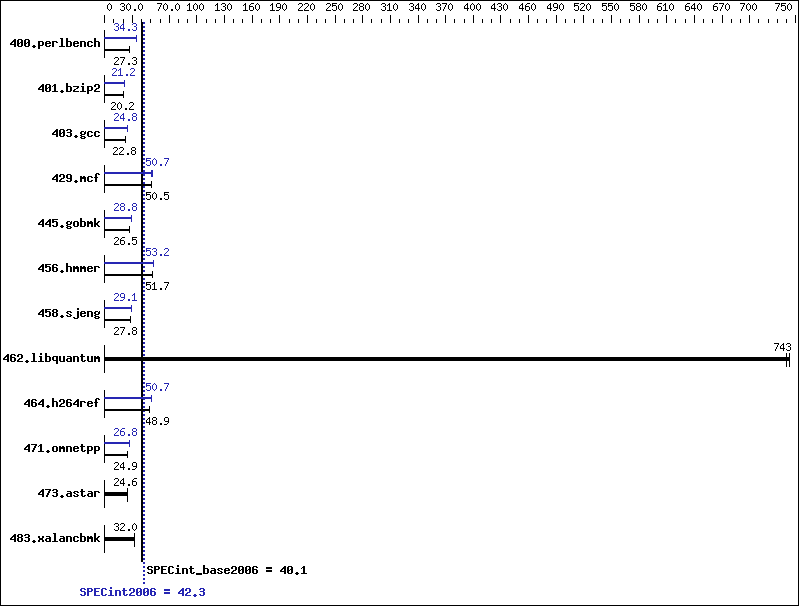

Benchmark results graph
Hardware
CPU Name: Intel Core i7-990X
CPU Characteristics: Intel Turbo Boost Technology up to 3.73 GHz
CPU MHz: 3466
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 12 GB (3 x 4 GB 2Rx8 PC3-8500U-7)
Disk Subsystem: Intel 160GB SSD SSDSA2M160G2GN
Other Hardware: None
Software
Operating System: Windows 7 Ultimate (64-bit)
Compiler: Intel C++ Compiler XE for Intel64
Version 12.0.3.176 Build 20110309
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap Library Version 9.01 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 360   27.2 358   27.3 359   27.3 284   34.4 285   34.2 285   34.3
401.bzip2 477   20.2 479   20.1 472   20.4 456   21.2 460   21.0 456   21.2
403.gcc 352   22.8 353   22.8 353   22.8 330   24.4 325   24.8 324   24.8
429.mcf 181   50.5 181   50.3 180   50.6 180   50.7 181   50.5 177   51.5
445.gobmk 395   26.5 395   26.5 396   26.5 365   28.8 365   28.8 365   28.8
456.hmmer 180   51.7 180   51.7 181   51.7 175   53.2 175   53.2 175   53.3
458.sjeng 436   27.8 435   27.8 436   27.8 417   29.1 416   29.1 416   29.1
462.libquantum 27.9 743   27.9 743   28.0 740   27.9 743   27.9 743   28.0 740
464.h264ref 452   48.9 452   48.9 452   48.9 437   50.7 436   50.7 436   50.7
471.omnetpp 248   25.2 251   24.9 251   24.9 233   26.8 232   26.9 233   26.8
473.astar 286   24.6 286   24.6 284   24.7 286   24.6 286   24.6 284   24.7
483.xalancbmk 215   32.1 216   32.0 216   32.0 215   32.1 216   32.0 216   32.0

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 System was configured with an ATI HD6970 discrete graphics card

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

400.perlbench:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64_X64   -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
429.mcf:  -DSPEC_CPU_P64
445.gobmk:  -DSPEC_CPU_P64
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_P64   -DWIN32   -DSPEC_CPU_NO_INTTYPES
471.omnetpp:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -DSPEC_CPU_P64   -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qauto-ilp32   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   -Qauto-ilp32   /F512000000
403.gcc:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F512000000
429.mcf:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F512000000
445.gobmk:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000
456.hmmer:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000
458.sjeng:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto-ilp32   /F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000

C++ benchmarks:

471.omnetpp:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
473.astar:  basepeak = yes
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.html,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12-winx64-revC.xml,
http://www.spec.org/cpu2006/flags/Intel-Windows-Platform-Settings.20110719.xml.
