| CPU2006 license: | 55 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Feb-2011 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5645 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

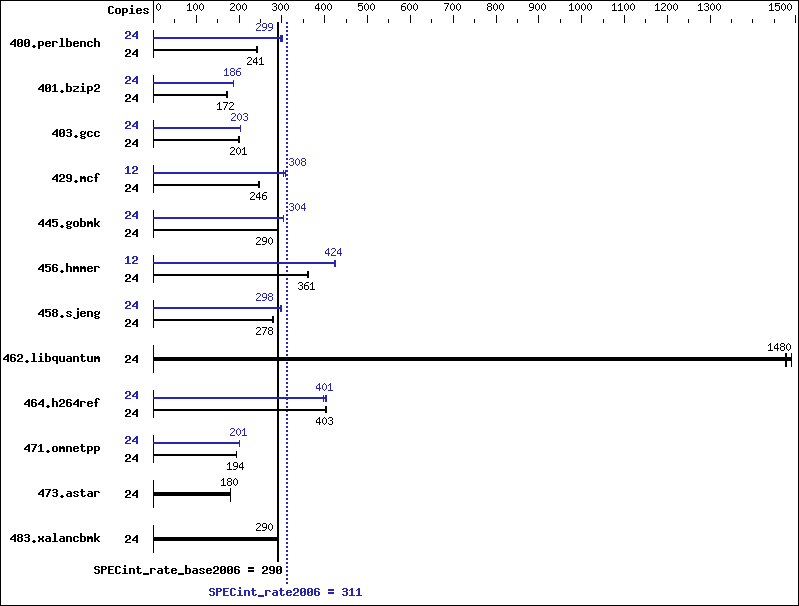

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 971 | 241 | 966 | 243 | 973 | 241 | 24 | 783 | 299 | 780 | 301 | 792 | 296 |
| 401.bzip2 | 24 | 1350 | 172 | 1352 | 171 | 1346 | 172 | 24 | 1244 | 186 | 1243 | 186 | 1240 | 187 |
| 403.gcc | 24 | 959 | 201 | 959 | 201 | 969 | 199 | 24 | 951 | 203 | 946 | 204 | 953 | 203 |
| 429.mcf | 24 | 886 | 247 | 888 | 246 | 890 | 246 | 12 | 356 | 308 | 360 | 304 | 355 | 308 |
| 445.gobmk | 24 | 871 | 289 | 868 | 290 | 868 | 290 | 24 | 827 | 304 | 829 | 304 | 827 | 304 |
| 456.hmmer | 24 | 621 | 361 | 620 | 361 | 621 | 361 | 12 | 264 | 424 | 264 | 424 | 265 | 423 |
| 458.sjeng | 24 | 1043 | 278 | 1039 | 280 | 1048 | 277 | 24 | 974 | 298 | 971 | 299 | 975 | 298 |
| 462.libquantum | 24 | 334 | 1490 | 337 | 1480 | 337 | 1480 | 24 | 334 | 1490 | 337 | 1480 | 337 | 1480 |
| 464.h264ref | 24 | 1316 | 404 | 1319 | 403 | 1325 | 401 | 24 | 1337 | 397 | 1325 | 401 | 1311 | 405 |
| 471.omnetpp | 24 | 773 | 194 | 774 | 194 | 773 | 194 | 24 | 748 | 201 | 749 | 200 | 747 | 201 |
| 473.astar | 24 | 938 | 180 | 933 | 181 | 935 | 180 | 24 | 938 | 180 | 933 | 181 | 935 | 180 |
| 483.xalancbmk | 24 | 572 | 290 | 571 | 290 | 571 | 290 | 24 | 572 | 290 | 571 | 290 | 571 | 290 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled)
General Notes
Binaries were compiled on RHEL5.5 The Dell PowerEdge R410 and the Bull NovaScale R430 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R410 model.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
