| CPU2006 license: | 97 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Aug-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5620 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 1000 GB SATA 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

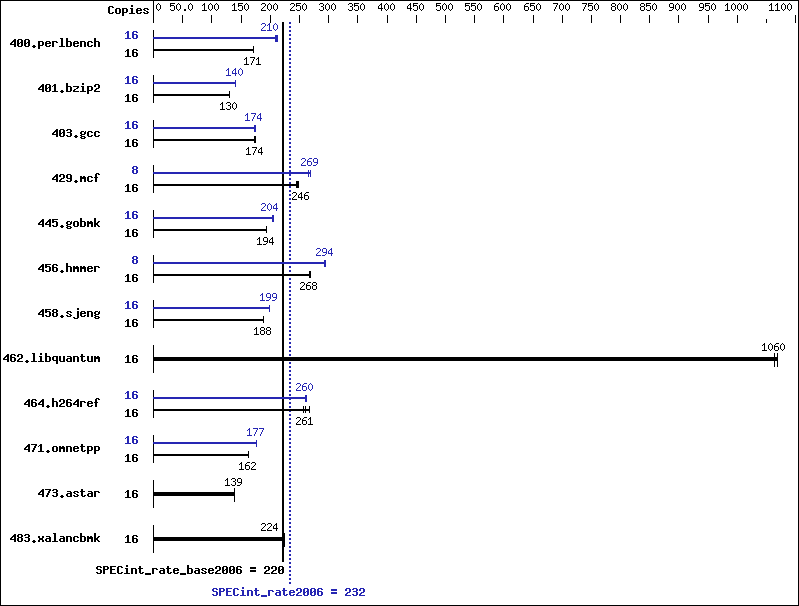

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 16 | 914 | 171 | 913 | 171 | 913 | 171 | 16 | 743 | 210 | 735 | 213 | 747 | 209 |
| 401.bzip2 | 16 | 1192 | 130 | 1185 | 130 | 1186 | 130 | 16 | 1100 | 140 | 1097 | 141 | 1100 | 140 |
| 403.gcc | 16 | 744 | 173 | 740 | 174 | 734 | 175 | 16 | 736 | 175 | 741 | 174 | 741 | 174 |
| 429.mcf | 16 | 596 | 245 | 593 | 246 | 589 | 248 | 8 | 274 | 266 | 270 | 270 | 271 | 269 |
| 445.gobmk | 16 | 865 | 194 | 866 | 194 | 867 | 193 | 16 | 819 | 205 | 822 | 204 | 822 | 204 |
| 456.hmmer | 16 | 555 | 269 | 557 | 268 | 560 | 267 | 8 | 254 | 294 | 254 | 294 | 254 | 294 |
| 458.sjeng | 16 | 1027 | 189 | 1028 | 188 | 1031 | 188 | 16 | 975 | 199 | 974 | 199 | 975 | 199 |
| 462.libquantum | 16 | 310 | 1070 | 312 | 1060 | 312 | 1060 | 16 | 310 | 1070 | 312 | 1060 | 312 | 1060 |
| 464.h264ref | 16 | 1358 | 261 | 1378 | 257 | 1328 | 267 | 16 | 1350 | 262 | 1362 | 260 | 1363 | 260 |
| 471.omnetpp | 16 | 616 | 162 | 616 | 162 | 617 | 162 | 16 | 566 | 177 | 567 | 176 | 566 | 177 |
| 473.astar | 16 | 809 | 139 | 812 | 138 | 808 | 139 | 16 | 809 | 139 | 812 | 138 | 808 | 139 |
| 483.xalancbmk | 16 | 494 | 224 | 493 | 224 | 494 | 223 | 16 | 494 | 224 | 493 | 224 | 494 | 223 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set environment stack size Large pages were disabled for this run
Platform Notes
BIOS Settings: Fan speed = full speed (Default = Energy Saving) Data Reuse = Disabled (Default = Enabled)
General Notes
Binaries compiled on RHEL5.5 The Acer AW2000h-AW170h F1, Gateway GW2000h-GW170h F1, Acer AW2000ht-AW170ht F1 and Gateway GW2000ht-GW170ht F1 are electronically equivalent. This result was measured on Gateway GW2000ht-GW170ht F1.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
