SPEC® CFP2006 Result

Dell Inc.

PowerEdge M915 (AMD Opteron 6176, 2.30 GHz)

SPECfp®_rate2006 = 323

SPECfp_rate_base2006 = 297

CPU2006 license:	55	Test date:	May-2011
Test sponsor:	Dell Inc.	Hardware Availability:	Jun-2011
Tested by:	Dell Inc.	Software Availability:	Jul-2010

Hardware
CPU Name:	AMD Opteron 6176
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	24 cores, 2 chips, 12 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	64 GB (16 x 4 GB 2Rx4 PC3L-10600R-9, ECC)
Disk Subsystem:	1 x 146 GB 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

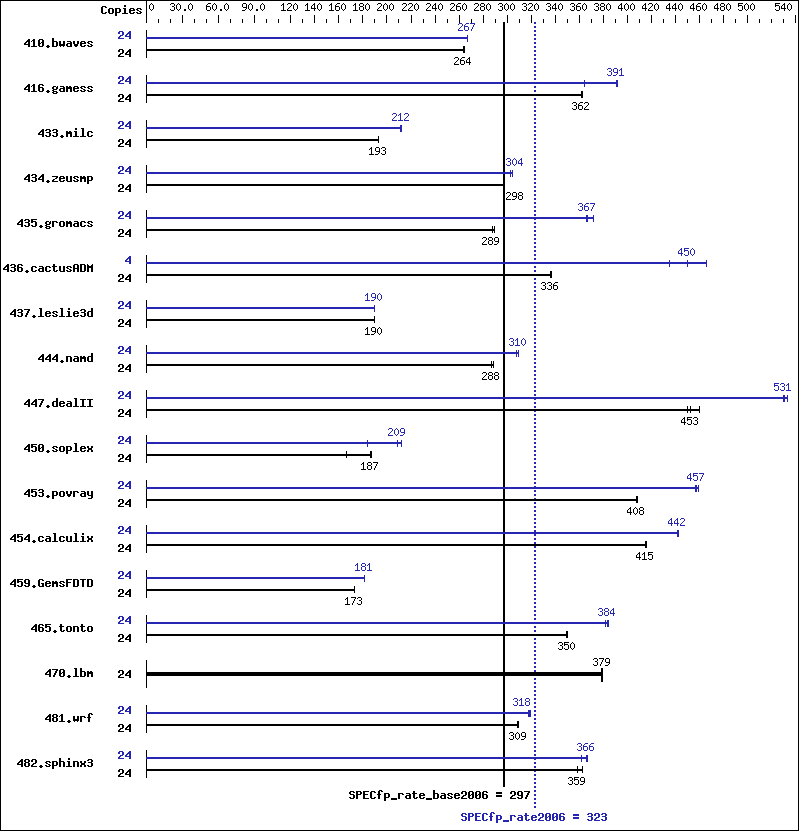

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	24	1235	264	1235	264	1235	264	24	1223	267	1223	267	1222	267
416.gamess	24	1298	362	1296	363	1298	362	24	1289	364	1199	392	1201	391
433.milc	24	1142	193	1142	193	1143	193	24	1042	211	1039	212	1039	212
434.zeusmp	24	735	297	733	298	734	298	24	718	304	718	304	722	302
435.gromacs	24	592	289	595	288	591	290	24	467	367	461	372	468	366
436.cactusADM	24	853	336	854	336	851	337	4	106	450	110	435	103	465
437.leslie3d	24	1190	190	1190	190	1188	190	24	1190	190	1191	189	1189	190
444.namd	24	670	287	667	288	666	289	24	625	308	621	310	622	310
447.dealII	24	610	450	597	460	607	453	24	517	531	515	533	518	530
450.soplex	24	1206	166	1073	187	1071	187	24	1089	184	960	209	942	212
453.povray	24	313	408	313	408	313	407	24	279	457	278	459	280	457
454.calculix	24	476	416	477	415	477	415	24	449	441	448	442	448	442
459.GemsFDTD	24	1475	173	1469	173	1472	173	24	1405	181	1407	181	1406	181
465.tonto	24	674	350	677	349	675	350	24	615	384	615	384	619	381
470.lbm	24	872	378	870	379	869	379	24	872	378	870	379	869	379
481.wrf	24	866	309	867	309	868	309	24	839	319	842	318	844	318
482.sphinx3	24	1304	359	1304	359	1290	362	24	1292	362	1276	367	1277	366

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=10800 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd1002-rate-libs-revC/64:/root/cpu2006-1.1/amd1002-rate-libs-revC/32"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64
Binaries were compiled on SLES10 SP2 with binutils 2.18 OMP_NUM_THREADS = "6"

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	basepeak = yes
482.sphinx3:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m
453.povray:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-march=barcelona -mso -O3 -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:interchange=off -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -GRA:prioritize_by_density=on -HP
437.leslie3d:	-march=barcelona -mso -Ofast -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -mso -Ofast -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -mso -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -mso -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m -LANG:heap_allocation_threshold=100
454.calculix:	-march=barcelona -mso -Ofast -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -LNO:prefetch_ahead=30 -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -m3dnow -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
