| CPU2006 license: | 20 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Sep-2011 |
| Tested by: | Bull SAS | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X7560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 128 cores, 16 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2, 4, 8, 12, 16 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (128 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux 6.0 (x86_64), Kernel 2.6.32-71.el6.x86_64 |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | tmpfs |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

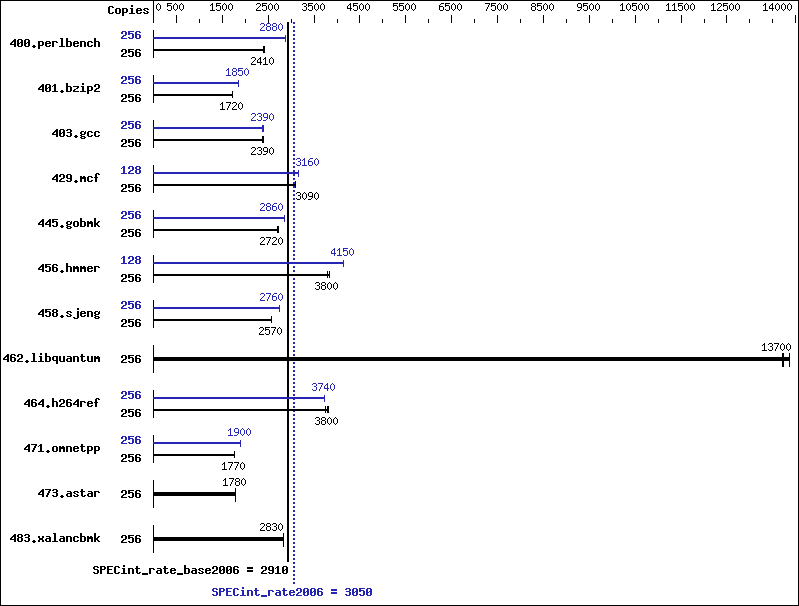

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 256 | 1038 | 2410 | 1041 | 2400 | 1039 | 2410 | 256 | 869 | 2880 | 869 | 2880 | 871 | 2870 |
| 401.bzip2 | 256 | 1434 | 1720 | 1439 | 1720 | 1435 | 1720 | 256 | 1337 | 1850 | 1335 | 1850 | 1340 | 1840 |
| 403.gcc | 256 | 863 | 2390 | 864 | 2390 | 863 | 2390 | 256 | 863 | 2390 | 863 | 2390 | 867 | 2380 |
| 429.mcf | 256 | 755 | 3090 | 755 | 3090 | 755 | 3090 | 128 | 370 | 3160 | 370 | 3160 | 369 | 3160 |
| 445.gobmk | 256 | 990 | 2710 | 989 | 2720 | 988 | 2720 | 256 | 938 | 2860 | 937 | 2870 | 938 | 2860 |
| 456.hmmer | 256 | 629 | 3800 | 631 | 3790 | 622 | 3840 | 128 | 288 | 4150 | 288 | 4150 | 288 | 4150 |
| 458.sjeng | 256 | 1207 | 2570 | 1204 | 2570 | 1201 | 2580 | 256 | 1124 | 2760 | 1124 | 2760 | 1125 | 2750 |
| 462.libquantum | 256 | 386 | 13700 | 387 | 13700 | 383 | 13900 | 256 | 386 | 13700 | 387 | 13700 | 383 | 13900 |
| 464.h264ref | 256 | 1507 | 3760 | 1488 | 3810 | 1492 | 3800 | 256 | 1516 | 3740 | 1516 | 3740 | 1519 | 3730 |
| 471.omnetpp | 256 | 907 | 1760 | 905 | 1770 | 906 | 1770 | 256 | 840 | 1910 | 841 | 1900 | 841 | 1900 |
| 473.astar | 256 | 1011 | 1780 | 1011 | 1780 | 1011 | 1780 | 256 | 1011 | 1780 | 1011 | 1780 | 1011 | 1780 |
| 483.xalancbmk | 256 | 623 | 2840 | 625 | 2830 | 626 | 2820 | 256 | 623 | 2840 | 625 | 2830 | 626 | 2820 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores Tmpfs filesystem set up with: mkdir -p /mnt/shm mount -t tmpfs -o rw,mpol=interleave tmpfs /mnt/shm/ The mpol=interleave option sets the NUMA memory allocation policy for all files to allocate from each node in turn. Operating system file is ext3 Spec benchmark is copied from hard disk ext3 to tmpfs Binaries were compiled with huge pages enabled but huge pages were not used
Platform Notes
System is composed of 4 modules with 32 DIMMs on each module.
General Notes
The Bull novascale bullion and the Bull bullx S6030 models are electronically equivalent. The results have been measured on a novascale bullion model. Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
