| CPU2006 license: | 97 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Aug-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 1000 GB SATA 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

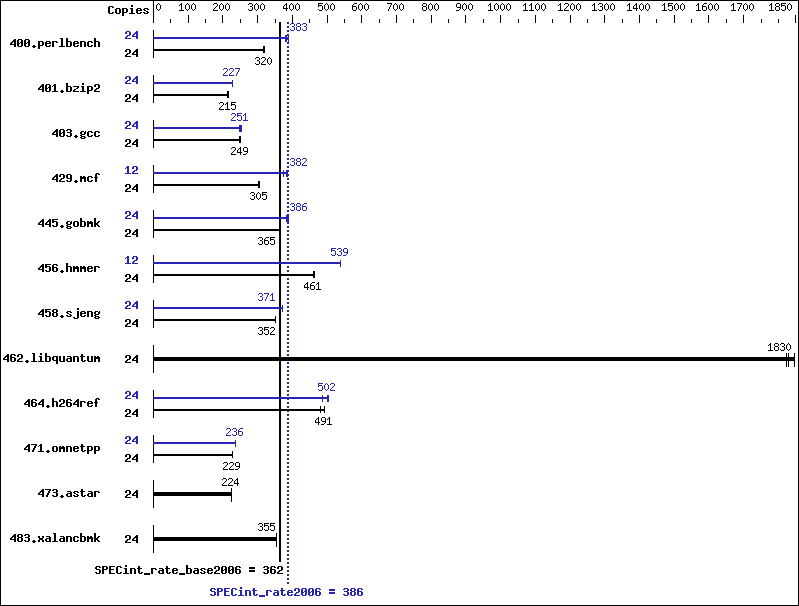

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 737 | 318 | 732 | 320 | 732 | 321 | 24 | 615 | 381 | 613 | 383 | 602 | 389 |
| 401.bzip2 | 24 | 1080 | 214 | 1079 | 215 | 1072 | 216 | 24 | 1021 | 227 | 1024 | 226 | 1013 | 229 |
| 403.gcc | 24 | 775 | 249 | 773 | 250 | 780 | 248 | 24 | 770 | 251 | 764 | 253 | 783 | 247 |
| 429.mcf | 24 | 726 | 302 | 718 | 305 | 716 | 306 | 12 | 286 | 382 | 292 | 374 | 285 | 385 |
| 445.gobmk | 24 | 690 | 365 | 689 | 366 | 695 | 362 | 24 | 652 | 386 | 648 | 388 | 659 | 382 |
| 456.hmmer | 24 | 485 | 461 | 484 | 463 | 485 | 461 | 12 | 208 | 538 | 208 | 539 | 207 | 540 |
| 458.sjeng | 24 | 825 | 352 | 824 | 352 | 826 | 351 | 24 | 782 | 371 | 780 | 372 | 782 | 371 |
| 462.libquantum | 24 | 269 | 1850 | 272 | 1830 | 273 | 1820 | 24 | 269 | 1850 | 272 | 1830 | 273 | 1820 |
| 464.h264ref | 24 | 1081 | 491 | 1079 | 492 | 1101 | 482 | 24 | 1058 | 502 | 1055 | 503 | 1090 | 487 |
| 471.omnetpp | 24 | 656 | 229 | 656 | 229 | 657 | 228 | 24 | 636 | 236 | 636 | 236 | 636 | 236 |
| 473.astar | 24 | 753 | 224 | 752 | 224 | 753 | 224 | 24 | 753 | 224 | 752 | 224 | 753 | 224 |
| 483.xalancbmk | 24 | 467 | 355 | 466 | 355 | 467 | 355 | 24 | 467 | 355 | 466 | 355 | 467 | 355 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set environment stack size Large pages were disabled for this run
Platform Notes
BIOS Settings: Fan speed = full speed (Default = Energy Saving) Data Reuse = Disabled (Default = Enabled)
General Notes
Binaries compiled on RHEL5.5 The Acer AW2000h-AW170h F1, Gateway GW2000h-GW170h F1, Acer AW2000ht-AW170ht F1 and Gateway GW2000ht-GW170ht F1 are electronically equivalent. This result was measured on Gateway GW2000ht-GW170ht F1.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
