| CPU2006 license: | 55 | Test date: | Jun-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Apr-2011 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-2860 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.66 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 20 cores, 2 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3L-8500R-7, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

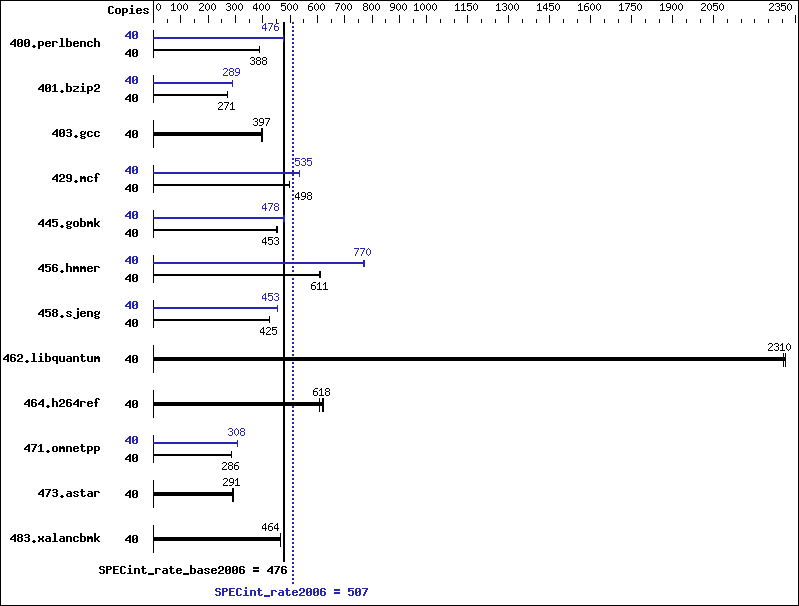

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 40 | 1006 | 388 | 1008 | 388 | 1005 | 389 | 40 | 820 | 477 | 821 | 476 | 822 | 476 |
| 401.bzip2 | 40 | 1422 | 271 | 1422 | 271 | 1422 | 271 | 40 | 1339 | 288 | 1335 | 289 | 1331 | 290 |
| 403.gcc | 40 | 804 | 400 | 811 | 397 | 816 | 394 | 40 | 804 | 400 | 811 | 397 | 816 | 394 |
| 429.mcf | 40 | 732 | 498 | 732 | 498 | 735 | 497 | 40 | 682 | 535 | 681 | 535 | 685 | 533 |
| 445.gobmk | 40 | 925 | 454 | 931 | 451 | 926 | 453 | 40 | 876 | 479 | 877 | 478 | 880 | 477 |
| 456.hmmer | 40 | 615 | 607 | 611 | 611 | 611 | 611 | 40 | 485 | 770 | 486 | 768 | 484 | 770 |
| 458.sjeng | 40 | 1137 | 426 | 1140 | 425 | 1139 | 425 | 40 | 1068 | 453 | 1064 | 455 | 1070 | 453 |
| 462.libquantum | 40 | 358 | 2310 | 359 | 2310 | 360 | 2300 | 40 | 358 | 2310 | 359 | 2310 | 360 | 2300 |
| 464.h264ref | 40 | 1460 | 606 | 1424 | 622 | 1433 | 618 | 40 | 1460 | 606 | 1424 | 622 | 1433 | 618 |
| 471.omnetpp | 40 | 873 | 286 | 873 | 286 | 871 | 287 | 40 | 810 | 309 | 810 | 308 | 811 | 308 |
| 473.astar | 40 | 967 | 290 | 965 | 291 | 966 | 291 | 40 | 967 | 290 | 965 | 291 | 966 | 291 |
| 483.xalancbmk | 40 | 594 | 464 | 595 | 464 | 596 | 463 | 40 | 594 | 464 | 595 | 464 | 596 | 463 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 18000> /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
