| CPU2006 license: | 55 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | May-2011 |
| Tested by: | Dell Inc. | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core i3-2100 |
| CPU Characteristics: | |
| CPU MHz: | 3100 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 3 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.1 32-bit Library for Linux |

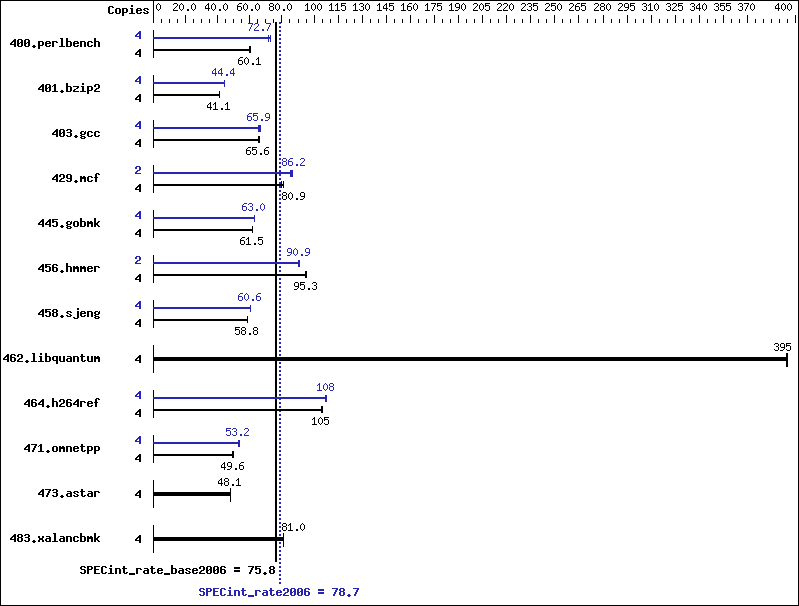

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 650 | 60.1 | 653 | 59.8 | 649 | 60.2 | 4 | 538 | 72.7 | 538 | 72.7 | 543 | 71.9 |
| 401.bzip2 | 4 | 939 | 41.1 | 934 | 41.3 | 939 | 41.1 | 4 | 869 | 44.4 | 872 | 44.3 | 869 | 44.4 |
| 403.gcc | 4 | 490 | 65.8 | 494 | 65.1 | 491 | 65.6 | 4 | 490 | 65.7 | 489 | 65.9 | 485 | 66.4 |
| 429.mcf | 4 | 456 | 80.0 | 451 | 80.9 | 451 | 80.9 | 2 | 211 | 86.3 | 214 | 85.4 | 212 | 86.2 |
| 445.gobmk | 4 | 683 | 61.5 | 682 | 61.5 | 684 | 61.4 | 4 | 666 | 63.0 | 667 | 62.9 | 666 | 63.0 |
| 456.hmmer | 4 | 395 | 94.6 | 392 | 95.3 | 391 | 95.4 | 2 | 205 | 90.9 | 206 | 90.5 | 205 | 90.9 |
| 458.sjeng | 4 | 823 | 58.8 | 823 | 58.8 | 823 | 58.8 | 4 | 798 | 60.6 | 800 | 60.5 | 798 | 60.6 |
| 462.libquantum | 4 | 210 | 395 | 210 | 394 | 210 | 395 | 4 | 210 | 395 | 210 | 394 | 210 | 395 |
| 464.h264ref | 4 | 848 | 104 | 840 | 105 | 844 | 105 | 4 | 820 | 108 | 820 | 108 | 828 | 107 |
| 471.omnetpp | 4 | 503 | 49.7 | 504 | 49.6 | 505 | 49.5 | 4 | 470 | 53.2 | 470 | 53.1 | 467 | 53.5 |
| 473.astar | 4 | 583 | 48.2 | 583 | 48.1 | 586 | 47.9 | 4 | 583 | 48.2 | 583 | 48.1 | 586 | 47.9 |
| 483.xalancbmk | 4 | 341 | 81.0 | 341 | 81.0 | 340 | 81.2 | 4 | 341 | 81.0 | 341 | 81.0 | 340 | 81.2 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 900> /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge R210 II and the Bull NovaScale R410B F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R210 II model Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
