| CPU2006 license: | 20 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | May-2011 |
| Tested by: | Dell Inc. | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1230 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.60 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 8 GB (4 x 2 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.1 32-bit Library for Linux |

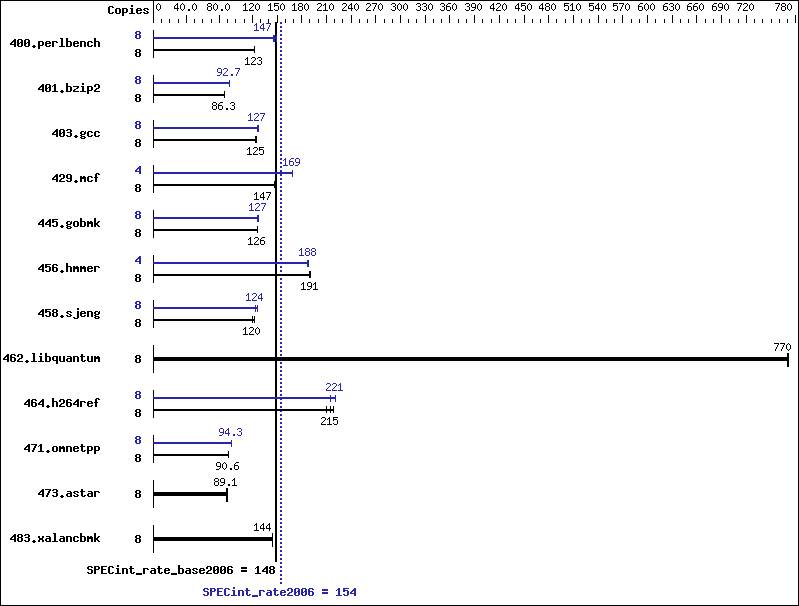

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 635 | 123 | 636 | 123 | 636 | 123 | 8 | 524 | 149 | 533 | 147 | 535 | 146 |
| 401.bzip2 | 8 | 896 | 86.2 | 895 | 86.3 | 891 | 86.7 | 8 | 833 | 92.7 | 832 | 92.8 | 833 | 92.7 |
| 403.gcc | 8 | 518 | 124 | 513 | 126 | 514 | 125 | 8 | 509 | 127 | 507 | 127 | 510 | 126 |
| 429.mcf | 8 | 495 | 147 | 496 | 147 | 494 | 148 | 4 | 216 | 169 | 216 | 169 | 216 | 169 |
| 445.gobmk | 8 | 662 | 127 | 663 | 126 | 665 | 126 | 8 | 664 | 126 | 660 | 127 | 656 | 128 |
| 456.hmmer | 8 | 390 | 191 | 391 | 191 | 395 | 189 | 4 | 198 | 188 | 200 | 187 | 198 | 188 |
| 458.sjeng | 8 | 792 | 122 | 806 | 120 | 806 | 120 | 8 | 782 | 124 | 780 | 124 | 767 | 126 |
| 462.libquantum | 8 | 215 | 771 | 215 | 770 | 215 | 770 | 8 | 215 | 771 | 215 | 770 | 215 | 770 |
| 464.h264ref | 8 | 824 | 215 | 809 | 219 | 843 | 210 | 8 | 801 | 221 | 825 | 215 | 800 | 221 |
| 471.omnetpp | 8 | 552 | 90.5 | 552 | 90.7 | 552 | 90.6 | 8 | 529 | 94.4 | 531 | 94.2 | 530 | 94.3 |
| 473.astar | 8 | 632 | 88.8 | 630 | 89.1 | 628 | 89.5 | 8 | 632 | 88.8 | 630 | 89.1 | 628 | 89.5 |
| 483.xalancbmk | 8 | 383 | 144 | 383 | 144 | 383 | 144 | 8 | 383 | 144 | 383 | 144 | 383 | 144 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 3600> /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller)
General Notes
The Dell PowerEdge T110 II and the Bull NovaScale T810B F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge T110 II model Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
