CPU2006 license: | 49 | Test date: | May-2011 |
---|---|---|---|
Test sponsor: | Advanced Micro Devices | Hardware Availability: | May-2011 |
Tested by: | Advanced Micro Devices | Software Availability: | Jul-2010 |
Hardware | |
---|---|
CPU Name: | AMD Phenom II X2 570 |
CPU Characteristics: | |
CPU MHz: | 3500 |
FPU: | Integrated |
CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 6 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 4 GB (2 x 2 GB 2Rx8 PC3-10600U-9) |
Disk Subsystem: | 1 x 2 TB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | x86 Open64 4.2.4 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.1 32-bit Library for Linux |

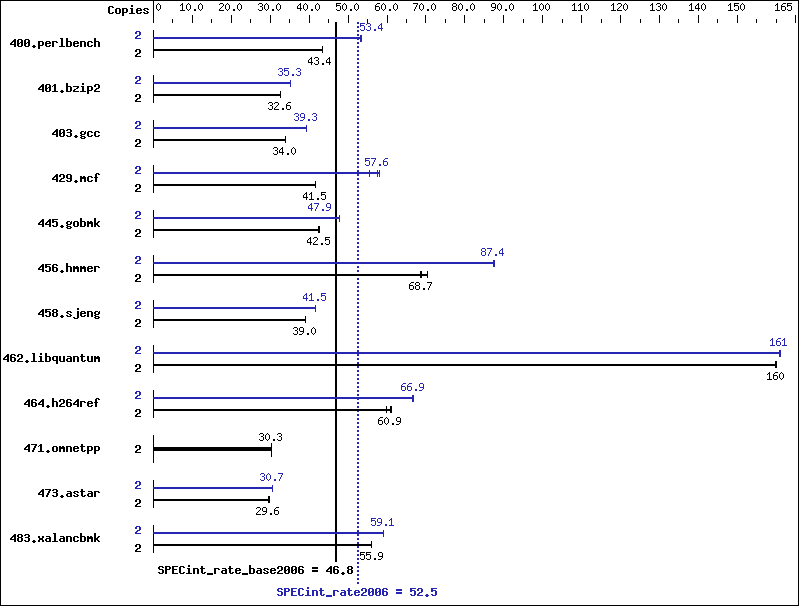

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 2 | 450 | 43.4 | 451 | 43.4 | 450 | 43.4 | 2 | 366 | 53.4 | 367 | 53.3 | 365 | 53.5 |
401.bzip2 | 2 | 592 | 32.6 | 591 | 32.7 | 591 | 32.6 | 2 | 547 | 35.3 | 547 | 35.3 | 548 | 35.2 |
403.gcc | 2 | 474 | 34.0 | 474 | 33.9 | 473 | 34.0 | 2 | 410 | 39.3 | 409 | 39.3 | 410 | 39.3 |
429.mcf | 2 | 439 | 41.5 | 439 | 41.6 | 439 | 41.5 | 2 | 317 | 57.6 | 314 | 58.2 | 328 | 55.6 |
445.gobmk | 2 | 493 | 42.5 | 493 | 42.5 | 494 | 42.5 | 2 | 439 | 47.8 | 438 | 47.9 | 438 | 47.9 |
456.hmmer | 2 | 265 | 70.5 | 272 | 68.6 | 272 | 68.7 | 2 | 213 | 87.4 | 213 | 87.4 | 213 | 87.5 |
458.sjeng | 2 | 620 | 39.0 | 620 | 39.0 | 620 | 39.1 | 2 | 583 | 41.5 | 583 | 41.5 | 583 | 41.5 |
462.libquantum | 2 | 259 | 160 | 259 | 160 | 259 | 160 | 2 | 258 | 161 | 257 | 161 | 258 | 161 |
464.h264ref | 2 | 727 | 60.9 | 725 | 61.0 | 738 | 60.0 | 2 | 665 | 66.6 | 662 | 66.9 | 662 | 66.9 |
471.omnetpp | 2 | 413 | 30.3 | 413 | 30.3 | 413 | 30.3 | 2 | 413 | 30.3 | 413 | 30.3 | 413 | 30.3 |
473.astar | 2 | 473 | 29.7 | 475 | 29.5 | 474 | 29.6 | 2 | 458 | 30.7 | 458 | 30.7 | 458 | 30.7 |
483.xalancbmk | 2 | 247 | 55.9 | 247 | 56.0 | 247 | 55.9 | 2 | 234 | 59.0 | 233 | 59.1 | 233 | 59.1 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=0 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages Binaries were compiled on SLES10 SP2 with binutils 2.18
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "0" LD_LIBRARY_PATH = "/root/work/cpu2006v1.1/amd1002-rate-libs-revC/64:/root/work/cpu2006v1.1/amd1002-rate-libs-revC/32" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-march=barcelona -mso -Ofast -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=8000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m |
-march=barcelona -mso -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
