CPU2006 license: | 11 | Test date: | May-2011 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7-4807 |
CPU Characteristics: | |
CPU MHz: | 1867 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 18 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 128 GB (16 x 8 GB 4Rx8 PC3-8500R-7, ECC, running at 800 MHz) |
Disk Subsystem: | 2 x 50 GB SSD, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

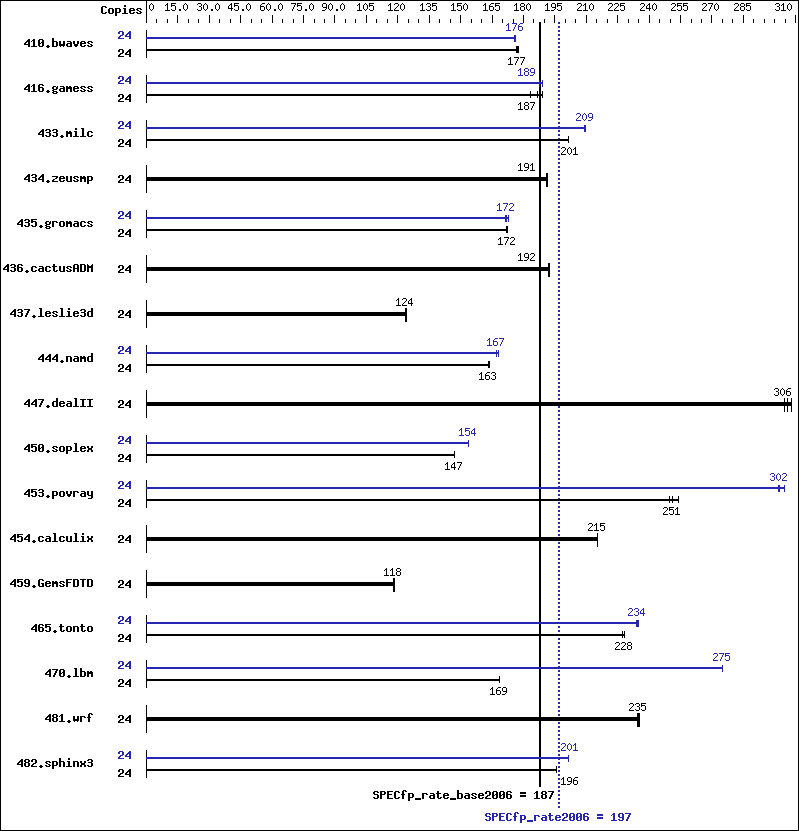

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 1839 | 177 | 1843 | 177 | 1845 | 177 | 24 | 1853 | 176 | 1857 | 176 | 1851 | 176 |
416.gamess | 24 | 2514 | 187 | 2483 | 189 | 2562 | 183 | 24 | 2486 | 189 | 2483 | 189 | 2502 | 188 |
433.milc | 24 | 1094 | 201 | 1093 | 202 | 1094 | 201 | 24 | 1052 | 209 | 1053 | 209 | 1052 | 210 |
434.zeusmp | 24 | 1141 | 191 | 1141 | 191 | 1143 | 191 | 24 | 1141 | 191 | 1141 | 191 | 1143 | 191 |
435.gromacs | 24 | 993 | 173 | 994 | 172 | 996 | 172 | 24 | 992 | 173 | 999 | 172 | 996 | 172 |
436.cactusADM | 24 | 1493 | 192 | 1494 | 192 | 1490 | 193 | 24 | 1493 | 192 | 1494 | 192 | 1490 | 193 |
437.leslie3d | 24 | 1823 | 124 | 1819 | 124 | 1821 | 124 | 24 | 1823 | 124 | 1819 | 124 | 1821 | 124 |
444.namd | 24 | 1176 | 164 | 1179 | 163 | 1180 | 163 | 24 | 1153 | 167 | 1145 | 168 | 1153 | 167 |
447.dealII | 24 | 901 | 305 | 891 | 308 | 896 | 306 | 24 | 901 | 305 | 891 | 308 | 896 | 306 |
450.soplex | 24 | 1361 | 147 | 1360 | 147 | 1360 | 147 | 24 | 1303 | 154 | 1302 | 154 | 1304 | 154 |
453.povray | 24 | 511 | 250 | 503 | 254 | 508 | 251 | 24 | 419 | 305 | 423 | 302 | 423 | 302 |
454.calculix | 24 | 920 | 215 | 920 | 215 | 920 | 215 | 24 | 920 | 215 | 920 | 215 | 920 | 215 |
459.GemsFDTD | 24 | 2156 | 118 | 2158 | 118 | 2152 | 118 | 24 | 2156 | 118 | 2158 | 118 | 2152 | 118 |
465.tonto | 24 | 1034 | 228 | 1036 | 228 | 1038 | 227 | 24 | 1009 | 234 | 1006 | 235 | 1008 | 234 |
470.lbm | 24 | 1955 | 169 | 1954 | 169 | 1955 | 169 | 24 | 1199 | 275 | 1199 | 275 | 1199 | 275 |
481.wrf | 24 | 1144 | 234 | 1141 | 235 | 1140 | 235 | 24 | 1144 | 234 | 1141 | 235 | 1140 | 235 |
482.sphinx3 | 24 | 2389 | 196 | 2392 | 196 | 2390 | 196 | 24 | 2323 | 201 | 2320 | 202 | 2324 | 201 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 > /proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
BIOS Settings: Turbo Boost Power Optimization set to Traditional
Binaries were compiled on RHEL5.5
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-prefetch -static -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
