| CPU2006 license: | 3 | Test date: | May-2011 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Mar-2011 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Dec-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E3-1280 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.90 GHz |
| CPU MHz: | 3500 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx8 PC3-10600E-9, ECC) |
| Disk Subsystem: | 1 x 250 GB 7.2 K SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

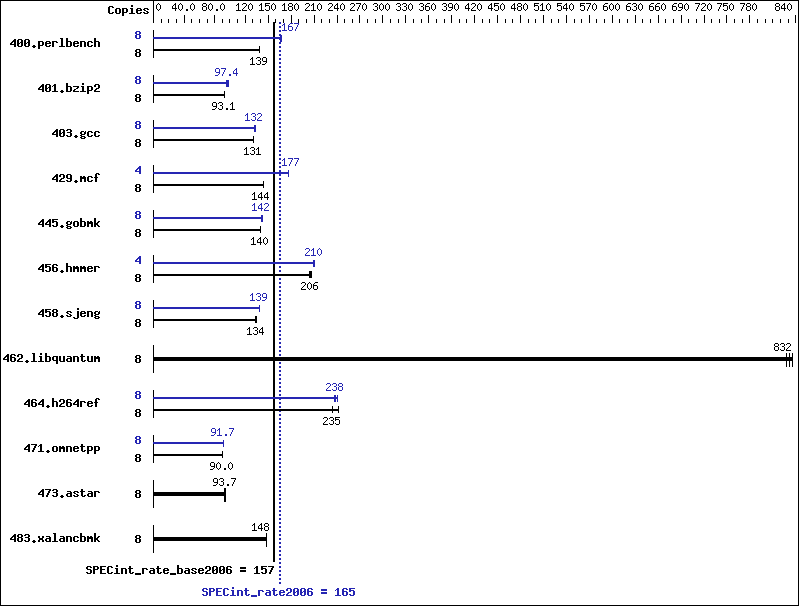

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 563 | 139 | 562 | 139 | 562 | 139 | 8 | 468 | 167 | 469 | 167 | 467 | 167 |
| 401.bzip2 | 8 | 833 | 92.7 | 830 | 93.1 | 829 | 93.1 | 8 | 791 | 97.6 | 793 | 97.4 | 806 | 95.8 |
| 403.gcc | 8 | 493 | 131 | 493 | 131 | 491 | 131 | 8 | 490 | 131 | 485 | 133 | 487 | 132 |
| 429.mcf | 8 | 508 | 144 | 509 | 143 | 508 | 144 | 4 | 207 | 177 | 206 | 177 | 207 | 176 |
| 445.gobmk | 8 | 599 | 140 | 602 | 139 | 600 | 140 | 8 | 590 | 142 | 591 | 142 | 594 | 141 |
| 456.hmmer | 8 | 366 | 204 | 363 | 206 | 360 | 207 | 4 | 178 | 209 | 177 | 211 | 177 | 210 |
| 458.sjeng | 8 | 722 | 134 | 717 | 135 | 721 | 134 | 8 | 700 | 138 | 696 | 139 | 698 | 139 |
| 462.libquantum | 8 | 199 | 832 | 200 | 828 | 198 | 835 | 8 | 199 | 832 | 200 | 828 | 198 | 835 |
| 464.h264ref | 8 | 757 | 234 | 730 | 242 | 754 | 235 | 8 | 736 | 241 | 744 | 238 | 747 | 237 |
| 471.omnetpp | 8 | 555 | 90.0 | 556 | 89.9 | 556 | 90.0 | 8 | 544 | 91.8 | 545 | 91.7 | 546 | 91.6 |
| 473.astar | 8 | 599 | 93.7 | 604 | 92.9 | 599 | 93.7 | 8 | 599 | 93.7 | 604 | 92.9 | 599 | 93.7 |
| 483.xalancbmk | 8 | 373 | 148 | 372 | 148 | 372 | 148 | 8 | 373 | 148 | 372 | 148 | 372 | 148 |
Submit Notes
numactl was used to bind copies to the cores The config file option 'submit' was used.
Operating System Notes
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 3600 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS configuration: HP Power Profile set to Maximum Performance Thermal Configuration set to Increased Cooling
General Notes
Binaries compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xAVX -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
