| CPU2006 license: | 55 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jul-2011 |
| Tested by: | Dell Inc. | Software Availability: | Apr-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7540 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.27 GHz |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 18 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 512 GB (64 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 1 x 500 GB 7200 RPM SAS 6Gb |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0 Update 3 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | None |

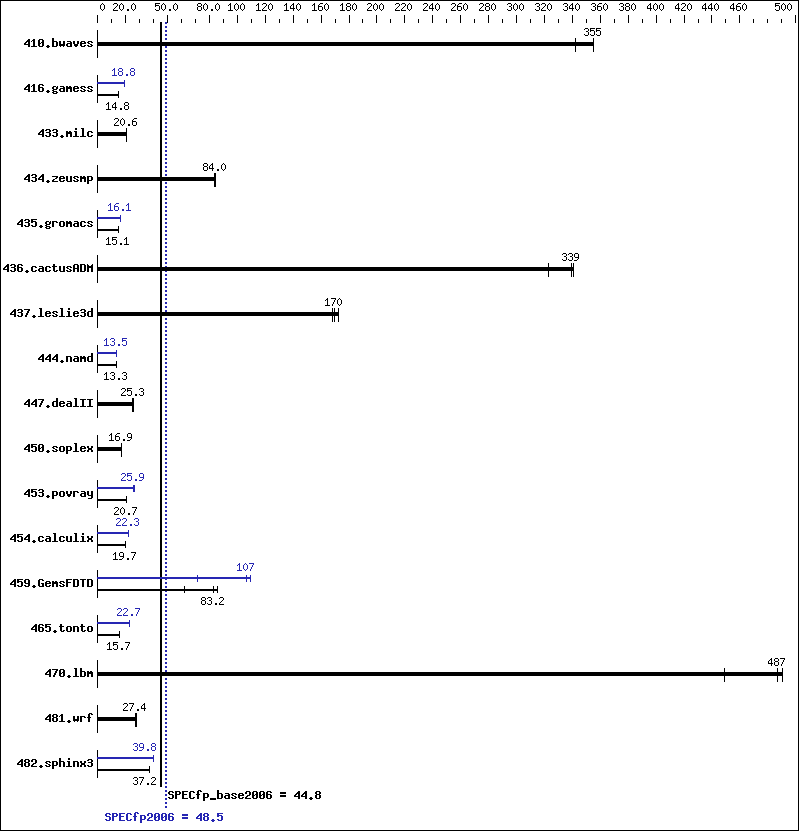

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 38.3 | 355 | 38.3 | 355 | 39.7 | 342 | 38.3 | 355 | 38.3 | 355 | 39.7 | 342 |
| 416.gamess | 1326 | 14.8 | 1323 | 14.8 | 1325 | 14.8 | 1039 | 18.8 | 1041 | 18.8 | 1039 | 18.8 |
| 433.milc | 448 | 20.5 | 446 | 20.6 | 445 | 20.6 | 448 | 20.5 | 446 | 20.6 | 445 | 20.6 |
| 434.zeusmp | 109 | 83.6 | 108 | 84.0 | 107 | 84.7 | 109 | 83.6 | 108 | 84.0 | 107 | 84.7 |
| 435.gromacs | 472 | 15.1 | 474 | 15.1 | 474 | 15.1 | 445 | 16.1 | 444 | 16.1 | 446 | 16.0 |
| 436.cactusADM | 35.0 | 341 | 37.0 | 323 | 35.2 | 339 | 35.0 | 341 | 37.0 | 323 | 35.2 | 339 |
| 437.leslie3d | 54.4 | 173 | 55.8 | 168 | 55.4 | 170 | 54.4 | 173 | 55.8 | 168 | 55.4 | 170 |
| 444.namd | 603 | 13.3 | 603 | 13.3 | 603 | 13.3 | 592 | 13.5 | 592 | 13.5 | 593 | 13.5 |
| 447.dealII | 458 | 25.0 | 452 | 25.3 | 451 | 25.4 | 458 | 25.0 | 452 | 25.3 | 451 | 25.4 |
| 450.soplex | 495 | 16.9 | 493 | 16.9 | 494 | 16.9 | 495 | 16.9 | 493 | 16.9 | 494 | 16.9 |
| 453.povray | 256 | 20.8 | 259 | 20.6 | 257 | 20.7 | 206 | 25.9 | 206 | 25.8 | 204 | 26.1 |
| 454.calculix | 421 | 19.6 | 417 | 19.8 | 418 | 19.7 | 370 | 22.3 | 370 | 22.3 | 371 | 22.2 |
| 459.GemsFDTD | 128 | 83.2 | 124 | 85.4 | 171 | 62.1 | 149 | 71.4 | 99.6 | 107 | 97.2 | 109 |
| 465.tonto | 625 | 15.7 | 628 | 15.7 | 620 | 15.9 | 438 | 22.5 | 434 | 22.7 | 433 | 22.7 |
| 470.lbm | 28.0 | 490 | 30.6 | 449 | 28.2 | 487 | 28.0 | 490 | 30.6 | 449 | 28.2 | 487 |
| 481.wrf | 404 | 27.7 | 415 | 26.9 | 408 | 27.4 | 404 | 27.7 | 415 | 26.9 | 408 | 27.4 |
| 482.sphinx3 | 522 | 37.3 | 523 | 37.2 | 524 | 37.2 | 489 | 39.8 | 489 | 39.8 | 490 | 39.8 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Node Interleaving = Enabled (Default = Disabled)
General Notes
The Dell PowerEdge R910 and the Bull NovaScale R480 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge R910 model. OMP_NUM_THREADS set to number of cores Binaries were compiled on RHEL5.5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | basepeak = yes |
| 470.lbm: | basepeak = yes |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | basepeak = yes |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 -ansi-alias |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias |
| 481.wrf: | basepeak = yes |
