SPEC® CFP2006 Result

Fujitsu

PRIMERGY TX140 S1, Intel Xeon E3-1240, 3.30 GHz

SPECfp®2006 = 59.5

SPECfp_base2006 = 56.8

CPU2006 license:	19	Test date:	Apr-2011
Test sponsor:	Fujitsu	Hardware Availability:	Jun-2011
Tested by:	Fujitsu	Software Availability:	Apr-2011

Hardware
CPU Name:	Intel Xeon E3-1240
CPU Characteristics:	Intel Turbo Boost Technology up to 3.70 GHz
CPU MHz:	3300
FPU:	Integrated
CPU(s) enabled:	4 cores, 1 chip, 4 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	8 GB (2 x 4 GB 2Rx8 PC3-10600E-9, ECC)
Disk Subsystem:	1 x SATA, 300 GB, 7200 RPM
Other Hardware:	--

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default
Compiler:	Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0 Update 3
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

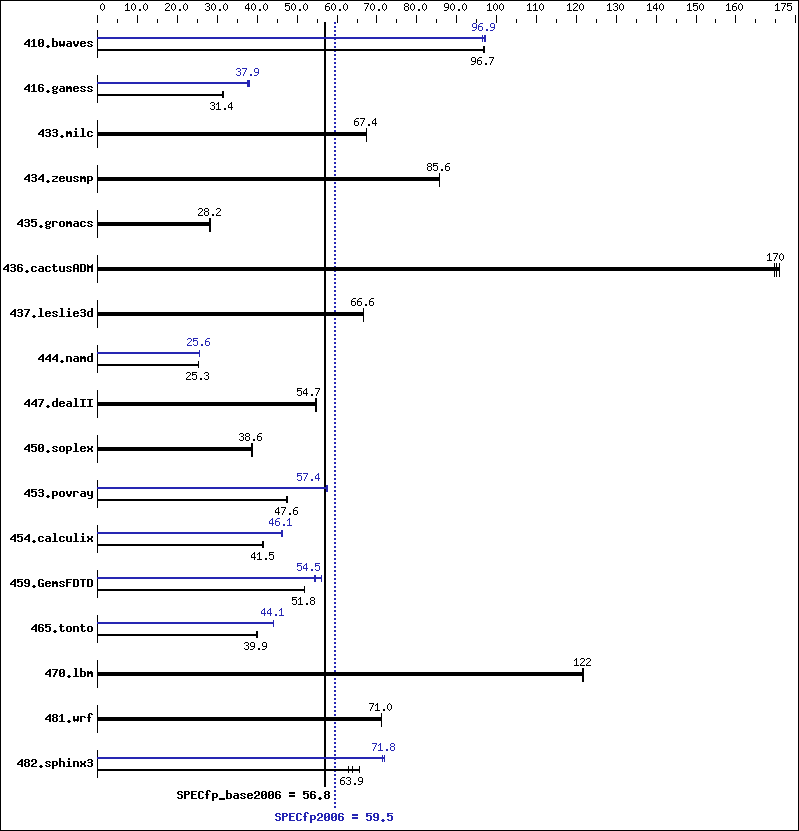

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	141	96.7	140	96.9	141	96.7	141	96.6	140	96.9	140	97.1
416.gamess	624	31.4	623	31.4	624	31.4	520	37.6	517	37.9	516	38.0
433.milc	136	67.5	136	67.4	136	67.4	136	67.5	136	67.4	136	67.4
434.zeusmp	106	85.6	106	85.6	106	85.6	106	85.6	106	85.6	106	85.6
435.gromacs	254	28.2	254	28.1	254	28.2	254	28.2	254	28.1	254	28.2
436.cactusADM	70.3	170	70.5	170	69.9	171	70.3	170	70.5	170	69.9	171
437.leslie3d	141	66.5	141	66.6	141	66.6	141	66.5	141	66.6	141	66.6
444.namd	316	25.3	316	25.3	317	25.3	313	25.6	313	25.6	313	25.6
447.dealII	210	54.5	209	54.8	209	54.7	210	54.5	209	54.8	209	54.7
450.soplex	216	38.6	216	38.6	216	38.7	216	38.6	216	38.6	216	38.7
453.povray	112	47.4	112	47.6	112	47.7	92.7	57.4	92.8	57.3	92.4	57.6
454.calculix	200	41.3	199	41.5	198	41.6	178	46.3	179	46.1	179	46.1
459.GemsFDTD	205	51.8	205	51.8	205	51.8	195	54.4	195	54.5	189	56.1
465.tonto	246	40.0	247	39.9	247	39.9	223	44.1	223	44.1	224	44.0
470.lbm	113	122	113	122	113	122	113	122	113	122	113	122
481.wrf	157	71.0	157	71.0	157	71.0	157	71.0	157	71.0	157	71.0
482.sphinx3	305	63.9	297	65.6	310	62.9	271	72.0	271	71.8	273	71.3

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
 echo 900 > /proc/sys/vm/nr_hugepages
 export HUGETLB_MORECORE=yes
 export LD_PRELOAD=/usr/lib64/libhugetlbfs.so

Platform Notes

 BIOS configuration:
 Intel HT Technology = Disable

General Notes

 OMP_NUM_THREADS set to number of cores
 For information about Fujitsu please visit: http://www.fujitsu.com
 Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
 This result was measured on the PRIMERGY TX120 S3. The PRIMERGY TX120 S3
 and the PRIMERGY TX140 S1 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	basepeak = yes
482.sphinx3:	-xAVX -ipo -O3 -no-prec-div -unroll2 -ansi-alias -parallel

C++ benchmarks:

444.namd:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32
447.dealII:	basepeak = yes
450.soplex:	basepeak = yes
453.povray:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Fortran benchmarks:

410.bwaves:	-xAVX -ipo -O3 -no-prec-div -opt-prefetch -parallel -static
416.gamess:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -opt-prefetch -parallel -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
465.tonto:	-xAVX(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

435.gromacs:	basepeak = yes
436.cactusADM:	basepeak = yes
454.calculix:	-xAVX -ipo -O3 -no-prec-div -auto-ilp32 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT
481.wrf:	basepeak = yes

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20110316.html,
http://www.spec.org/cpu2006/flags/Fujitsu-Platform-Intel-Linux64.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic12.0-linux64-revB.20110316.xml,
http://www.spec.org/cpu2006/flags/Fujitsu-Platform-Intel-Linux64.xml.
