| CPU2006 license: | 11 | Test date: | Apr-2011 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | May-2011 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7-4860 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.66 GHz |
| CPU MHz: | 2266 |
| FPU: | Integrated |
| CPU(s) enabled: | 40 cores, 4 chips, 10 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 256 GB (32 x 8 GB 4Rx8 PC3-8500R-7, ECC) |
| Disk Subsystem: | 4 x 50 GB SSD, RAID 0 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

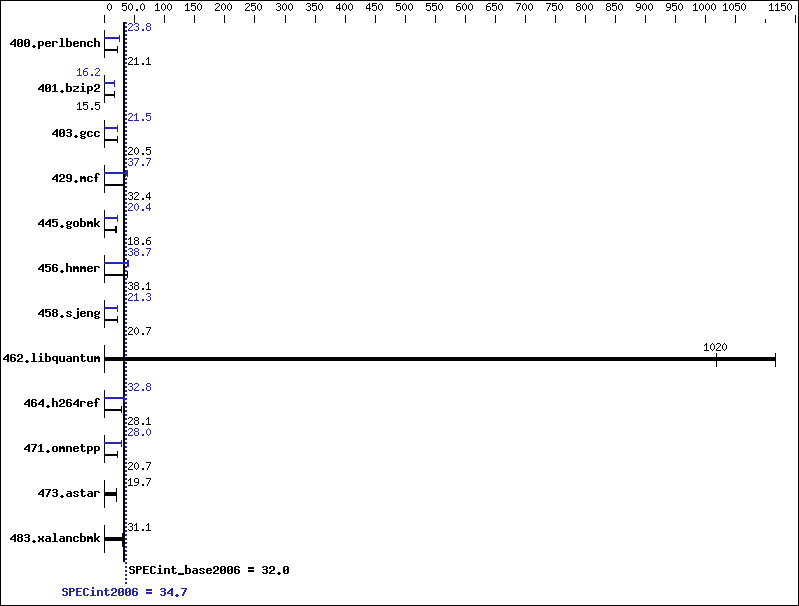

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 463 | 21.1 | 464 | 21.1 | 461 | 21.2 | 410 | 23.9 | 410 | 23.8 | 410 | 23.8 |
| 401.bzip2 | 624 | 15.5 | 625 | 15.5 | 624 | 15.5 | 596 | 16.2 | 596 | 16.2 | 596 | 16.2 |
| 403.gcc | 393 | 20.5 | 393 | 20.5 | 393 | 20.5 | 374 | 21.5 | 374 | 21.5 | 374 | 21.5 |
| 429.mcf | 279 | 32.7 | 282 | 32.4 | 282 | 32.4 | 242 | 37.7 | 269 | 33.9 | 241 | 37.8 |
| 445.gobmk | 583 | 18.0 | 565 | 18.6 | 555 | 18.9 | 513 | 20.4 | 514 | 20.4 | 514 | 20.4 |
| 456.hmmer | 245 | 38.0 | 245 | 38.1 | 245 | 38.1 | 241 | 38.6 | 241 | 38.7 | 241 | 38.7 |
| 458.sjeng | 586 | 20.7 | 586 | 20.7 | 586 | 20.7 | 569 | 21.3 | 569 | 21.3 | 569 | 21.3 |
| 462.libquantum | 20.4 | 1020 | 20.4 | 1020 | 18.6 | 1120 | 20.4 | 1020 | 20.4 | 1020 | 18.6 | 1120 |
| 464.h264ref | 790 | 28.0 | 789 | 28.1 | 785 | 28.2 | 674 | 32.8 | 674 | 32.8 | 674 | 32.8 |
| 471.omnetpp | 302 | 20.7 | 299 | 20.9 | 301 | 20.7 | 222 | 28.1 | 223 | 28.0 | 224 | 27.9 |
| 473.astar | 360 | 19.5 | 354 | 19.8 | 357 | 19.7 | 360 | 19.5 | 354 | 19.8 | 357 | 19.7 |
| 483.xalancbmk | 222 | 31.1 | 222 | 31.1 | 229 | 30.1 | 222 | 31.1 | 222 | 31.1 | 229 | 30.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run echo 1 > /proc/sys/vm/zone_reclaim_mode 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 52000 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Turbo Boost Power Optimization set to Traditional
General Notes
Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
