| CPU2006 license: | 20 | Test date: | Mar-2011 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Feb-2011 |
| Tested by: | Dell Inc. | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3067 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 146 GB 15000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

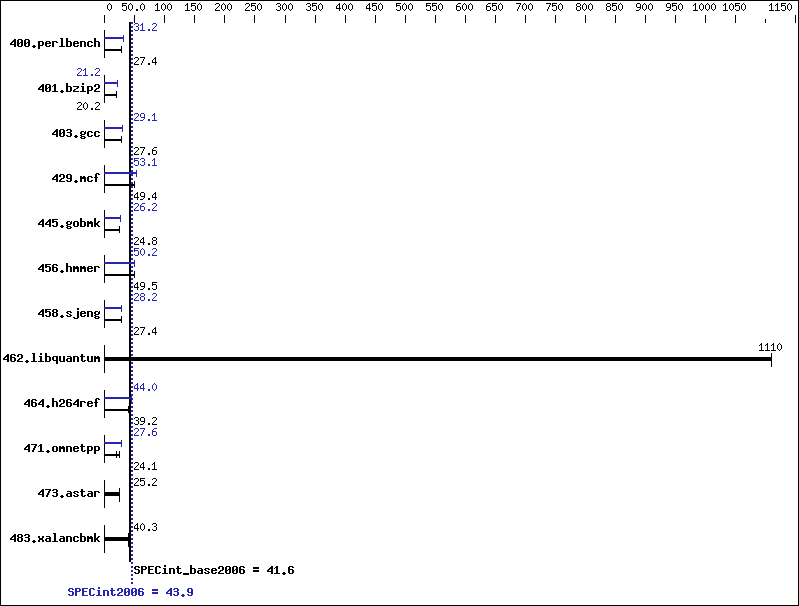

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 356 | 27.4 | 357 | 27.4 | 355 | 27.5 | 313 | 31.2 | 313 | 31.2 | 314 | 31.2 |
| 401.bzip2 | 479 | 20.1 | 478 | 20.2 | 478 | 20.2 | 456 | 21.2 | 456 | 21.2 | 456 | 21.2 |
| 403.gcc | 292 | 27.6 | 292 | 27.6 | 293 | 27.5 | 276 | 29.1 | 276 | 29.1 | 276 | 29.1 |
| 429.mcf | 185 | 49.4 | 185 | 49.4 | 185 | 49.4 | 172 | 53.0 | 172 | 53.1 | 171 | 53.3 |
| 445.gobmk | 424 | 24.8 | 423 | 24.8 | 424 | 24.8 | 400 | 26.2 | 400 | 26.2 | 400 | 26.2 |
| 456.hmmer | 189 | 49.5 | 189 | 49.4 | 189 | 49.5 | 186 | 50.2 | 186 | 50.2 | 186 | 50.2 |
| 458.sjeng | 441 | 27.4 | 441 | 27.4 | 441 | 27.4 | 429 | 28.2 | 429 | 28.2 | 429 | 28.2 |
| 462.libquantum | 18.7 | 1110 | 18.7 | 1110 | 18.7 | 1110 | 18.7 | 1110 | 18.7 | 1110 | 18.7 | 1110 |
| 464.h264ref | 565 | 39.2 | 568 | 39.0 | 565 | 39.2 | 503 | 44.0 | 503 | 44.0 | 503 | 44.0 |
| 471.omnetpp | 259 | 24.1 | 259 | 24.1 | 330 | 19.0 | 227 | 27.5 | 227 | 27.6 | 227 | 27.6 |
| 473.astar | 279 | 25.2 | 279 | 25.2 | 280 | 25.1 | 279 | 25.2 | 279 | 25.2 | 280 | 25.1 |
| 483.xalancbmk | 170 | 40.5 | 174 | 39.8 | 171 | 40.3 | 170 | 40.5 | 174 | 39.8 | 171 | 40.3 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 900 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
BIOS Settings: Power Management = Maximum Performance (Default = Active Power Controller) Data Reuse = Disabled (Default = Enabled) Logical Processor = Disabled (Default = Enabled)
General Notes
OMP_NUM_THREADS set to number of cores The Dell PowerEdge T710 and the Bull NovaScale T860 F2 models are electronically equivalent. The results have been measured on a Dell PowerEdge T710 model. Binaries were compiled on RHEL5.5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
