SPEC® CFP2006 Result

IBM Corporation

IBM System x3755 M3 (AMD Opteron 6180 SE)

SPECfp®_rate2006 = 661

SPECfp_rate_base2006 = 606

CPU2006 license:	11	Test date:	Mar-2011
Test sponsor:	IBM Corporation	Hardware Availability:	May-2011
Tested by:	IBM Corporation	Software Availability:	Jul-2010

Hardware
CPU Name:	AMD Opteron 6180 SE
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	48 cores, 4 chips, 12 cores/chip
CPU(s) orderable:	2,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	128 GB (32 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.5, Kernel 2.6.18-194.el5
Compiler:	x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

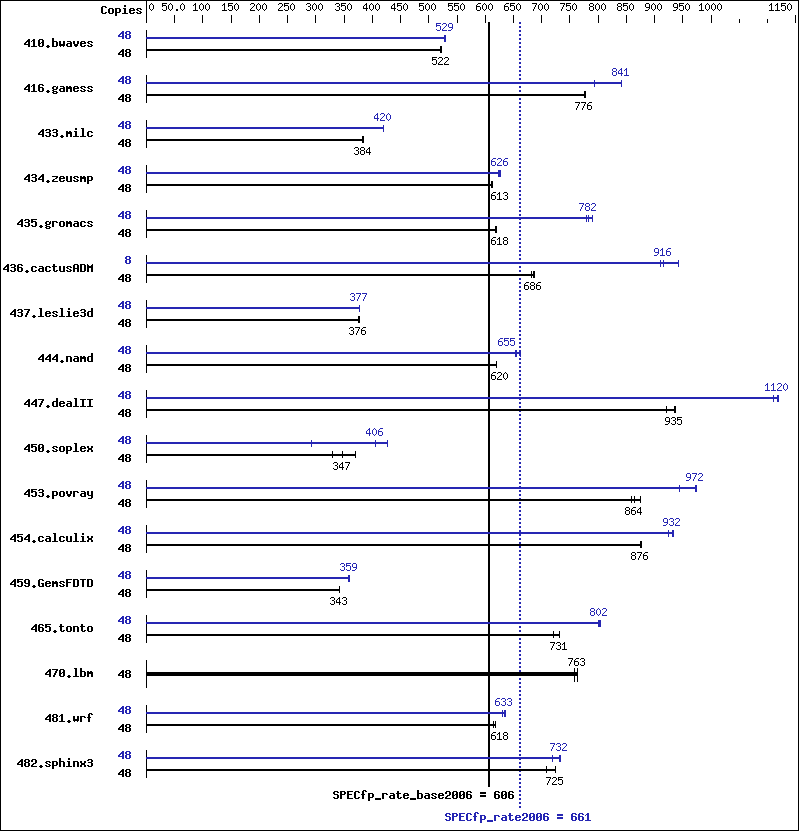

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	48	1251	522	1250	522	1247	523	48	1232	530	1235	528	1232	529
416.gamess	48	1211	776	1211	776	1208	778	48	1185	793	1118	841	1116	842
433.milc	48	1149	384	1149	383	1148	384	48	1049	420	1050	420	1048	421
434.zeusmp	48	713	613	714	612	713	613	48	700	624	698	626	697	627
435.gromacs	48	553	619	555	618	555	617	48	440	780	438	782	434	790
436.cactusADM	48	834	688	836	686	841	682	8	105	910	104	916	101	942
437.leslie3d	48	1199	376	1199	376	1197	377	48	1196	377	1197	377	1196	377
444.namd	48	621	620	621	620	621	620	48	590	653	582	662	588	655
447.dealII	48	586	937	596	922	587	935	48	491	1120	494	1110	491	1120
450.soplex	48	1218	329	1153	347	1083	370	48	1371	292	987	406	940	426
453.povray	48	297	859	292	875	296	864	48	263	972	271	944	262	974
454.calculix	48	452	877	452	876	452	876	48	425	932	424	933	428	925
459.GemsFDTD	48	1487	343	1487	343	1486	343	48	1421	358	1417	359	1414	360
465.tonto	48	646	731	655	721	646	731	48	590	801	589	802	588	803
470.lbm	48	865	763	869	759	865	763	48	865	763	869	759	865	763
481.wrf	48	866	619	867	618	872	615	48	849	631	847	633	843	636
482.sphinx3	48	1320	709	1290	725	1290	725	48	1278	732	1302	718	1276	733

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=21600 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

BIOS Settings:
 Operating Mode set to Performance Mode

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/root/speccpu_rate_revC-3/amd1002mc-rate-libs-revC/64:/root/speccpu_rate_revC-3/amd1002mc-rate-libs-revC/32"
OMP_NUM_THREADS = "6"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on SLES10 SP2 with binutils 2.18

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	basepeak = yes
482.sphinx3:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m
453.povray:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-march=barcelona -mso -O3 -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:interchange=off -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -GRA:prioritize_by_density=on -HP
437.leslie3d:	-march=barcelona -mso -Ofast -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -mso -Ofast -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -mso -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -mso -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m -LANG:heap_allocation_threshold=100
454.calculix:	-march=barcelona -mso -Ofast -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -LNO:prefetch_ahead=30 -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -m3dnow -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20101109.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
