SPEC® CFP2006 Result

Acer Incorporated

Gateway GW2000h-GW175h F1 (AMD Opteron 6140)

SPECfp®_rate2006 = 263

SPECfp_rate_base2006 = 242

CPU2006 license:	97	Test date:	Apr-2011
Test sponsor:	Acer Incorporated	Hardware Availability:	Feb-2011
Tested by:	Acer Incorporated	Software Availability:	Jul-2010

Hardware
CPU Name:	AMD Opteron 6140
CPU Characteristics:
CPU MHz:	2600
FPU:	Integrated
CPU(s) enabled:	16 cores, 2 chips, 8 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 4 cores
Other Cache:	None
Memory:	64 GB (16 x 4 GB 2Rx8 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 500 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) SP1 Kernel 2.6.32.12-0.7-default
Compiler:	x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (multiuser)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

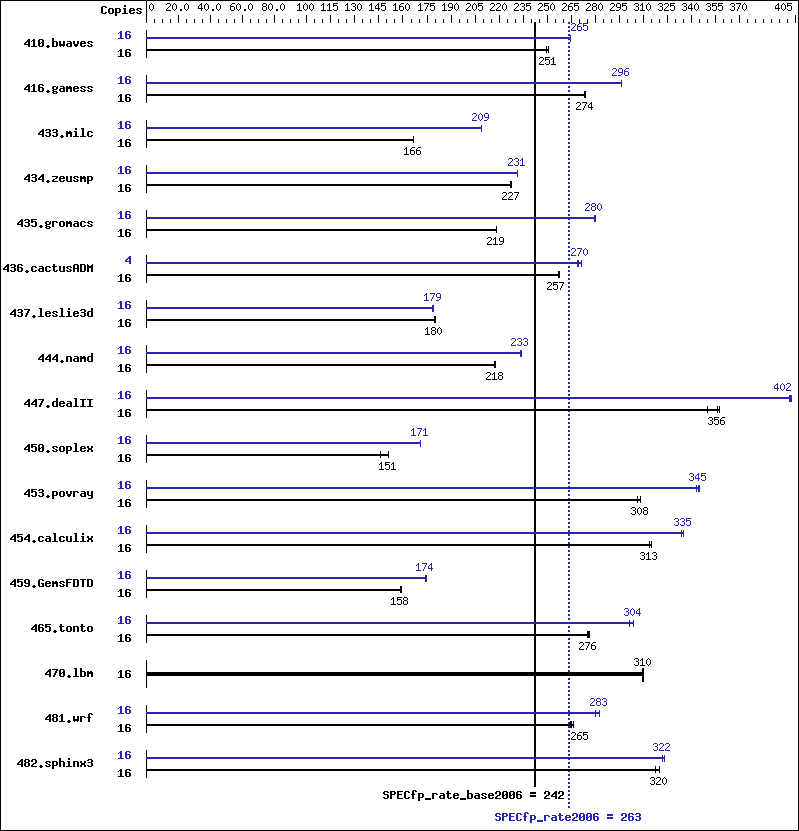

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	16	872	249	866	251	867	251	16	821	265	822	265	821	265
416.gamess	16	1144	274	1147	273	1145	274	16	1058	296	1057	296	1057	297
433.milc	16	883	166	882	167	882	166	16	703	209	702	209	702	209
434.zeusmp	16	640	228	640	227	640	227	16	629	231	630	231	628	232
435.gromacs	16	523	219	523	218	523	219	16	408	280	409	279	408	280
436.cactusADM	16	742	258	744	257	744	257	4	176	272	177	270	178	269
437.leslie3d	16	835	180	837	180	837	180	16	844	178	841	179	840	179
444.namd	16	591	217	589	218	590	218	16	550	233	550	233	549	234
447.dealII	16	514	356	512	357	523	350	16	455	402	456	401	456	402
450.soplex	16	915	146	884	151	885	151	16	781	171	781	171	780	171
453.povray	16	278	306	276	308	277	308	16	247	345	248	343	247	345
454.calculix	16	419	315	421	313	421	313	16	394	335	394	335	396	334
459.GemsFDTD	16	1072	158	1068	159	1071	158	16	974	174	974	174	973	174
465.tonto	16	570	276	570	276	573	275	16	519	304	518	304	522	301
470.lbm	16	708	310	710	310	710	310	16	708	310	710	310	710	310
481.wrf	16	673	265	670	267	676	265	16	633	283	632	283	638	280
482.sphinx3	16	974	320	975	320	982	318	16	969	322	969	322	965	323

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=14336 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "896"
LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-rate-libs-revC/64:/usr/cpu2006/amd1002-rate-libs-revC/32"
OMP_NUM_THREADS = "4"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64
Binaries were compiled on SLES10 SP2 with binutils 2.18
This result was measured on the Gateway GW2000h-GW175h F1.
The Acer AW2000h-AW175h F1 and Gateway GW2000h-GW175h F1 are electronically equivalent.

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	basepeak = yes
482.sphinx3:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m
453.povray:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-march=barcelona -mso -O3 -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:interchange=off -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -GRA:prioritize_by_density=on -HP
437.leslie3d:	-march=barcelona -mso -Ofast -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -mso -Ofast -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -mso -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -mso -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m -LANG:heap_allocation_threshold=100
454.calculix:	-march=barcelona -mso -Ofast -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -LNO:prefetch_ahead=30 -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -m3dnow -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
