| CPU2006 license: | 6 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Apr-2011 |
| Tested by: | Fujitsu | Software Availability: | Sep-2010 |
| Hardware | |
|---|---|
| CPU Name: | SPARC64 VII+ |
| CPU Characteristics: | |
| CPU MHz: | 2860 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 5632 KB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (8 x 4 GB, 2-way interleaved) |
| Disk Subsystem: | 1 x 300 GB 10,000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Solaris 10 9/10 |
| Compiler: | Oracle Solaris Studio 12.2 |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Apache C++ Standard Library V4.2.1 |

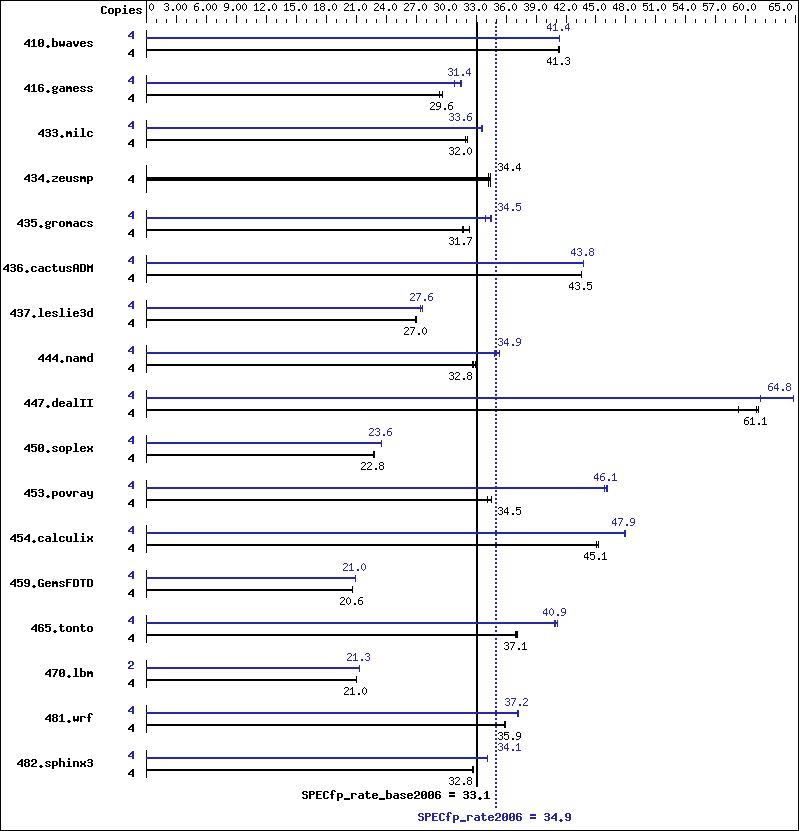

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1316 | 41.3 | 1315 | 41.3 | 1315 | 41.3 | 4 | 1314 | 41.4 | 1314 | 41.4 | 1314 | 41.4 |
| 416.gamess | 4 | 2640 | 29.7 | 2645 | 29.6 | 2673 | 29.3 | 4 | 2493 | 31.4 | 2480 | 31.6 | 2539 | 30.8 |
| 433.milc | 4 | 1148 | 32.0 | 1149 | 32.0 | 1144 | 32.1 | 4 | 1095 | 33.5 | 1093 | 33.6 | 1093 | 33.6 |
| 434.zeusmp | 4 | 1063 | 34.2 | 1058 | 34.4 | 1057 | 34.4 | 4 | 1063 | 34.2 | 1058 | 34.4 | 1057 | 34.4 |
| 435.gromacs | 4 | 883 | 32.3 | 902 | 31.7 | 901 | 31.7 | 4 | 828 | 34.5 | 840 | 34.0 | 828 | 34.5 |
| 436.cactusADM | 4 | 1098 | 43.5 | 1098 | 43.5 | 1097 | 43.6 | 4 | 1092 | 43.8 | 1092 | 43.8 | 1092 | 43.8 |
| 437.leslie3d | 4 | 1395 | 27.0 | 1392 | 27.0 | 1392 | 27.0 | 4 | 1363 | 27.6 | 1370 | 27.5 | 1358 | 27.7 |
| 444.namd | 4 | 975 | 32.9 | 982 | 32.7 | 979 | 32.8 | 4 | 922 | 34.8 | 909 | 35.3 | 920 | 34.9 |
| 447.dealII | 4 | 749 | 61.1 | 773 | 59.2 | 746 | 61.3 | 4 | 706 | 64.8 | 706 | 64.8 | 745 | 61.4 |
| 450.soplex | 4 | 1465 | 22.8 | 1468 | 22.7 | 1464 | 22.8 | 4 | 1415 | 23.6 | 1416 | 23.6 | 1416 | 23.6 |
| 453.povray | 4 | 616 | 34.6 | 617 | 34.5 | 623 | 34.2 | 4 | 461 | 46.1 | 464 | 45.9 | 462 | 46.1 |
| 454.calculix | 4 | 732 | 45.1 | 730 | 45.2 | 732 | 45.1 | 4 | 689 | 47.9 | 690 | 47.8 | 689 | 47.9 |
| 459.GemsFDTD | 4 | 2058 | 20.6 | 2060 | 20.6 | 2060 | 20.6 | 4 | 2025 | 21.0 | 2026 | 20.9 | 2024 | 21.0 |
| 465.tonto | 4 | 1061 | 37.1 | 1060 | 37.1 | 1067 | 36.9 | 4 | 957 | 41.1 | 961 | 40.9 | 962 | 40.9 |
| 470.lbm | 4 | 2613 | 21.0 | 2612 | 21.0 | 2612 | 21.0 | 2 | 1288 | 21.3 | 1287 | 21.3 | 1288 | 21.3 |
| 481.wrf | 4 | 1243 | 36.0 | 1244 | 35.9 | 1247 | 35.8 | 4 | 1198 | 37.3 | 1202 | 37.2 | 1202 | 37.2 |
| 482.sphinx3 | 4 | 2387 | 32.7 | 2380 | 32.8 | 2378 | 32.8 | 4 | 2283 | 34.2 | 2286 | 34.1 | 2285 | 34.1 |
Compiler Invocation Notes
Oracle Solaris Studio 12.2 is distributed with mandatory OS patches 118683-05 119963-20 120753-08 Oracle Solaris Studio 12.2 and patches are available at http://oracle.com/goto/solarisstudio The Apache C++ Standard Library V4.2.1 was installed from http://stdcxx.apache.org/download.html using: alias gmake=specmake gmake BUILDTYPE=8d CONFIG=sunpro.config
Submit Notes
Processes were assigned to specific processors using 'pbind' commands. The config file option 'submit' was used, along with a list of processors in the 'BIND' variable, to generate the pbind commands. (For details, please see the config file.)
Operating System Notes
ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).
System Tunables:
(/etc/system parameters)
tune_t_fsflushr=10
Controls how many seconds elapse between runs of the
page flush daemon, fsflush.
autoup=600
Causes pages older than the listed number of seconds to
be written by fsflush.
bufhwm=3000
Memory byte limit for caching I/O buffers.
segmap_percent=1
Set maximum percent memory for file system cache.
Other System Settings:
The "webconsole" service was turned off using
svcadm disable webconsole
Platform Notes
Memory is 2-way interleaved by filling all slots with the same capacity DIMMs. This result is measured on a SPARC Enterprise M3000 server from Fujitsu. The SPARC Enterprise M3000 server from Oracle and from Fujitsu are electrically equivalent.
General Notes
447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used. 447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.
Base Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Base Optimization Flags
C benchmarks:
| -fast -fma=fused -xipo=2 -xpagesize=4M -xlinkopt -xvector -xalias_level=std -xprefetch_auto_type=indirect_array_access -xprefetch_level=3 -xunroll=8 -ll2amm |
C++ benchmarks:
Fortran benchmarks:
| -fast -fma=fused -xipo=2 -xpagesize=4M -xlinkopt -xvector -xprefetch_level=2 -ll2amm |
Benchmarks using both Fortran and C:
| -fast(cc) -fast(f90) -fma=fused -xipo=2 -xpagesize=4M -xlinkopt -xvector -xalias_level=std -xprefetch_auto_type=indirect_array_access -xprefetch_level=3 -xunroll=8 -xprefetch_level=2 -ll2amm |
Base Other Flags
C benchmarks:
| -xjobs=4 -V -# |
C++ benchmarks:
| -xjobs=4 -verbose=diags,version |
Fortran benchmarks:
| -xjobs=4 -V -v |
Benchmarks using both Fortran and C:
| -xjobs=4 -V -# -v |
Peak Compiler Invocation
C benchmarks:
| cc |
C++ benchmarks:
| CC |
Fortran benchmarks:
| f90 |
Benchmarks using both Fortran and C:
| cc f90 |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
Fortran benchmarks:
| 410.bwaves: | -fast -fma=fused -xpagesize=4M -xipo=2 -xlinkopt -xprefetch_level=2 -xprefetch=latx:2 |
| 416.gamess: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -M /usr/lib/ld/map.bssalign -xipo=1 -xO3 -xinline= -xprefetch=no%auto -xunroll=3 -lfast -ll2amm -lbsdmalloc |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -M /usr/lib/ld/map.bssalign -xipo=1 -xO3 -xcache=generic -xprefetch=latx:2 -xunroll=10 -ll2amm |
| 459.GemsFDTD: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xipo=1 -xarch=sparcvis2 -xprefetch_auto_type=indirect_array_access -xprefetch_level=2 -xprefetch=latx:0.1 -xunroll=7 |
| 465.tonto: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -fma=fused -xpagesize=4M -xipo=2 -xprefetch=no%auto -xunroll=4 -lbsdmalloc |
Benchmarks using both Fortran and C:
| 435.gromacs: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -fma=fused -xpagesize=4M -xO4 -xchip=generic -xcache=generic -fsimple=0 -xprefetch=no%auto -xunroll=3 |
| 436.cactusADM: | -fast(cc) -fast(f90) -fma=fused -xpagesize=4M -xalias_level=std -xunroll=12 -lfast |
| 454.calculix: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -fma=fused -xpagesize=4M -xipo=2 -xcache=generic -xprefetch=latx:3 -xunroll=8 -xalias_level=std -lmopt |
| 481.wrf: | -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast(cc) -fast(f90) -fma=fused -xpagesize=4M -xalias_level=std -xipo=2 -xO4 -xcache=generic -xprefetch_auto_type=indirect_array_access -xprefetch=latx:1 |
