CPU2006 license: | 11 | Test date: | Jan-2011 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2011 |
Tested by: | IBM Corporation | Software Availability: | Jan-2011 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5687 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.86 GHz |
CPU MHz: | 3600 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4 GB 2Rx8 PC3-10600R-9, ECC) |
Disk Subsystem: | 2 x 50 GB SATA, SSD, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 11 SP1 (x86_64), Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ Compiler XE for applications running on IA-32 Version 12.0.1.116 Build 20101116 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V9.01 |

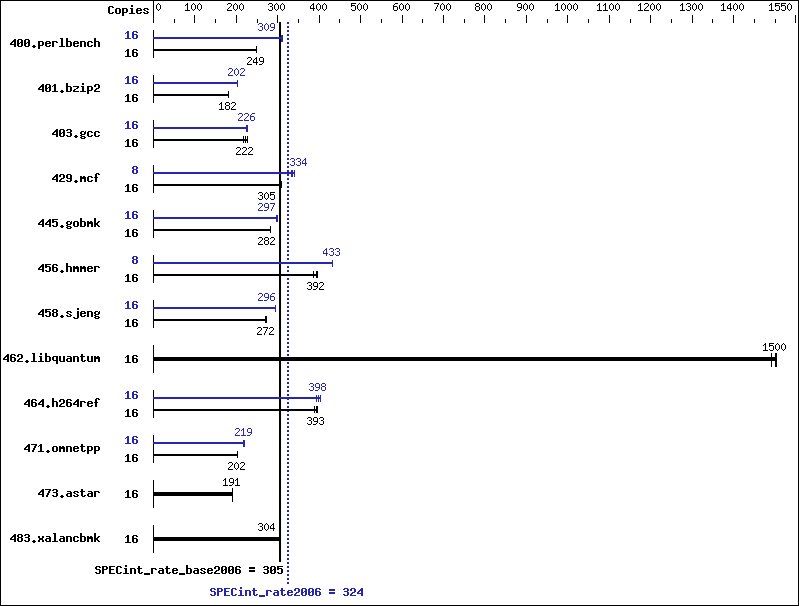

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 630 | 248 | 627 | 249 | 627 | 249 | 16 | 506 | 309 | 503 | 311 | 506 | 309 |
401.bzip2 | 16 | 851 | 181 | 849 | 182 | 849 | 182 | 16 | 764 | 202 | 763 | 202 | 763 | 202 |
403.gcc | 16 | 570 | 226 | 592 | 218 | 579 | 222 | 16 | 567 | 227 | 571 | 226 | 573 | 225 |
429.mcf | 16 | 479 | 305 | 478 | 305 | 473 | 308 | 8 | 218 | 334 | 219 | 333 | 214 | 341 |
445.gobmk | 16 | 595 | 282 | 593 | 283 | 595 | 282 | 16 | 560 | 300 | 565 | 297 | 565 | 297 |
456.hmmer | 16 | 378 | 395 | 380 | 392 | 388 | 385 | 8 | 172 | 433 | 172 | 433 | 173 | 432 |
458.sjeng | 16 | 709 | 273 | 711 | 272 | 715 | 271 | 16 | 655 | 296 | 655 | 295 | 655 | 296 |
462.libquantum | 16 | 221 | 1500 | 222 | 1490 | 220 | 1500 | 16 | 221 | 1500 | 222 | 1490 | 220 | 1500 |
464.h264ref | 16 | 900 | 393 | 892 | 397 | 909 | 390 | 16 | 901 | 393 | 877 | 404 | 889 | 398 |
471.omnetpp | 16 | 495 | 202 | 495 | 202 | 496 | 202 | 16 | 457 | 219 | 458 | 219 | 460 | 217 |
473.astar | 16 | 589 | 191 | 588 | 191 | 588 | 191 | 16 | 589 | 191 | 588 | 191 | 588 | 191 |
483.xalancbmk | 16 | 361 | 306 | 363 | 304 | 363 | 304 | 16 | 361 | 306 | 363 | 304 | 363 | 304 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run 'mount -t hugetlbfs nodev /mnt/hugepages' was used to enable large pages echo 10800 > /proc/sys/vm/nr_hugepages export HUGETLB_MORECORE=yes export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Turbo Mode enabled in BIOS Turbo Boost set to Traditional in BIOS Power C-states disabled in BIOS Demand Scrub disabled in BIOS
Binaries compiled on RHEL5.5
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
icc -m32 | |
400.perlbench: | icc -m64 |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
icpc -m32 |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
473.astar: | basepeak = yes |
483.xalancbmk: | basepeak = yes |
