| CPU2006 license: | 19 | Test date: | Feb-2011 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Feb-2011 |
| Tested by: | Fujitsu | Software Availability: | Jan-2011 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.47 GHz |
| CPU MHz: | 3067 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x SATA, 160 GB, 5400 RPM |
| Other Hardware: | -- |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

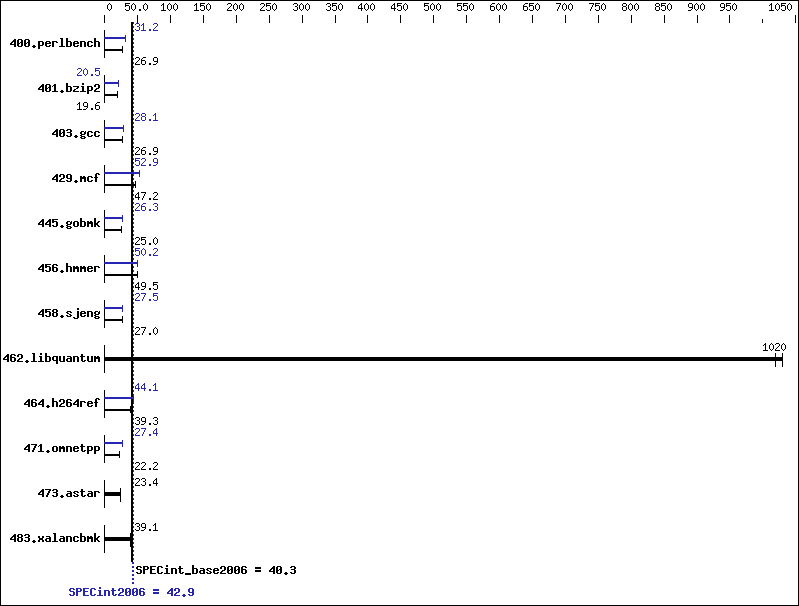

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 363 | 26.9 | 362 | 27.0 | 363 | 26.9 | 313 | 31.2 | 313 | 31.2 | 313 | 31.2 |
| 401.bzip2 | 492 | 19.6 | 492 | 19.6 | 492 | 19.6 | 470 | 20.5 | 471 | 20.5 | 471 | 20.5 |
| 403.gcc | 299 | 26.9 | 299 | 26.9 | 299 | 26.9 | 287 | 28.1 | 287 | 28.1 | 287 | 28.1 |
| 429.mcf | 192 | 47.4 | 193 | 47.2 | 193 | 47.2 | 173 | 52.8 | 172 | 53.0 | 172 | 52.9 |
| 445.gobmk | 420 | 25.0 | 420 | 25.0 | 420 | 25.0 | 399 | 26.3 | 399 | 26.3 | 400 | 26.3 |
| 456.hmmer | 189 | 49.5 | 188 | 49.5 | 188 | 49.6 | 186 | 50.2 | 186 | 50.2 | 186 | 50.2 |
| 458.sjeng | 447 | 27.0 | 448 | 27.0 | 448 | 27.0 | 439 | 27.5 | 439 | 27.5 | 452 | 26.7 |
| 462.libquantum | 20.1 | 1030 | 20.3 | 1020 | 20.3 | 1020 | 20.1 | 1030 | 20.3 | 1020 | 20.3 | 1020 |
| 464.h264ref | 563 | 39.3 | 565 | 39.2 | 563 | 39.3 | 502 | 44.1 | 502 | 44.1 | 502 | 44.1 |
| 471.omnetpp | 282 | 22.1 | 281 | 22.2 | 282 | 22.2 | 228 | 27.4 | 228 | 27.4 | 228 | 27.4 |
| 473.astar | 300 | 23.4 | 302 | 23.2 | 300 | 23.4 | 300 | 23.4 | 302 | 23.2 | 300 | 23.4 |
| 483.xalancbmk | 176 | 39.2 | 178 | 38.9 | 177 | 39.1 | 176 | 39.2 | 178 | 38.9 | 177 | 39.1 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages were not configured on the system
Platform Notes
BIOS configuration: Data Reuse Optimization = Disable Intel HT Technology = Disable
General Notes
OMP_NUM_THREADS set to number of cores For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
