| CPU2006 license: | 6 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Mar-2011 |
| Tested by: | Oracle Corporation | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3067 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
| CPU(s) orderable: | 1 or 2 chips per Sun Blade X6275 M2 node |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 96 GB (12 x 8 GB 2Rx4 PC3-10600R-9, ECC, per node) |
| Disk Subsystem: | 1 x 24 GB, SAS, Sun FlashDisk |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Linux 5.5 kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

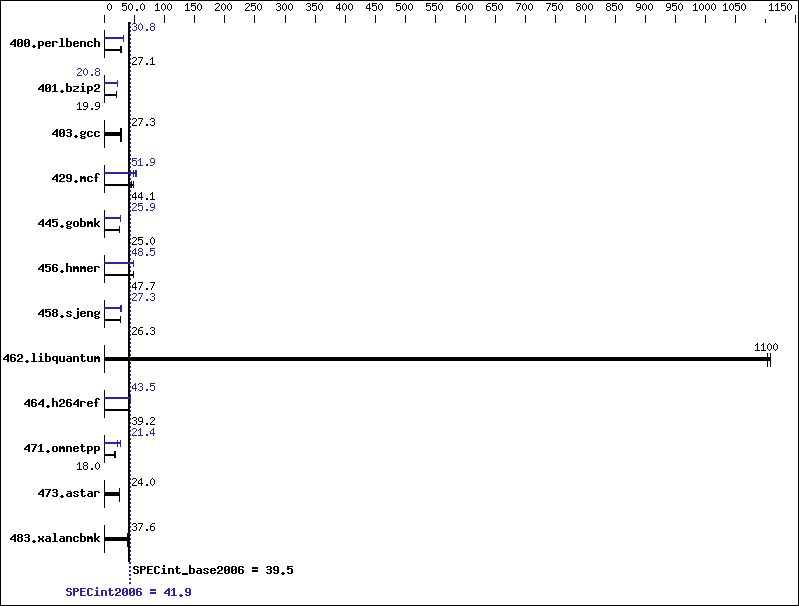

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 360 | 27.2 | 361 | 27.1 | 361 | 27.0 | 318 | 30.7 | 317 | 30.8 | 317 | 30.8 |
| 401.bzip2 | 486 | 19.9 | 484 | 19.9 | 485 | 19.9 | 463 | 20.8 | 463 | 20.8 | 463 | 20.8 |
| 403.gcc | 303 | 26.6 | 294 | 27.4 | 295 | 27.3 | 303 | 26.6 | 294 | 27.4 | 295 | 27.3 |
| 429.mcf | 207 | 44.1 | 218 | 41.9 | 189 | 48.2 | 191 | 47.8 | 175 | 52.2 | 176 | 51.9 |
| 445.gobmk | 419 | 25.0 | 419 | 25.0 | 420 | 25.0 | 405 | 25.9 | 405 | 25.9 | 405 | 25.9 |
| 456.hmmer | 196 | 47.6 | 196 | 47.7 | 196 | 47.7 | 192 | 48.5 | 192 | 48.5 | 192 | 48.6 |
| 458.sjeng | 456 | 26.6 | 461 | 26.2 | 461 | 26.3 | 443 | 27.3 | 449 | 26.9 | 442 | 27.4 |
| 462.libquantum | 18.8 | 1100 | 18.7 | 1110 | 18.8 | 1100 | 18.8 | 1100 | 18.7 | 1110 | 18.8 | 1100 |
| 464.h264ref | 560 | 39.5 | 564 | 39.2 | 566 | 39.1 | 509 | 43.5 | 509 | 43.5 | 509 | 43.4 |
| 471.omnetpp | 374 | 16.7 | 347 | 18.0 | 338 | 18.5 | 292 | 21.4 | 244 | 25.6 | 296 | 21.1 |
| 473.astar | 294 | 23.9 | 292 | 24.0 | 291 | 24.1 | 294 | 23.9 | 292 | 24.0 | 291 | 24.1 |
| 483.xalancbmk | 184 | 37.6 | 184 | 37.4 | 172 | 40.2 | 184 | 37.6 | 184 | 37.4 | 172 | 40.2 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 900 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Load Default BIOS Settings and then change the following Hardware Prefetch Enabled Adjacent Cache Line Prefetch Enabled L1 Data Prefetch Enabled
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter Binaries were compiled on RHEL5.5 with Binutils binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -parallel -opt-prefetch -auto-p32 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap64 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-ra-region-strategy=block -ansi-alias -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
