| CPU2006 license: | 6 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Oracle Corporation | Hardware Availability: | Mar-2011 |
| Tested by: | Oracle Corporation | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5690 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3467 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 300 GB 10000 RPM SAS2 |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Oracle Linux 5.5 kernel 2.6.18-194.el5 |
| Compiler: | Intel C++ and Fortran Intel 64 Compiler XE for applications running on Intel 64 Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

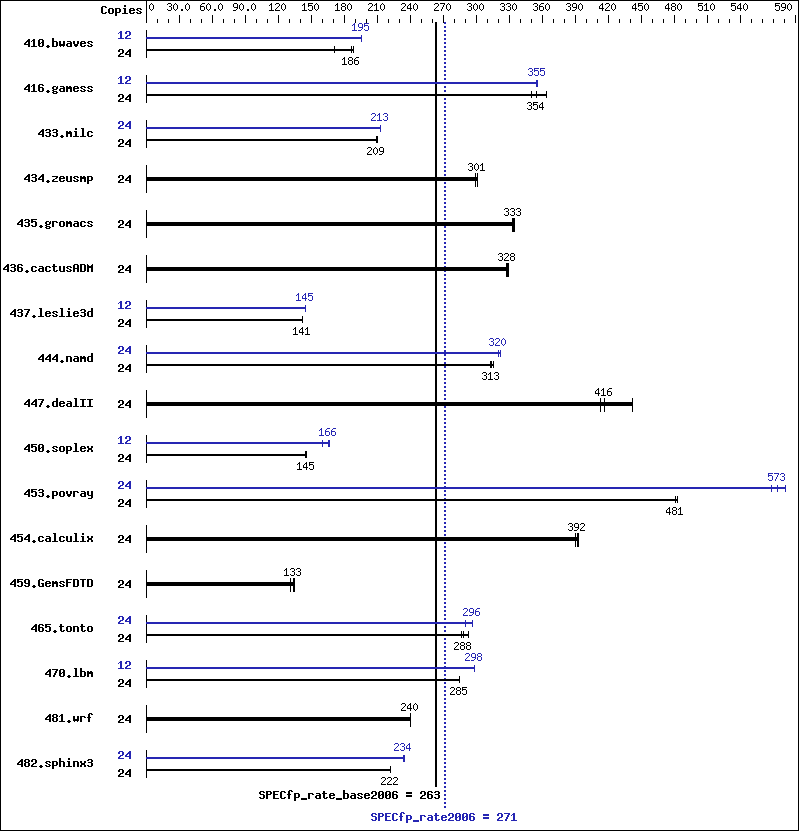

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 24 | 1910 | 171 | 1733 | 188 | 1750 | 186 | 12 | 835 | 195 | 834 | 196 | 836 | 195 |
| 416.gamess | 24 | 1326 | 354 | 1342 | 350 | 1294 | 363 | 12 | 661 | 356 | 661 | 355 | 664 | 354 |
| 433.milc | 24 | 1052 | 209 | 1051 | 210 | 1052 | 209 | 24 | 1036 | 213 | 1036 | 213 | 1037 | 213 |
| 434.zeusmp | 24 | 726 | 301 | 730 | 299 | 726 | 301 | 24 | 726 | 301 | 730 | 299 | 726 | 301 |
| 435.gromacs | 24 | 516 | 332 | 513 | 334 | 514 | 333 | 24 | 516 | 332 | 513 | 334 | 514 | 333 |
| 436.cactusADM | 24 | 873 | 328 | 871 | 329 | 876 | 327 | 24 | 873 | 328 | 871 | 329 | 876 | 327 |
| 437.leslie3d | 24 | 1593 | 142 | 1595 | 141 | 1594 | 141 | 12 | 781 | 144 | 779 | 145 | 780 | 145 |
| 444.namd | 24 | 611 | 315 | 615 | 313 | 615 | 313 | 24 | 599 | 321 | 601 | 320 | 601 | 320 |
| 447.dealII | 24 | 660 | 416 | 665 | 413 | 621 | 442 | 24 | 660 | 416 | 665 | 413 | 621 | 442 |
| 450.soplex | 24 | 1386 | 144 | 1375 | 146 | 1378 | 145 | 12 | 627 | 160 | 604 | 166 | 602 | 166 |
| 453.povray | 24 | 266 | 481 | 265 | 481 | 265 | 483 | 24 | 225 | 568 | 223 | 573 | 220 | 581 |
| 454.calculix | 24 | 508 | 390 | 505 | 392 | 505 | 392 | 24 | 508 | 390 | 505 | 392 | 505 | 392 |
| 459.GemsFDTD | 24 | 1942 | 131 | 1911 | 133 | 1893 | 135 | 24 | 1942 | 131 | 1911 | 133 | 1893 | 135 |
| 465.tonto | 24 | 826 | 286 | 807 | 293 | 819 | 288 | 24 | 797 | 296 | 814 | 290 | 796 | 297 |
| 470.lbm | 24 | 1158 | 285 | 1159 | 285 | 1158 | 285 | 12 | 554 | 298 | 553 | 298 | 553 | 298 |
| 481.wrf | 24 | 1117 | 240 | 1116 | 240 | 1117 | 240 | 24 | 1117 | 240 | 1116 | 240 | 1117 | 240 |
| 482.sphinx3 | 24 | 2106 | 222 | 2114 | 221 | 2109 | 222 | 24 | 2000 | 234 | 1996 | 234 | 2000 | 234 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Hugepages was enabled with the following:
'nodev /mnt/hugepages hugetlbfs defaults 0 0' added to /etc/fstab
echo 10800 > /proc/sys/vm/nr_hugepages
export HUGETLB_MORECORE=yes
export LD_PRELOAD=/usr/lib64/libhugetlbfs.so
Platform Notes
Load Default BIOS Settings and then change the following Data Reuse Optimization Disabled Hardware Prefetch Enabled Adjacent Cache Line Prefetch Enabled L1 Data Prefetch Enabled Intel Hyperthreading Options Enabled
General Notes
Binaries were compiled on RHEL5.5 with Binutils binutils-2.17.50.0.6-14.el5
Base Compiler Invocation
C benchmarks:
| icc -m64 |
C++ benchmarks:
| icpc -m64 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Fortran benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static |
Benchmarks using both Fortran and C:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -ansi-alias |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 482.sphinx3: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 450.soplex: | icpc -m32 |
Fortran benchmarks:
| ifort -m64 |
Benchmarks using both Fortran and C:
| icc -m64 ifort -m64 |
Peak Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static -auto-ilp32 |
| 470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -opt-prefetch -static -auto-ilp32 |
| 482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -unroll2 |
C++ benchmarks:
| 444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
| 447.dealII: | basepeak = yes |
| 450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
| 453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Fortran benchmarks:
| 410.bwaves: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -static |
| 416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll2 -inline-level=0 -scalar-rep- -static |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 -B /usr/share/libhugetlbfs/ -Wl,-melf_x86_64 -Wl,-hugetlbfs-link=BDT |
Benchmarks using both Fortran and C:
| 435.gromacs: | basepeak = yes |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | basepeak = yes |
| 481.wrf: | basepeak = yes |
