SPEC® CFP2006 Result

Dell Inc.

PowerEdge R815 (AMD Opteron 6176, 2.30 GHz)

SPECfp®_rate2006 = 323

SPECfp_rate_base2006 = 296

CPU2006 license:	55	Test date:	Oct-2010
Test sponsor:	Dell Inc.	Hardware Availability:	Feb-2011
Tested by:	Dell Inc.	Software Availability:	Jan-2011

Hardware
CPU Name:	AMD Opteron 6176
CPU Characteristics:
CPU MHz:	2300
FPU:	Integrated
CPU(s) enabled:	24 cores, 2 chips, 12 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache:	None
Memory:	64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem:	1 x 146 GB SAS 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default
Compiler:	x86 Open64 4.2.4 Compiler Suite (from AMD)
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

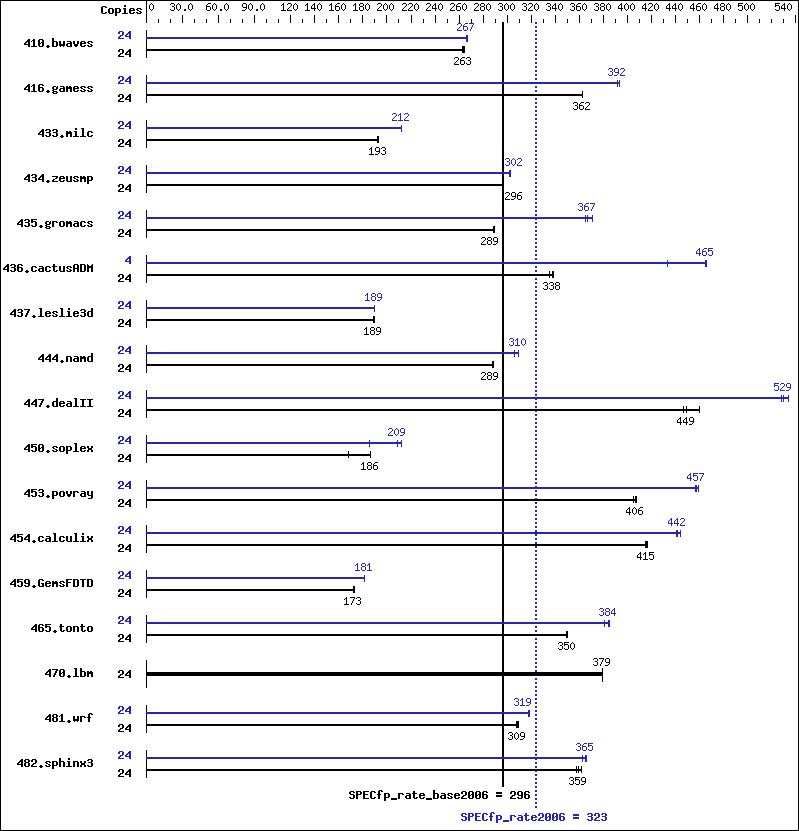

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	24	1238	263	1235	264	1242	263	24	1225	266	1224	267	1222	267
416.gamess	24	1296	363	1297	362	1297	362	24	1195	393	1199	392	1199	392
433.milc	24	1143	193	1144	193	1144	193	24	1040	212	1040	212	1040	212
434.zeusmp	24	738	296	737	296	736	297	24	722	302	724	302	723	302
435.gromacs	24	592	289	593	289	594	288	24	462	371	470	365	467	367
436.cactusADM	24	849	338	855	335	847	339	4	110	433	103	465	103	466
437.leslie3d	24	1194	189	1194	189	1191	189	24	1191	189	1189	190	1191	189
444.namd	24	669	288	666	289	667	289	24	629	306	622	310	622	310
447.dealII	24	611	449	614	447	597	460	24	520	528	519	529	514	534
450.soplex	24	1193	168	1075	186	1076	186	24	1081	185	959	209	945	212
453.povray	24	315	405	313	408	314	406	24	280	456	278	459	279	457
454.calculix	24	476	416	477	415	477	415	24	446	444	448	442	449	441
459.GemsFDTD	24	1469	173	1476	173	1480	172	24	1404	181	1402	182	1404	181
465.tonto	24	674	350	676	349	675	350	24	615	384	613	385	620	381
470.lbm	24	869	380	869	379	870	379	24	869	380	869	379	870	379
481.wrf	24	867	309	868	309	870	308	24	841	319	841	319	843	318
482.sphinx3	24	1308	358	1302	359	1294	361	24	1289	363	1279	366	1281	365

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152'  was used to set environment locked pages in memory limit

Set vm/nr_hugepages=10800 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

 BIOS Settings:
 Power Management = Maximum Performance (Default = Active Power Controller)

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/cpu2006/amd1002-rate-libs-revC/64:/cpu2006/amd1002-rate-libs-revC/32"
OMP_NUM_THREADS = "6"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Binaries were compiled on SLES10 SP2 with binutils 2.18

Base Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

opencc

C++ benchmarks:

openCC

Fortran benchmarks:

openf95

Benchmarks using both Fortran and C:

opencc openf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-march=barcelona -mso -Ofast -CG:movnti=1 -CG:local_sched_alg=1 -CG:locs_shallow_depth=1 -HP:bdt=2m:heap=2m -LNO:prefetch=3
470.lbm:	basepeak = yes
482.sphinx3:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=2 -CG:sse_cse_regs=0 -CG:locs_shallow_depth=1 -CG:cmp_peep=on -CG:local_sched_alg=1 -INLINE:aggressive=on

C++ benchmarks:

444.namd:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:ignore_feedback=off -CG:local_sched_alg=2 -CG:load_exe=0 -CG:compute_to=on -OPT:unroll_size=256 -fno-exceptions -HP:bdt=2m:heap=2m
447.dealII:	-march=barcelona -mso -Ofast -static -INLINE:aggressive=on -LNO:opt=0 -fno-emit-exceptions -m32 -OPT:unroll_times_max=8 -OPT:unroll_size=256 -OPT:unroll_level=2 -HP:bdt=2m:heap=2m -GRA:unspill=on -CG:cmp_peep=on -TENV:frame_pointer=off
450.soplex:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32 -HP:bdt=2m
453.povray:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-march=barcelona -mso -O3 -OPT:Ofast -OPT:treeheight=on -LNO:blocking=off -LNO:prefetch_ahead=5 -LNO:ignore_feedback=off -WOPT:aggstr=0 -HP:bdt=2m:heap=2m -CG:cmp_peep=on
416.gamess:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:fu=6 -LNO:blocking=0 -LNO:prefetch=0 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256 -HP:bdt=2m:heap=2m
434.zeusmp:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:interchange=off -OPT:treeheight=on -OPT:unroll_size=256 -CG:cmp_peep=on -GRA:prioritize_by_density=on -HP
437.leslie3d:	-march=barcelona -mso -Ofast -HP:bdt=2m:heap=2m
459.GemsFDTD:	-march=barcelona -mso -Ofast -LNO:fission=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:local_sched_alg=1 -HP
465.tonto:	-march=barcelona -mso -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -HP

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -mso -Ofast -OPT:rsqrt=2 -HP:bdt=2m:heap=2m
436.cactusADM:	-march=barcelona -mso -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -LNO:prefetch_ahead=1 -HP:bdt=2m:heap=2m -LANG:heap_allocation_threshold=100
454.calculix:	-march=barcelona -mso -Ofast -CG:load_exe=0 -CG:ptr_load_use=0 -CG:local_sched_alg=2 -CG:compute_to=on -LNO:prefetch_ahead=30 -WOPT:unroll=2 -GRA:optimize_boundary=on -HP:bdt=2m:heap=2m
481.wrf:	-march=barcelona -mso -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -m3dnow -HP

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.html,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-424-flags-rate-revC.20100901.xml,
http://www.spec.org/cpu2006/flags/amd-platform-rate-revC.xml.
