| CPU2006 license: | 3 | Test date: | Jan-2011 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Oct-2010 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X7560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
| CPU MHz: | 2266 |
| FPU: | Integrated |
| CPU(s) enabled: | 64 cores, 8 chips, 8 cores/chip, 2 threads/core |
| CPU(s) orderable: | 4, 8 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 24 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 1 TB (128 x 8 GB 2Rx4 PC3-10600R-9, ECC, running at 1066 MHz) |
| Disk Subsystem: | 2x 146 GB 15K SAS |
| Other Hardware: | 512 MB FBWC Module for P410i SmartArray |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) SP1 Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ and Fortran Composer XE 2011 for IA32 and Intel 64, Version 12.0.1.116 Build 20101116 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V9.01 |

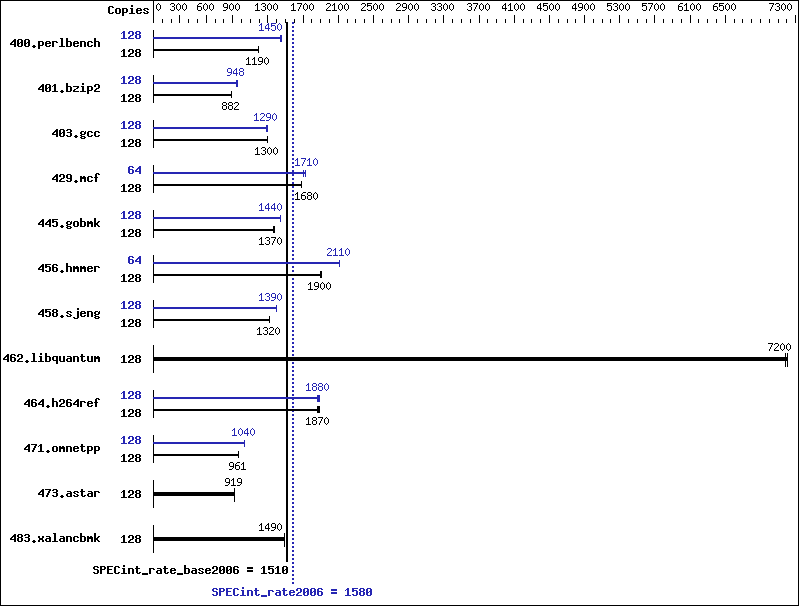

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 128 | 1047 | 1190 | 1051 | 1190 | 1046 | 1200 | 128 | 866 | 1440 | 862 | 1450 | 858 | 1460 |
| 401.bzip2 | 128 | 1400 | 882 | 1400 | 882 | 1399 | 883 | 128 | 1300 | 950 | 1305 | 947 | 1303 | 948 |
| 403.gcc | 128 | 799 | 1290 | 793 | 1300 | 794 | 1300 | 128 | 796 | 1290 | 799 | 1290 | 804 | 1280 |
| 429.mcf | 128 | 692 | 1690 | 693 | 1680 | 694 | 1680 | 64 | 342 | 1710 | 339 | 1720 | 342 | 1710 |
| 445.gobmk | 128 | 980 | 1370 | 980 | 1370 | 981 | 1370 | 128 | 930 | 1440 | 931 | 1440 | 931 | 1440 |
| 456.hmmer | 128 | 630 | 1900 | 628 | 1900 | 627 | 1900 | 64 | 283 | 2110 | 283 | 2110 | 283 | 2110 |
| 458.sjeng | 128 | 1175 | 1320 | 1177 | 1320 | 1177 | 1320 | 128 | 1112 | 1390 | 1111 | 1390 | 1112 | 1390 |
| 462.libquantum | 128 | 368 | 7200 | 369 | 7190 | 368 | 7210 | 128 | 368 | 7200 | 369 | 7190 | 368 | 7210 |
| 464.h264ref | 128 | 1504 | 1880 | 1513 | 1870 | 1523 | 1860 | 128 | 1506 | 1880 | 1509 | 1880 | 1515 | 1870 |
| 471.omnetpp | 128 | 832 | 961 | 833 | 961 | 833 | 961 | 128 | 772 | 1040 | 772 | 1040 | 772 | 1040 |
| 473.astar | 128 | 976 | 920 | 978 | 919 | 981 | 916 | 128 | 976 | 920 | 978 | 919 | 981 | 916 |
| 483.xalancbmk | 128 | 595 | 1480 | 595 | 1490 | 595 | 1490 | 128 | 595 | 1480 | 595 | 1490 | 595 | 1490 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
I/O scheduler for the device holding the filesystem set to "noop" SPEC files placed in /dev/shm/cpu2006 with /dev/shm mounted as tmpfs with mpol=interleave 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run Hugepages were not configured on the system
Platform Notes
Power Regulator set to HP Static High Performance Mode
General Notes
Binaries were compiled on RHEL5.5 with binutils-2.17.50.0.6-14.el5
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/smartheap -lsmartheap -B /usr/share/libhugetlbfs/ -Wl,-hugetlbfs-link=BDT |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 400.perlbench: | icc -m64 |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks:
| icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/smartheap -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
