SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

SPARC T3-4

CPU2006 license: 6 Test date: Aug-2010
Test sponsor: Oracle Corporation Hardware Availability: Dec-2010
Tested by: Oracle Corporation Software Availability: Sep-2010

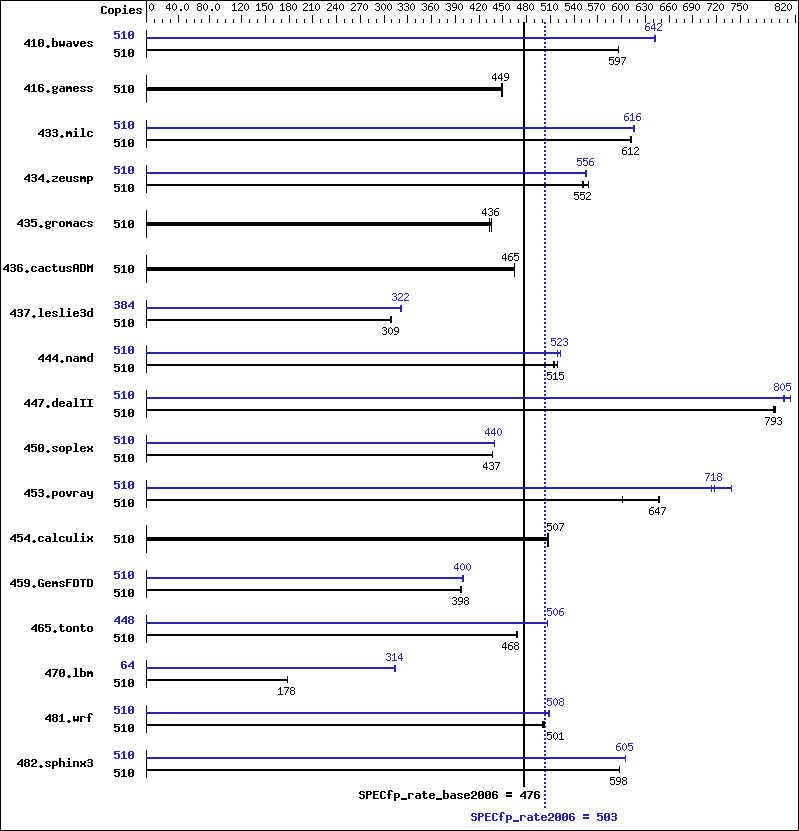

Benchmark results graph
Hardware
CPU Name: SPARC T3
CPU Characteristics:
CPU MHz: 1649
FPU: Integrated
CPU(s) enabled: 64 cores, 4 chips, 16 cores/chip, 8 threads/core
CPU(s) orderable: 1 to 4 chips
Primary Cache: 16 KB I + 8 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 512 GB (64 x 8 GB)
Disk Subsystem: 821 GB (zfs 3 x 2-way mirrors on
6x SAS 300G 10000 RPM)
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 510 11615 597 11614 597 11618 597 510 10771 643 10803 642 10795 642
416.gamess 510 22263 449 22236 449 22257 449 510 22263 449 22236 449 22257 449
433.milc 510 7647 612 7652 612 7646 612 510 7602 616 7605 616 7604 616
434.zeusmp 510 8314 558 8406 552 8422 551 510 8366 555 8347 556 8345 556
435.gromacs 510 8355 436 8348 436 8407 433 510 8355 436 8348 436 8407 433
436.cactusADM 510 13120 465 13107 465 13096 465 510 13120 465 13107 465 13096 465
437.leslie3d 510 15585 308 15513 309 15522 309 384 11243 321 11211 322 11190 323
444.namd 510 7964 514 7888 519 7943 515 510 7827 523 7878 519 7827 523
447.dealII 510 7358 793 7342 795 7366 792 510 7246 805 7248 805 7179 813
450.soplex 510 9736 437 9731 437 9736 437 510 9677 440 9673 440 9667 440
453.povray 510 4509 602 4188 648 4196 647 510 3800 714 3669 739 3781 718
454.calculix 510 8314 506 8306 507 8292 507 510 8314 506 8306 507 8292 507
459.GemsFDTD 510 13604 398 13588 398 13654 396 510 13521 400 13527 400 13540 400
465.tonto 510 10720 468 10725 468 10725 468 448 8713 506 8708 506 8708 506
470.lbm 510 39308 178 39319 178 39349 178 64 2800 314 2801 314 2802 314
481.wrf 510 11338 502 11363 501 11384 500 510 11233 507 11192 509 11205 508
482.sphinx3 510 16626 598 16631 598 16623 598 510 16418 605 16415 606 16422 605

Compiler Invocation Notes

 Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
  118683-05  119963-20  120753-08
 Oracle Solaris Studio 12.2 and patches are available at
  http://oracle.com/goto/solarisstudio

Submit Notes

Processes were bound to cores using "submit" and "pbind".  The config
file option 'submit' was used in order to accomplish this.

Operating System Notes


ulimit -s 131072 was used to limit the space
consumed by the stack (and therefore make more
space available to the heap).

 /etc/system parameters
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    lpg_alloc_prefer=1
        Indicates that extra effort should be taken to ensure
        that pages are created in the nearby lgroup (NUMA location).
    tsb_rss_factor=128
        Suggests that the the size of the TSB (Translation
        Storage Buffer) may be increased if it is more than
        25% (128/512) full.  Doing so may reduce TSB traps,
        at the cost of additional kernel memory.
    zfs:zfs_arc_max=0x10000000
    zfs:zfs_arc_min=0x10000000
        Limits the consumption of memory by the zfs file system
        cache to 256 MB.  (The arc_max sets the maximum cache
        size; arc_min sets the minimum.)
    zfs:zfs_prefetch_disable = 1
        Indicates that prefetching is not desired.  This setting
        may be desirable when the file system cache is small.
 USB devices were turned off with ILOM command
    set /SYS/MB/USB component_state=disabled
 The "webconsole" service was turned off using
     svcadm disable webconsole
 The system had 437 GB of swap space.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -g0   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign

Fortran benchmarks:

 -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -M /usr/lib/ld/map.bssalign

Benchmarks using both Fortran and C:

 -g   -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -M /usr/lib/ld/map.bssalign

Base Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -xalias_level=std   -fsimple=1
470.lbm:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xipo=2   -xrestrict
482.sphinx3:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xinline=   -xprefetch_level=2   -Wc,-Qlp-ol=1   -xrestrict   -xalias_level=strong   -fsimple=1   -xlinkopt=2   -lfast

C++ benchmarks:

444.namd:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xprefetch_level=1   -xlinkopt=2
447.dealII:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xrestrict
450.soplex:  -g0   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign
453.povray:  -g0   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xdepend   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xrestrict   -xlinkopt=2

Fortran benchmarks:

410.bwaves:  -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=3   -M /usr/lib/ld/map.bssalign
416.gamess:  basepeak = yes
434.zeusmp:  -g   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=1   -qoption cg -Qeps:enabled=1   -qoption cg -Qeps:ws=8   -lmopt
437.leslie3d:  -g   -fast   -fma=fused   -xpagesize_heap=4M   -xpagesize_stack=64K   -M /usr/lib/ld/map.bssalign   -xprefetch_level=3   -xprefetch=latx:1.6   -qoption cg -Qlp=1   -qoption cg -Qlp-fa=0   -qoption cg -Qlp-fl=1   -qoption cg -Qlp-av=448   -qoption cg -Qlp-t=4
459.GemsFDTD:  -g   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch=no%auto   -M /usr/lib/ld/map.bssalign
465.tonto:  -g   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  -g   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xlinkopt=2

Peak Other Flags

C benchmarks:

 -xjobs=32   -V   -#

C++ benchmarks:

 -xjobs=32   -verbose=diags,version

Fortran benchmarks:

 -xjobs=32   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=32   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.20110110.xml.
