SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Supermicro

Supermicro A+ Server AS-2022G-URF4+,
AMD Opteron 6180 SE

SPECint®2006 = 23.8

CPU2006 license: 001176 Test date: Dec-2010
Test sponsor: Supermicro Hardware Availability: Feb-2011
Tested by: Supermicro Software Availability: May-2010

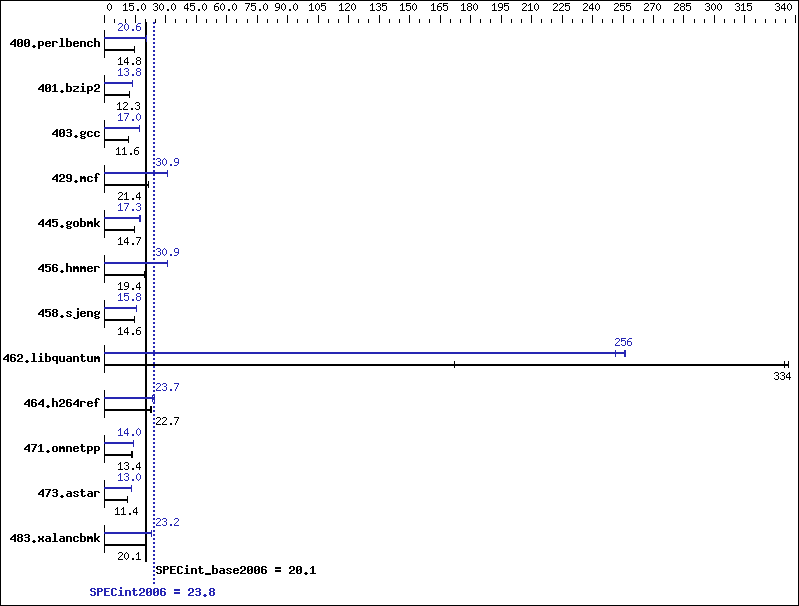

Benchmark results graph
Hardware
CPU Name: AMD Opteron 6180 SE
CPU Characteristics:
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 24 cores, 2 chips, 12 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip, 6 MB shared / 6 cores
Other Cache: None
Memory: 64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC)
Disk Subsystem: 1 x 500 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.5,
Kernel 2.6.18-194.el5
Compiler: x86 Open64 4.2.3.2 Compiler Suite (from AMD)
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 659   14.8 660 14.8 660   14.8 474   20.6 478   20.4 473   20.6
401.bzip2 788   12.2 777 12.4 786   12.3 699   13.8 699   13.8 700   13.8
403.gcc 692   11.6 694 11.6 693   11.6 474   17.0 475   17.0 474   17.0
429.mcf 426   21.4 424 21.5 426   21.4 295   30.9 295   30.9 295   30.9
445.gobmk 714   14.7 714 14.7 714   14.7 605   17.3 605   17.4 605   17.3
456.hmmer 479   19.5 480 19.4 481   19.4 301   30.9 302   30.9 300   31.1
458.sjeng 827   14.6 829 14.6 826   14.7 764   15.8 766   15.8 769   15.7
462.libquantum 61.6 336   120 172   62.0 334   81.0 256   82.5 251   80.8 256
464.h264ref 994   22.3 970 22.8 974   22.7 933   23.7 934   23.7 909   24.3
471.omnetpp 470   13.3 466 13.4 466   13.4 446   14.0 447   14.0 445   14.1
473.astar 615   11.4 615 11.4 615   11.4 540   13.0 540   13.0 540   13.0
483.xalancbmk 344   20.1 345 20.0 344   20.1 298   23.2 298   23.2 298   23.1

Submit Notes

The config file option 'submit' was used.
'numactl' was used to bind copies to the cores.
See the configuration file for details.

Operating System Notes

'ulimit -s unlimited' was used to set environment stack size
'ulimit -l 2097152' was used to set environment locked pages in memory limit

Set vm/nr_hugepages=4000 in /etc/sysctl.conf
mount -t hugetlbfs nodev /mnt/hugepages

cpuspeed stop was used to set the CPU frequency to its maximum.

Platform Notes

 Fan speed set to Full Speed in BIOS Setup.
 The system uses a Supermicro H8DGU-LN4F+ motherboard.

General Notes

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-speed-libs-revA/64:/usr/cpu2006/amd1002-speed-libs-revA/32"
O64_OMP_AFFINITY_MAP = "0,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23"
O64_OMP_SPIN_USER_LOCK = "true"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64

Base Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -march=barcelona   -Ofast   -apo   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m,limit=450   -LNO:parallel_overhead=10000

C++ benchmarks:

 -march=barcelona   -Ofast   -m32   -INLINE:aggressive=on   -CG:cmp_peep=on   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

Peak Compiler Invocation

C benchmarks:

 opencc

C++ benchmarks:

 openCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -WOPT:if_conv=0   -CG:local_sched_alg=1   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
401.bzip2:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -OPT:goto=off   -CG:local_sched_alg=1   -HP:bdt=2m:heap=2m
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:cmp_peep=on   -m32   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -IPA:small_pu=200
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -HP:bdt=2m:heap=2m
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -ipa   -IPA:plimit=750   -IPA:min_hotness=300   -IPA:pu_reorder=1   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on   -CG:unroll_fb_req=on   -HP:bdt=2m:heap=2m
456.hmmer:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:prefetch=0   -OPT:alias=disjoint   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -OPT:keep_ext=on   -CG:local_sched_alg=1   -CG:cflow=0   -CG:push_pop_int_saved_regs=off   -CG:cmp_peep=on   -HP:bdt=2m:heap=2m
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -IPA:min_hotness=32   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m
462.libquantum:  -march=barcelona   -Ofast   -apo   -LNO:pf2=0   -CG:gcm=off   -CG:use_prefetchnta=on   -CG:cmp_peep=on   -WOPT:aggstr=0   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:space=1000   -IPA:plimit=20000   -mso
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -HP:bdt=2m:heap=2m

C++ benchmarks:

471.omnetpp:  -march=barcelona   -Ofast   -CG:gcm=off   -INLINE:aggressive=on   -WOPT:if_conv=0   -m32   -HP:bdt=2m:heap=2m
473.astar:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -GRA:optimize_boundary=on   -OPT:alias=disjoint   -INLINE:aggressive=on   -IPA:small_pu=3000   -IPA:plimit=3000   -m32   -HP:bdt=2m:heap=2m
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -CG:cmp_peep=on   -GRA:unspill=on   -TENV:frame_pointer=off   -fno-emit-exceptions   -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.html,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/x86-open64-423-flags-speed-revA.20101207.xml,
http://www.spec.org/cpu2006/flags/amd-platform-speed-revA.20101207.xml.
