CPU2006 license: | 001176 | Test date: | Nov-2010 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
Tested by: | Supermicro | Software Availability: | Jul-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6174 |
CPU Characteristics: | |
CPU MHz: | 2200 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
Disk Subsystem: | 1 x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | x86 Open64 4.2.4 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils 2.18 SmartHeap 8.1 32-bit Library for Linux |

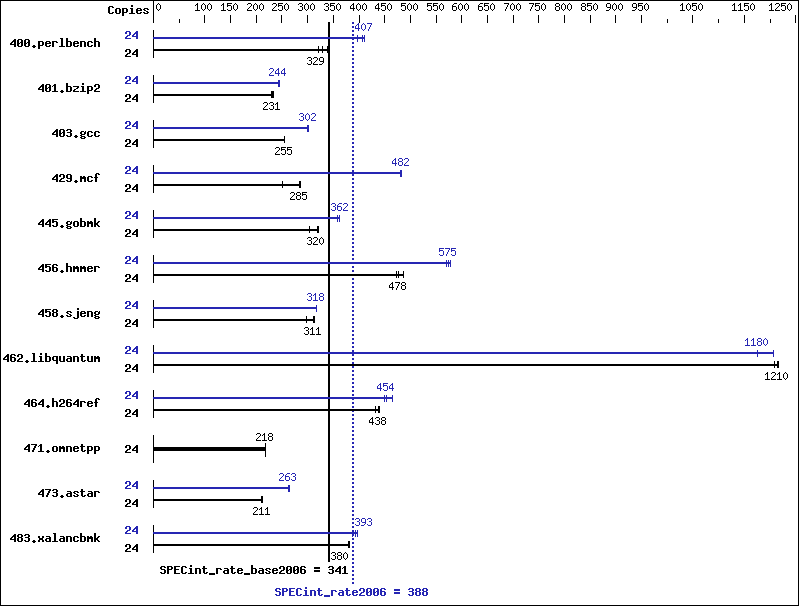

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 694 | 338 | 714 | 329 | 729 | 322 | 24 | 590 | 398 | 571 | 411 | 576 | 407 |
401.bzip2 | 24 | 994 | 233 | 1004 | 231 | 1008 | 230 | 24 | 950 | 244 | 944 | 245 | 952 | 243 |
403.gcc | 24 | 758 | 255 | 755 | 256 | 758 | 255 | 24 | 639 | 303 | 639 | 302 | 643 | 301 |
429.mcf | 24 | 766 | 286 | 870 | 251 | 768 | 285 | 24 | 454 | 482 | 454 | 482 | 455 | 481 |
445.gobmk | 24 | 788 | 320 | 786 | 320 | 831 | 303 | 24 | 704 | 358 | 695 | 362 | 696 | 362 |
456.hmmer | 24 | 460 | 487 | 469 | 478 | 473 | 473 | 24 | 393 | 570 | 387 | 578 | 389 | 575 |
458.sjeng | 24 | 928 | 313 | 977 | 297 | 934 | 311 | 24 | 916 | 317 | 914 | 318 | 914 | 318 |
462.libquantum | 24 | 409 | 1210 | 409 | 1220 | 412 | 1210 | 24 | 412 | 1210 | 423 | 1180 | 423 | 1180 |
464.h264ref | 24 | 1209 | 439 | 1213 | 438 | 1229 | 432 | 24 | 1141 | 466 | 1170 | 454 | 1184 | 449 |
471.omnetpp | 24 | 686 | 219 | 688 | 218 | 689 | 218 | 24 | 686 | 219 | 688 | 218 | 689 | 218 |
473.astar | 24 | 799 | 211 | 796 | 212 | 797 | 211 | 24 | 640 | 263 | 640 | 263 | 639 | 264 |
483.xalancbmk | 24 | 435 | 380 | 436 | 380 | 435 | 381 | 24 | 418 | 396 | 421 | 393 | 427 | 388 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=10800 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/usr/cpu2006/amd1002-rate-libs-revC/64:/usr/cpu2006/amd1002-rate-libs-revC/32" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-march=barcelona -mso -Ofast -CG:local_sched_alg=1 -INLINE:aggressive=on -IPA:plimit=8000 -IPA:small_pu=100 -HP:bdt=2m:heap=2m |
-march=barcelona -mso -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
