SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

SPARC Enterprise M4000

SPECint®2006 = 14.8

CPU2006 license: 19 Test date: Oct-2010
Test sponsor: Fujitsu Hardware Availability: Dec-2010
Tested by: Fujitsu Software Availability: Sep-2010

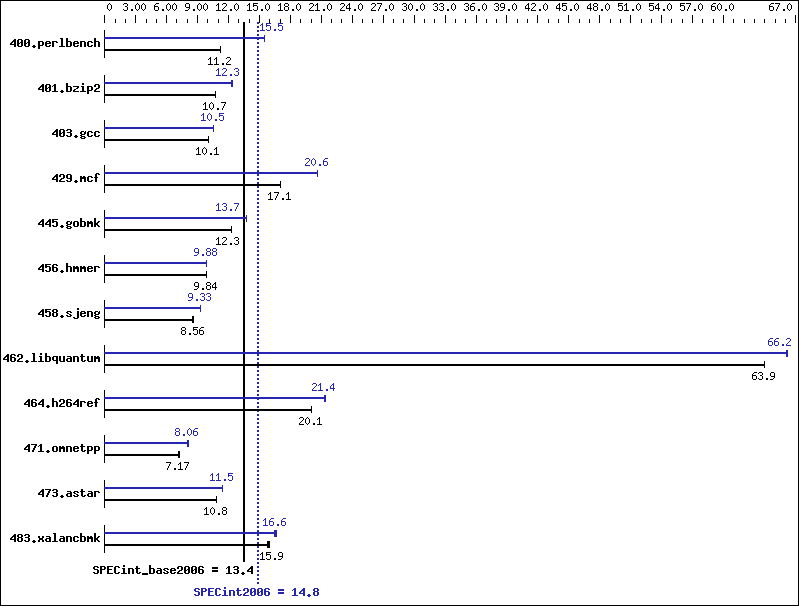

Benchmark results graph
Hardware
CPU Name: SPARC64 VII+
CPU Characteristics:
CPU MHz: 2660
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 2 CPUMs; each CPUM contains 2 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 11 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 128 GB (32 x 4 GB, 8-way interleaved)
Disk Subsystem: 1 x 300 GB 10,000 RPM SAS
Other Hardware: None
Software
Operating System: Oracle Solaris 10 9/10
Compiler: Oracle Solaris Studio 12.2
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 871 11.2  871 11.2  870 11.2  629 15.5  629 15.5  629 15.5
401.bzip2 899 10.7  899 10.7  899 10.7  781 12.4  782 12.3  782 12.3
403.gcc 800 10.1  800 10.1  800 10.1  764 10.5  765 10.5  764 10.5
429.mcf 534 17.1  534 17.1  535 17.1  442 20.6  442 20.6  442 20.6
445.gobmk 856 12.3  856 12.3  856 12.3  763 13.7  763 13.7  763 13.7
456.hmmer 948 9.84 948 9.84 948 9.84 945 9.88 945 9.88 945 9.88
458.sjeng 1415 8.55 1414 8.56 1413 8.56 1297 9.33 1298 9.32 1297 9.33
462.libquantum 324 64.0  324 63.9  324 63.9  313 66.1  313 66.2  313 66.2
464.h264ref 1102 20.1  1102 20.1  1103 20.1  1036 21.4  1036 21.4  1036 21.4
471.omnetpp 874 7.15 863 7.24 871 7.17 775 8.06 776 8.05 771 8.10
473.astar 649 10.8  649 10.8  648 10.8  613 11.5  613 11.5  613 11.5
483.xalancbmk 435 15.9  438 15.8  433 16.0  416 16.6  414 16.7  419 16.5

Compiler Invocation Notes

 Oracle Solaris Studio 12.2 is distributed with mandatory OS patches
  118683-05  119963-20  120753-08
 Oracle Solaris Studio 12.2 and patches are available at
  http://oracle.com/goto/solarisstudio

Submit Notes


 Processes were assigned to specific processors using 'pbind'
 commands.  The config file option 'submit' was used, along
 with a list of processors in the 'BIND' variable, to generate
 the pbind commands.  (For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 8-way interleaved by filling all slots with
 the same capacity DIMMs.

 This result is measured on a SPARC Enterprise M4000 server from
 Fujitsu.  The SPARC Enterprise M4000 server from Oracle and from
 Fujitsu are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -lfast

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xalias_level=std   -xrestrict   -Xc   -xprefetch=no%auto   -xarch=generic   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=strong   -xchip=generic
403.gcc:  -xprofile=tcov:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xO4   -xchip=generic   -xunroll=7   -ll2amm
429.mcf:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch=latx:0.5   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -xchip=generic   -xlinkopt   -xunroll=7   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -Wc,-Qlp-prt=1   -Wc,-Qlp-prwt=3   -lfast
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xrestrict   -xprefetch=latx:0.5   -ll2amm
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xO4   -xlinkopt   -xunroll=2   -ll2amm
462.libquantum:  -fast   -fma=fused   -xpagesize=4M   -xalias_level=std   -xipo=2   -xprefetch=no%auto   -xO4   -xarch=generic   -xcache=generic   -xlinkopt=2   -xunroll=8
464.h264ref:  -xprofile=tcov:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xlinkopt=2   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -lfast
473.astar:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch=no%auto   -xarch=v8plusb   -lfast   -lbsdmalloc
483.xalancbmk:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch=no   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio12.2-SPARC.xml.
