SPEC® CFP2006 Result

IBM Corporation

IBM BladeCenter HS22 (Intel Xeon E5503)

SPECfp®2006 = 25.7

SPECfp_base2006 = 23.9

CPU2006 license:	11	Test date:	Nov-2010
Test sponsor:	IBM Corporation	Hardware Availability:	Mar-2010
Tested by:	IBM Corporation	Software Availability:	Jan-2010

Hardware
CPU Name:	Intel Xeon E5503
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (12 x 2 GB 2Rx8 PC3-10600R, ECC, running at 800 MHz and CL6)
Disk Subsystem:	1 x 73 GB SATA, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064
Auto Parallel:	Yes
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

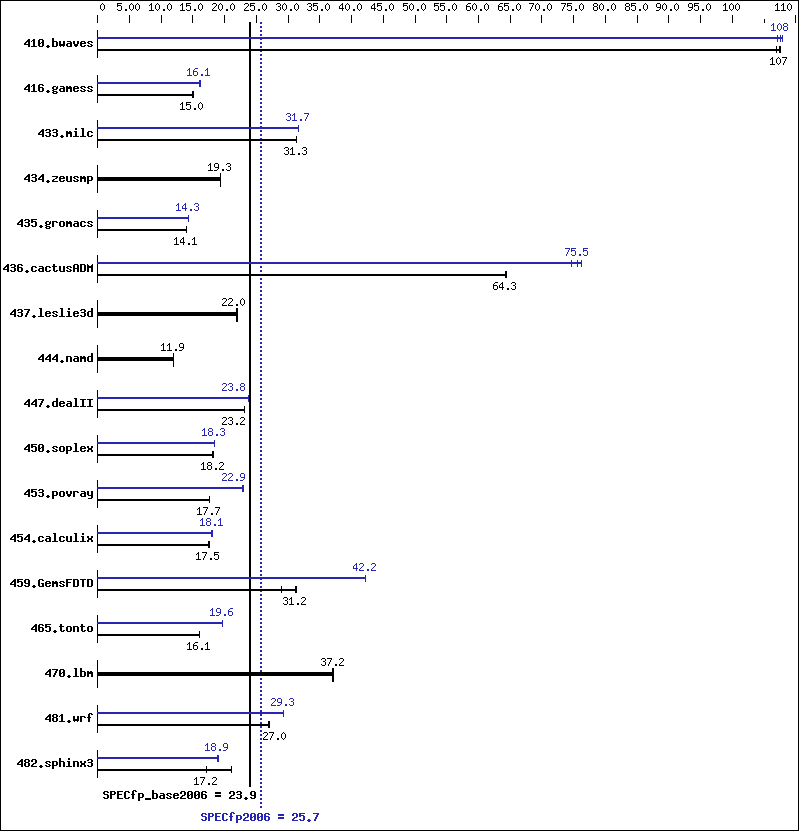

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	127	107	126	107	126	108	126	108	127	107	126	108
416.gamess	1304	15.0	1306	15.0	1307	15.0	1218	16.1	1214	16.1	1217	16.1
433.milc	293	31.3	293	31.3	293	31.3	290	31.7	290	31.7	290	31.7
434.zeusmp	472	19.3	470	19.4	470	19.3	472	19.3	470	19.4	470	19.3
435.gromacs	508	14.1	508	14.0	508	14.1	499	14.3	502	14.2	499	14.3
436.cactusADM	186	64.3	186	64.3	186	64.4	160	74.7	158	75.5	157	76.3
437.leslie3d	428	22.0	429	21.9	428	22.0	428	22.0	429	21.9	428	22.0
444.namd	673	11.9	672	11.9	673	11.9	673	11.9	672	11.9	673	11.9
447.dealII	493	23.2	493	23.2	493	23.2	481	23.8	481	23.8	481	23.8
450.soplex	459	18.2	460	18.1	458	18.2	455	18.3	455	18.3	454	18.4
453.povray	301	17.7	303	17.5	301	17.7	231	23.0	233	22.8	232	22.9
454.calculix	470	17.6	471	17.5	472	17.5	455	18.1	454	18.2	462	17.8
459.GemsFDTD	366	29.0	340	31.2	338	31.4	251	42.2	251	42.2	252	42.1
465.tonto	613	16.1	613	16.1	614	16.0	502	19.6	502	19.6	501	19.6
470.lbm	371	37.0	370	37.2	369	37.2	371	37.0	370	37.2	369	37.2
481.wrf	414	27.0	413	27.0	413	27.1	381	29.3	382	29.3	381	29.3
482.sphinx3	926	21.0	1133	17.2	1133	17.2	1025	19.0	1029	18.9	1032	18.9

Platform Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

General Notes

 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
 Power C-states enabled in BIOS
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter
 KMP_STACKSIZE set to 200M

Base Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -nofor_main
436.cactusADM:	-DSPEC_CPU_LP64 -nofor_main
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -nofor_main
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Peak Compiler Invocation

C benchmarks:

icc -m64

C++ benchmarks:

icpc -m64

Fortran benchmarks:

ifort -m64

Benchmarks using both Fortran and C:

icc -m64 ifort -m64

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias
470.lbm:	basepeak = yes
482.sphinx3:	-xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -unroll2

C++ benchmarks:

444.namd:	basepeak = yes
447.dealII:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -auto-ilp32
450.soplex:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -auto-ilp32
453.povray:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias

Fortran benchmarks:

410.bwaves:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel
416.gamess:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep-
434.zeusmp:	basepeak = yes
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel
465.tonto:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4

Benchmarks using both Fortran and C:

435.gromacs:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32
436.cactusADM:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32
454.calculix:	-xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32
481.wrf:	Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100929.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100929.00.xml.
