| CPU2006 license: | 11 | Test date: | Nov-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Mar-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5503 |
| CPU Characteristics: | |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12 x 4 GB 2Rx8 PC3-10600R, ECC, running at 800 MHz and CL6) |
| Disk Subsystem: | 1 x 73 GB SATA, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

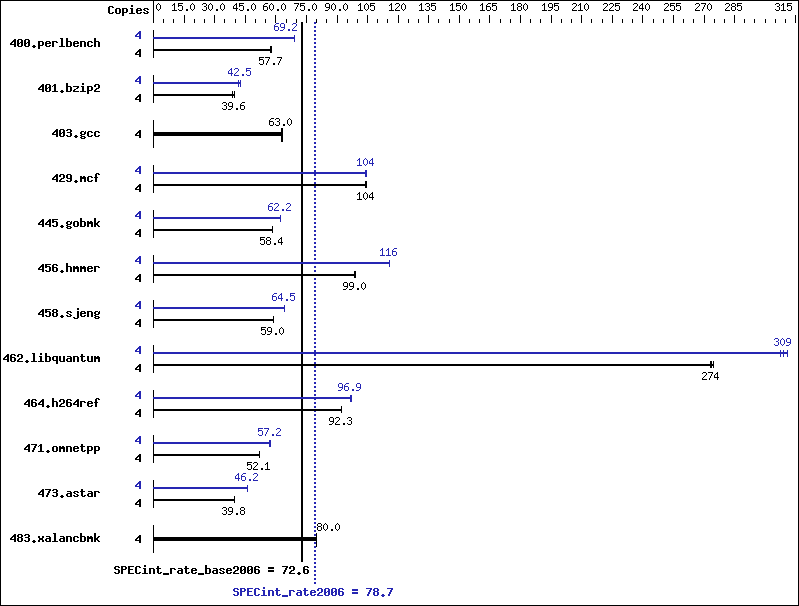

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 673 | 58.1 | 679 | 57.5 | 677 | 57.7 | 4 | 564 | 69.3 | 565 | 69.2 | 564 | 69.2 |
| 401.bzip2 | 4 | 993 | 38.9 | 974 | 39.6 | 973 | 39.7 | 4 | 908 | 42.5 | 926 | 41.7 | 908 | 42.5 |
| 403.gcc | 4 | 511 | 63.0 | 512 | 62.9 | 510 | 63.2 | 4 | 511 | 63.0 | 512 | 62.9 | 510 | 63.2 |
| 429.mcf | 4 | 351 | 104 | 350 | 104 | 350 | 104 | 4 | 349 | 104 | 350 | 104 | 350 | 104 |
| 445.gobmk | 4 | 718 | 58.4 | 716 | 58.6 | 718 | 58.4 | 4 | 675 | 62.2 | 676 | 62.1 | 674 | 62.3 |
| 456.hmmer | 4 | 376 | 99.2 | 379 | 98.4 | 377 | 99.0 | 4 | 322 | 116 | 322 | 116 | 322 | 116 |
| 458.sjeng | 4 | 822 | 58.9 | 821 | 59.0 | 821 | 59.0 | 4 | 751 | 64.5 | 751 | 64.5 | 751 | 64.4 |
| 462.libquantum | 4 | 304 | 273 | 302 | 274 | 303 | 274 | 4 | 268 | 309 | 269 | 308 | 267 | 311 |
| 464.h264ref | 4 | 959 | 92.3 | 960 | 92.2 | 958 | 92.4 | 4 | 915 | 96.8 | 913 | 97.0 | 914 | 96.9 |
| 471.omnetpp | 4 | 479 | 52.1 | 480 | 52.1 | 480 | 52.1 | 4 | 437 | 57.2 | 438 | 57.1 | 437 | 57.2 |
| 473.astar | 4 | 706 | 39.8 | 706 | 39.8 | 705 | 39.8 | 4 | 608 | 46.2 | 611 | 46.0 | 608 | 46.2 |
| 483.xalancbmk | 4 | 345 | 80.0 | 345 | 80.0 | 345 | 80.1 | 4 | 345 | 80.0 | 345 | 80.0 | 345 | 80.1 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 Power C-states enabled in BIOS
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
