| CPU2006 license: | 11 | Test date: | Sep-2010 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Nov-2010 |
| Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3480 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.73 GHz |
| CPU MHz: | 3067 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4 x 4 GB 2Rx4 PC3-10600R-9, ECC) |
| Disk Subsystem: | 1 x 250 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux Enterprise Server 11 (x86_64) SP1, Kernel 2.6.32.12-0.7-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

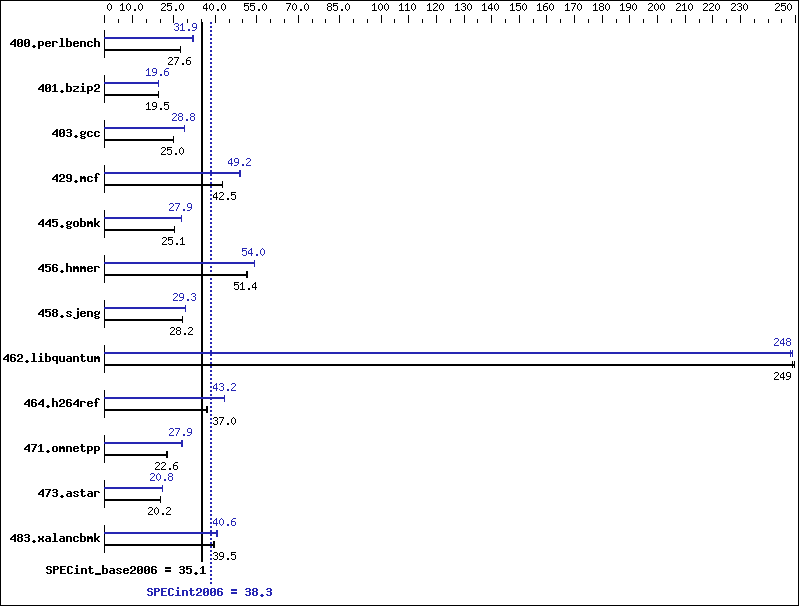

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 355 | 27.5 | 354 | 27.6 | 354 | 27.6 | 306 | 32.0 | 306 | 31.9 | 306 | 31.9 |
| 401.bzip2 | 495 | 19.5 | 496 | 19.5 | 495 | 19.5 | 493 | 19.6 | 493 | 19.6 | 493 | 19.6 |
| 403.gcc | 322 | 25.0 | 322 | 25.0 | 324 | 24.9 | 279 | 28.8 | 280 | 28.8 | 279 | 28.8 |
| 429.mcf | 214 | 42.5 | 215 | 42.5 | 214 | 42.5 | 185 | 49.2 | 187 | 48.8 | 185 | 49.2 |
| 445.gobmk | 418 | 25.1 | 418 | 25.1 | 418 | 25.1 | 376 | 27.9 | 376 | 27.9 | 376 | 27.9 |
| 456.hmmer | 181 | 51.4 | 180 | 51.7 | 182 | 51.3 | 173 | 54.0 | 173 | 54.1 | 173 | 54.0 |
| 458.sjeng | 429 | 28.2 | 429 | 28.2 | 429 | 28.2 | 413 | 29.3 | 412 | 29.3 | 413 | 29.3 |
| 462.libquantum | 83.3 | 249 | 83.1 | 249 | 83.3 | 249 | 83.3 | 249 | 83.5 | 248 | 83.5 | 248 |
| 464.h264ref | 598 | 37.0 | 599 | 37.0 | 598 | 37.0 | 512 | 43.2 | 513 | 43.2 | 512 | 43.2 |
| 471.omnetpp | 277 | 22.6 | 277 | 22.6 | 278 | 22.5 | 224 | 27.9 | 224 | 27.9 | 224 | 28.0 |
| 473.astar | 348 | 20.2 | 347 | 20.2 | 348 | 20.2 | 337 | 20.8 | 337 | 20.8 | 337 | 20.8 |
| 483.xalancbmk | 175 | 39.5 | 174 | 39.6 | 175 | 39.4 | 170 | 40.7 | 170 | 40.6 | 170 | 40.6 |
Platform Notes
BIOS Settings: Turbo Mode Enable Turbo Boost set to Traditional CPU C State Enable
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
