SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 795 (4.25 GHz, 128 core, SLES)

CPU2006 license: 11 Test date: Aug-2010
Test sponsor: IBM Corporation Hardware Availability: Sep-2010
Tested by: IBM Corporation Software Availability: Aug-2010

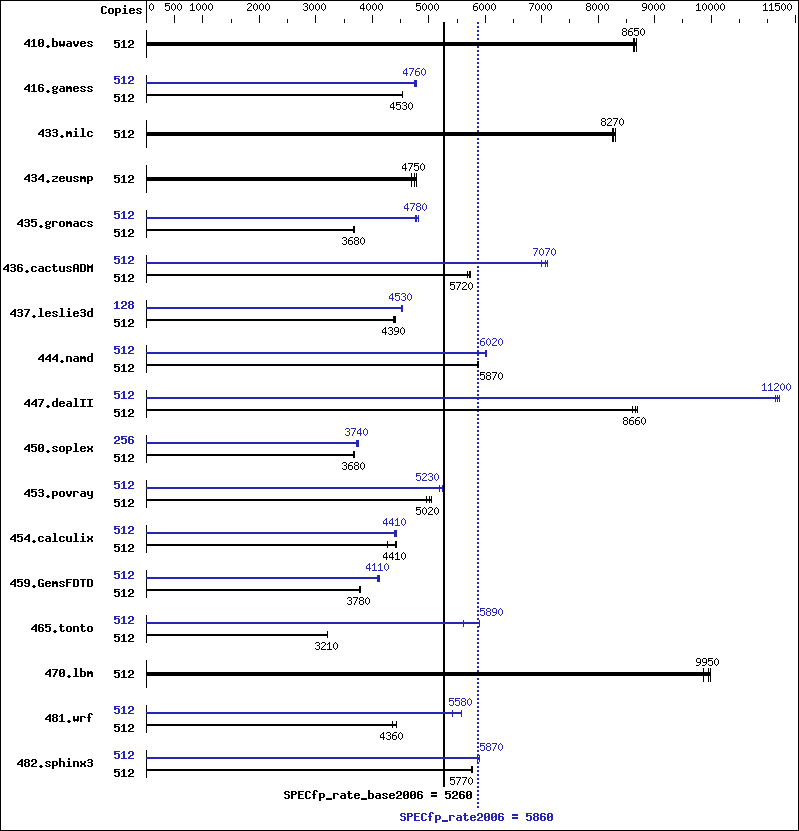

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: TurboCore mode
CPU MHz: 4256
FPU: Integrated
CPU(s) enabled: 128 cores, 32 chips, 4 cores/chip, 4 threads/core
CPU(s) orderable: 48 - 128 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: 16 MB I+D on chip per chip
Memory: 2 TB (256x8 GB) DDR3 1066 MHz
Disk Subsystem: 17x146.8 GB Raid0 SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 SP1
(ppc64), Kernel 2.6.32.12-0.7-ppc64
Compiler: IBM XL C/C++ for Linux, V11.1
IBM XL Fortran for Linux, V13.1
Auto Parallel: No
File System: xfs
System State: Run level 5 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.5.0-3
-MicroQuill SmartHeap 9
-Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 512 802 8680 804 8650 806 8630 512 802 8680 804 8650 806 8630
416.gamess 512 2210 4540 2213 4530 2212 4530 512 2105 4760 2100 4770 2110 4750
433.milc 512 566 8300 570 8250 568 8270 512 566 8300 570 8250 568 8270
434.zeusmp 512 973 4790 993 4690 981 4750 512 973 4790 993 4690 981 4750
435.gromacs 512 994 3680 996 3670 994 3680 512 767 4760 757 4830 764 4780
436.cactusADM 512 1075 5690 1069 5720 1067 5740 512 866 7070 874 7000 861 7110
437.leslie3d 512 1091 4410 1099 4380 1096 4390 128 267 4510 265 4530 266 4530
444.namd 512 699 5870 701 5860 699 5880 512 682 6020 681 6030 683 6010
447.dealII 512 674 8690 680 8610 676 8660 512 526 11100 523 11200 524 11200
450.soplex 512 1161 3680 1160 3680 1162 3670 256 569 3750 570 3740 573 3730
453.povray 512 540 5040 548 4970 543 5020 512 524 5200 520 5230 519 5240
454.calculix 512 989 4270 955 4420 957 4410 512 961 4400 953 4430 958 4410
459.GemsFDTD 512 1431 3800 1437 3780 1443 3760 512 1322 4110 1318 4120 1330 4080
465.tonto 512 1571 3210 1571 3210 1572 3200 512 897 5620 855 5890 855 5900
470.lbm 512 713 9860 707 9950 705 9980 512 713 9860 707 9950 705 9980
481.wrf 512 1312 4360 1294 4420 1312 4360 512 1055 5420 1025 5580 1026 5580
482.sphinx3 512 1730 5770 1730 5770 1732 5760 512 1700 5870 1701 5870 1694 5890

Peak Tuning Notes

 fdpr binary optimization tool used for:
 433.milc 435.gromacs 436.cactusADM 450.soplex 482.sphinx3
      with options -O4 -nodp
 434.zeusmp
      with options -O4 -vrox -nodp
 437.leslie3d 444.namd
      with options -O3 -lu -1 -nodp -sdp 9
 465.tonto
      with options -O4

Submit Notes

The config file option 'submit' was used.
Benchmarks bound to a processor using numactl on the submit command.

Operating System Notes

ulimit -s (stack) set to 1048576.
Large pages reserved as follows by root user:
      echo 34304 > /proc/sys/vm/nr_hugepages
The following environment varibles were set before the runspec command:
      export HUGETLB_VERBOSE=0
      export HUGETLB_MORECORE=yes
      export HUGETLB_ELFMAP=W
      export XLFRTEOPTS=intrinthds=1

General Notes

 447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.
The Apache C++ Standard Library V4.2.1 was installed from
http://stdcxx.apache.org/download.html using:
    gmake BUILDTYPE=8d CONFIG=gcc.config

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs

C++ benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -qrtti   -lhugetlbfs

Fortran benchmarks:

 -O5   -qarch=pwr7   -qtune=pwr7   -qsmallstack=dynlenonheap   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr7   -qtune=pwr7   -qsmallstack=dynlenonheap   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -DSPEC_CPU_LP64   -qfixed   -qextname
437.leslie3d:  -qfixed
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs

C++ benchmarks:

444.namd:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -lhugetlbfs
447.dealII:  -O4   -qarch=pwr7   -qtune=pwr7   -qrtti   -qcpp_stdinc=/root/stdcxx421/include/ansi:/root/stdcxx421/include   -lsmartheap   -lhugetlbfs   -L/root/stdcxx421/lib   -R/root/stdcxx421/lib   -lstd8d
450.soplex:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qtune=auto   -qarch=pwr5   -lhugetlbfs
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -q64   -lsmartheap64

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qalias=nostd   -lhugetlbfs
434.zeusmp:  basepeak = yes
437.leslie3d:  -Wl,-q   -O5   -qarch=pwr7   -qtune=pwr7   -q64   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
459.GemsFDTD:  -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -qsimd   -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -lhugetlbfs
436.cactusADM:  -Wl,-q   -O4   -qarch=pwr7   -qtune=pwr7   -qsimd   -qnostrict   -q64   -lhugetlbfs
454.calculix:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr7   -qtune=pwr7   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-align
481.wrf:  -O3   -qarch=pwr7   -qtune=pwr7   -q64   -lhugetlbfs

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100901.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100901.xml.
