CPU2006 license: | 19 | Test date: | Sep-2010 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Aug-2010 |
Tested by: | Fujitsu | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5667 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
CPU MHz: | 3067 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
Disk Subsystem: | 1 x SAS, 300 GB, 10000 RPM |
Other Hardware: | -- |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) with SP1, Kernel 2.6.32.12-0.7-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

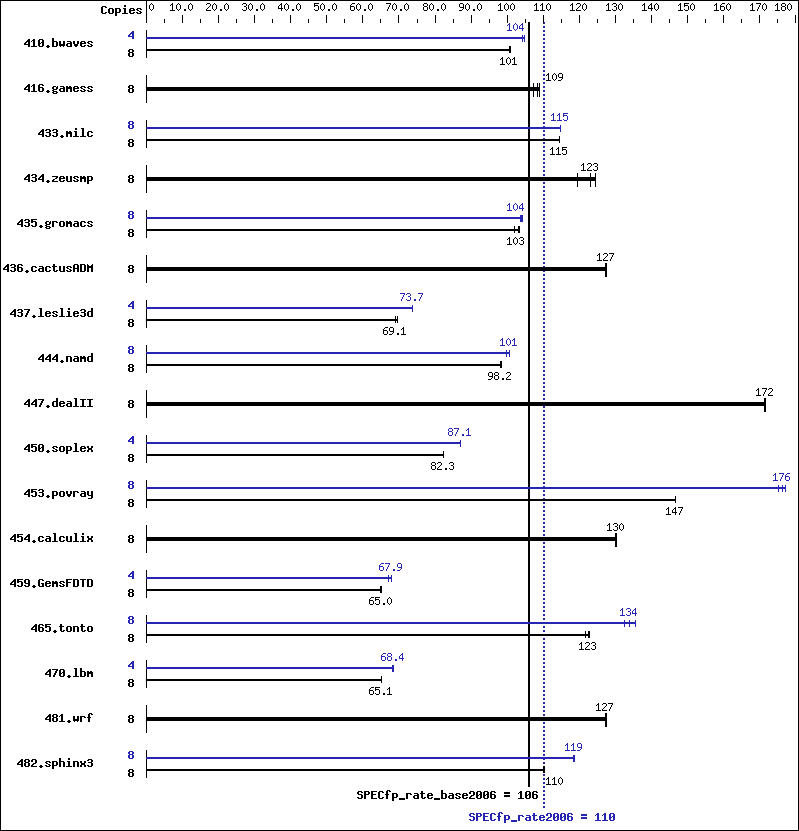

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 1076 | 101 | 1080 | 101 | 1081 | 101 | 4 | 521 | 104 | 519 | 105 | 521 | 104 |
416.gamess | 8 | 1444 | 109 | 1460 | 107 | 1436 | 109 | 8 | 1444 | 109 | 1460 | 107 | 1436 | 109 |
433.milc | 8 | 641 | 115 | 641 | 115 | 641 | 115 | 8 | 639 | 115 | 639 | 115 | 639 | 115 |
434.zeusmp | 8 | 585 | 124 | 609 | 120 | 592 | 123 | 8 | 585 | 124 | 609 | 120 | 592 | 123 |
435.gromacs | 8 | 555 | 103 | 560 | 102 | 552 | 103 | 8 | 551 | 104 | 547 | 104 | 550 | 104 |
436.cactusADM | 8 | 750 | 127 | 751 | 127 | 750 | 127 | 8 | 750 | 127 | 751 | 127 | 750 | 127 |
437.leslie3d | 8 | 1088 | 69.1 | 1082 | 69.5 | 1088 | 69.1 | 4 | 510 | 73.7 | 510 | 73.7 | 510 | 73.8 |
444.namd | 8 | 653 | 98.2 | 651 | 98.6 | 654 | 98.1 | 8 | 638 | 101 | 637 | 101 | 643 | 99.8 |
447.dealII | 8 | 534 | 171 | 533 | 172 | 533 | 172 | 8 | 534 | 171 | 533 | 172 | 533 | 172 |
450.soplex | 8 | 810 | 82.3 | 811 | 82.3 | 810 | 82.4 | 4 | 384 | 87.0 | 383 | 87.2 | 383 | 87.1 |
453.povray | 8 | 290 | 147 | 290 | 147 | 290 | 147 | 8 | 240 | 177 | 241 | 176 | 243 | 175 |
454.calculix | 8 | 507 | 130 | 507 | 130 | 507 | 130 | 8 | 507 | 130 | 507 | 130 | 507 | 130 |
459.GemsFDTD | 8 | 1304 | 65.1 | 1307 | 64.9 | 1305 | 65.0 | 4 | 632 | 67.1 | 625 | 67.9 | 625 | 67.9 |
465.tonto | 8 | 642 | 123 | 646 | 122 | 642 | 123 | 8 | 594 | 132 | 588 | 134 | 581 | 136 |
470.lbm | 8 | 1689 | 65.1 | 1689 | 65.1 | 1689 | 65.1 | 4 | 804 | 68.3 | 804 | 68.4 | 803 | 68.4 |
481.wrf | 8 | 703 | 127 | 701 | 127 | 703 | 127 | 8 | 703 | 127 | 701 | 127 | 703 | 127 |
482.sphinx3 | 8 | 1413 | 110 | 1414 | 110 | 1415 | 110 | 8 | 1313 | 119 | 1314 | 119 | 1317 | 118 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
BIOS configuration: Data Reuse Optimization = Disable Performance/Power Setting = Traditional
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | basepeak = yes |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | basepeak = yes |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
