| CPU2006 license: | 19 | Test date: | Aug-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5640 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (12x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
| Disk Subsystem: | 1 x SATA, 160 GB, 5400 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

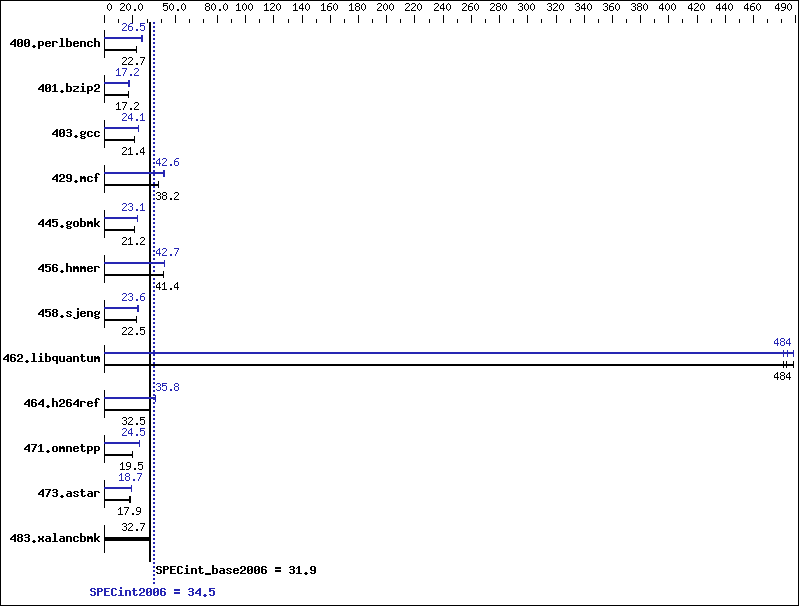

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 430 | 22.7 | 429 | 22.8 | 430 | 22.7 | 369 | 26.5 | 369 | 26.5 | 370 | 26.4 |
| 401.bzip2 | 561 | 17.2 | 562 | 17.2 | 561 | 17.2 | 562 | 17.2 | 562 | 17.2 | 561 | 17.2 |
| 403.gcc | 377 | 21.4 | 377 | 21.4 | 377 | 21.4 | 333 | 24.1 | 334 | 24.1 | 336 | 23.9 |
| 429.mcf | 239 | 38.2 | 239 | 38.2 | 238 | 38.3 | 218 | 41.9 | 214 | 42.6 | 214 | 42.7 |
| 445.gobmk | 496 | 21.2 | 496 | 21.2 | 496 | 21.1 | 457 | 23.0 | 454 | 23.1 | 452 | 23.2 |
| 456.hmmer | 225 | 41.5 | 226 | 41.3 | 225 | 41.4 | 218 | 42.7 | 219 | 42.7 | 218 | 42.7 |
| 458.sjeng | 538 | 22.5 | 538 | 22.5 | 539 | 22.5 | 513 | 23.6 | 513 | 23.6 | 514 | 23.6 |
| 462.libquantum | 42.4 | 488 | 43.0 | 481 | 42.8 | 484 | 42.4 | 488 | 43.0 | 482 | 42.8 | 484 |
| 464.h264ref | 689 | 32.1 | 681 | 32.5 | 682 | 32.5 | 619 | 35.8 | 619 | 35.8 | 619 | 35.8 |
| 471.omnetpp | 321 | 19.5 | 320 | 19.5 | 320 | 19.5 | 255 | 24.5 | 255 | 24.5 | 255 | 24.5 |
| 473.astar | 392 | 17.9 | 391 | 18.0 | 397 | 17.7 | 376 | 18.7 | 376 | 18.7 | 377 | 18.6 |
| 483.xalancbmk | 211 | 32.7 | 211 | 32.6 | 211 | 32.7 | 211 | 32.7 | 211 | 32.6 | 211 | 32.7 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
The system automatically configures the memory to run at 1067 MHz. BIOS configuration: Data Reuse Optimization = Disable Intel HT Technology = Disable Performance/Power Setting = Traditional
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
