CPU2006 license: | 11 | Test date: | Aug-2010 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2010 |
Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5609 |
CPU Characteristics: | |
CPU MHz: | 1867 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (12 x 2 GB PC3-10600R CL9, 2 Rank, running at 1066 MHz) |
Disk Subsystem: | 2 x 50 GB SATA, SSD, RAID 0 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

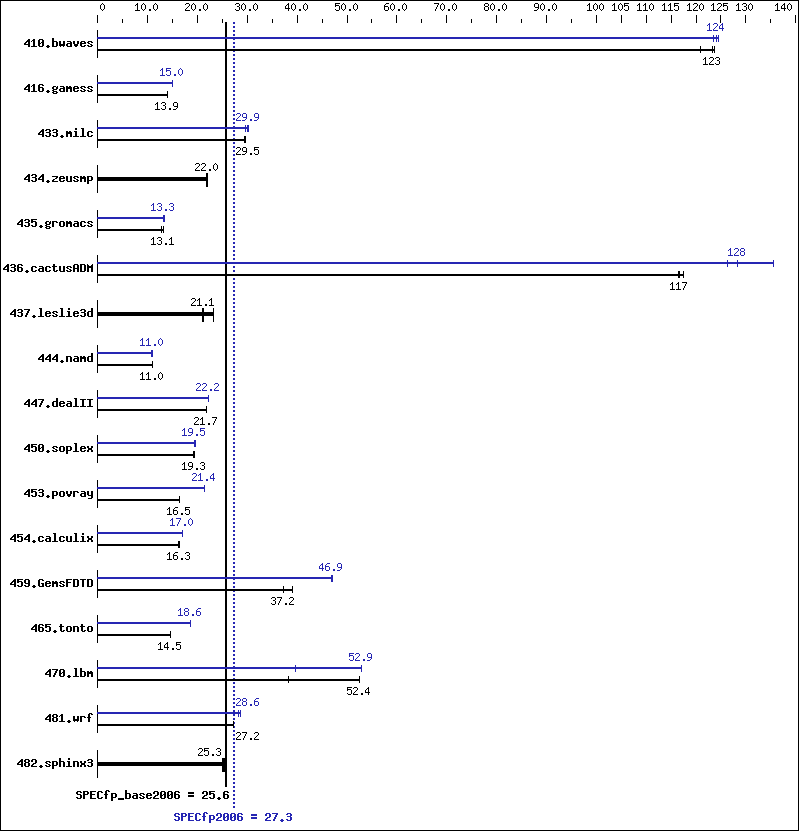

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 112 | 121 | 110 | 123 | 110 | 124 | 110 | 123 | 109 | 124 | 109 | 125 |
416.gamess | 1404 | 13.9 | 1406 | 13.9 | 1407 | 13.9 | 1304 | 15.0 | 1303 | 15.0 | 1305 | 15.0 |
433.milc | 313 | 29.3 | 311 | 29.5 | 310 | 29.6 | 307 | 29.9 | 304 | 30.2 | 309 | 29.7 |
434.zeusmp | 416 | 21.9 | 413 | 22.1 | 413 | 22.0 | 416 | 21.9 | 413 | 22.1 | 413 | 22.0 |
435.gromacs | 555 | 12.9 | 545 | 13.1 | 545 | 13.1 | 539 | 13.2 | 537 | 13.3 | 538 | 13.3 |
436.cactusADM | 102 | 117 | 102 | 117 | 103 | 116 | 88.2 | 136 | 94.6 | 126 | 93.2 | 128 |
437.leslie3d | 446 | 21.1 | 405 | 23.2 | 445 | 21.1 | 446 | 21.1 | 405 | 23.2 | 445 | 21.1 |
444.namd | 727 | 11.0 | 727 | 11.0 | 726 | 11.0 | 730 | 11.0 | 731 | 11.0 | 742 | 10.8 |
447.dealII | 526 | 21.8 | 526 | 21.7 | 526 | 21.7 | 515 | 22.2 | 517 | 22.1 | 514 | 22.2 |
450.soplex | 433 | 19.3 | 432 | 19.3 | 431 | 19.3 | 427 | 19.5 | 428 | 19.5 | 429 | 19.4 |
453.povray | 323 | 16.5 | 323 | 16.5 | 324 | 16.4 | 248 | 21.5 | 249 | 21.4 | 248 | 21.4 |
454.calculix | 506 | 16.3 | 506 | 16.3 | 507 | 16.3 | 487 | 16.9 | 485 | 17.0 | 487 | 17.0 |
459.GemsFDTD | 271 | 39.1 | 285 | 37.2 | 285 | 37.2 | 227 | 46.8 | 226 | 46.9 | 226 | 47.0 |
465.tonto | 677 | 14.5 | 676 | 14.6 | 677 | 14.5 | 532 | 18.5 | 529 | 18.6 | 529 | 18.6 |
470.lbm | 262 | 52.4 | 262 | 52.4 | 359 | 38.3 | 260 | 52.9 | 260 | 52.9 | 346 | 39.7 |
481.wrf | 411 | 27.2 | 411 | 27.2 | 412 | 27.1 | 396 | 28.2 | 391 | 28.6 | 390 | 28.6 |
482.sphinx3 | 766 | 25.4 | 772 | 25.3 | 777 | 25.1 | 766 | 25.4 | 772 | 25.3 | 777 | 25.1 |
Power C-states enabled Demand Scrub disabled
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
Same as Base Portability Flags
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -parallel -ansi-alias -auto-ilp32 |
482.sphinx3: | basepeak = yes |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -auto-ilp32 |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -auto-ilp32 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -inline-calloc -opt-malloc-options=3 -auto -unroll4 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | Same as 454.calculix |
