| CPU2006 license: | 97 | Test date: | Jul-2010 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Aug-2010 |
| Tested by: | Acer Incorporated | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5502 |
| CPU Characteristics: | |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4 GB DDR3-1333 RDIMM, ECC, running at 800MHz) |
| Disk Subsystem: | 1 x 1000 GB SATA II, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

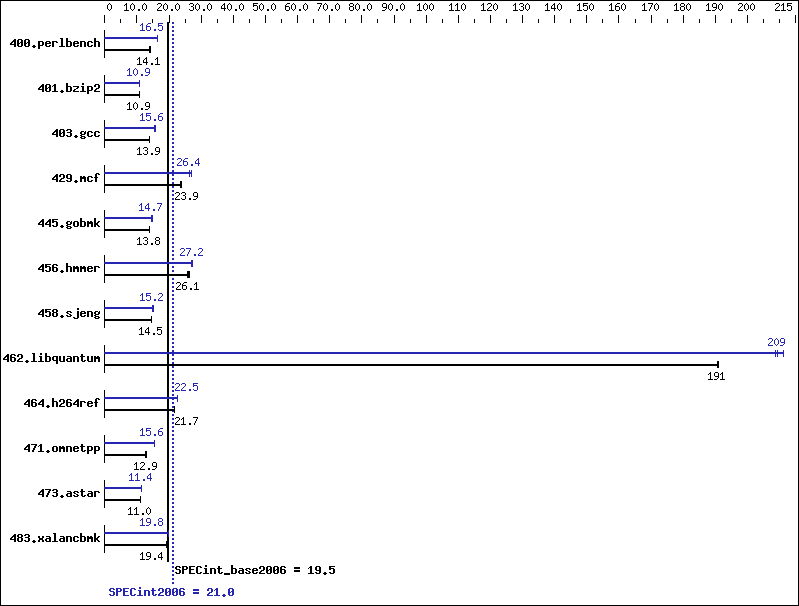

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 693 | 14.1 | 694 | 14.1 | 699 | 14.0 | 593 | 16.5 | 593 | 16.5 | 593 | 16.5 |
| 401.bzip2 | 884 | 10.9 | 888 | 10.9 | 883 | 10.9 | 900 | 10.7 | 883 | 10.9 | 886 | 10.9 |
| 403.gcc | 580 | 13.9 | 580 | 13.9 | 580 | 13.9 | 514 | 15.7 | 518 | 15.5 | 516 | 15.6 |
| 429.mcf | 382 | 23.9 | 382 | 23.9 | 385 | 23.7 | 336 | 27.1 | 346 | 26.3 | 346 | 26.4 |
| 445.gobmk | 759 | 13.8 | 760 | 13.8 | 762 | 13.8 | 715 | 14.7 | 713 | 14.7 | 715 | 14.7 |
| 456.hmmer | 358 | 26.1 | 363 | 25.7 | 354 | 26.3 | 344 | 27.1 | 343 | 27.2 | 343 | 27.2 |
| 458.sjeng | 838 | 14.4 | 837 | 14.5 | 837 | 14.5 | 796 | 15.2 | 796 | 15.2 | 809 | 15.0 |
| 462.libquantum | 109 | 191 | 108 | 191 | 109 | 191 | 99.0 | 209 | 99.2 | 209 | 98.0 | 211 |
| 464.h264ref | 1016 | 21.8 | 1019 | 21.7 | 1019 | 21.7 | 983 | 22.5 | 983 | 22.5 | 976 | 22.7 |
| 471.omnetpp | 485 | 12.9 | 487 | 12.8 | 486 | 12.9 | 402 | 15.5 | 402 | 15.6 | 402 | 15.6 |
| 473.astar | 640 | 11.0 | 638 | 11.0 | 638 | 11.0 | 617 | 11.4 | 618 | 11.4 | 619 | 11.3 |
| 483.xalancbmk | 354 | 19.5 | 356 | 19.4 | 359 | 19.2 | 349 | 19.8 | 350 | 19.7 | 348 | 19.8 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
General Notes
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 The Acer AW2000h-AW170h F1, Gateway GW2000h-GW170h F1, Acer AW2000ht-AW170ht F1 and Gateway GW2000ht-GW170ht F1 are electronically equivalent. This result was measured on Gateway GW2000ht-GW170ht F1.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
